Summary of Contents for Reavon UBR-X100

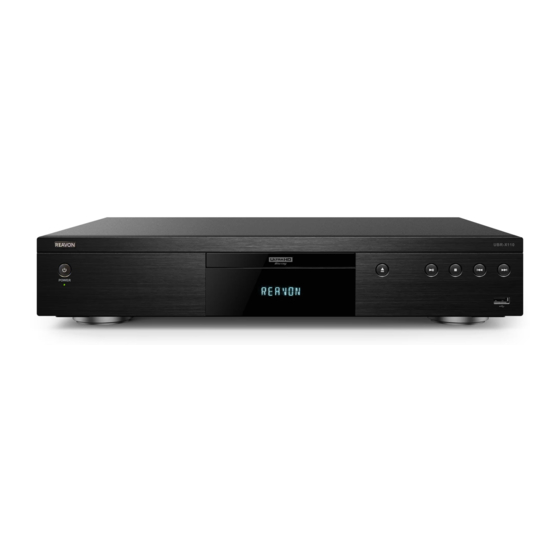

- Page 1 USER MANUAL READ CAREFULLY BEFORE OPERATION ULTRA HD Blu-ray Disc Players UBR-X100 / UBR-X200...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATIONS ..........1 Important Safety Instructions ................... 1 Precautions ........................ 2 Trademarks ........................ 3 Compatible Disc Types ....................3 Discs that cannot be played ................4 Notes about BD-ROM compatibility ..............4 Disc care and handling ..................4 Cinavia Notice ...................... - Page 3 Subtitle Shift ......................16 Repeat Playback ...................... 17 Repeat a Selected Section ..................17 Shuffle and Random Playback ................. 17 Playback by Chapter or Track Number ..............18 Memory and Automatic Resume ................18 Pure Audio Mode ...................... 18 MEDIA FILE PLAYBACK ............19 Playback from a USB Flash Drive ................
-
Page 4: Important Informations
IMPORTANT INFORMATION CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. CAUTION: TO REDUCE THE RISK OF THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS ELECTRIC SHOCK, DO NOT REMOVE COVER OR ADJUSTMENTS OR PERFORMANCE OF (OR BACK). -
Page 5: Precautions
Users should contact either the retailer where they purchased this product, or REAVON for details of where and how they can arrange for environmentally safe recycling. -
Page 6: Trademarks
I M P O R T A N T I N F O R M A T I O N Trademarks • “ULTRA HD Blu-ray”, “Blu-ray Disc”, “Blu-ray 3D”, “BONUSVIEW” and “BD-Live” are trademarks of Blu- ray Disc Association. • For DTS patents, see http://patents.dts.com. -
Page 7: Discs That Cannot Be Played
It is possible that a Blu-ray Disc manufactured after the player uses new features of the Blu-ray Disc specifications. To ensure the best possible viewing experience, the player may need a firmware or software update from time to time. Please visit REAVON’s web site www.reavon.com to check if updates are available. -
Page 8: Region Management Information
BD-Video: Blu-Ray Discs with marks containing the region code B. DVD-Video: DVDs with marks containing the region code 2 and ALL. Accessories Please check that the following parts are included in your UBR-X100 / X200 package : User Manual Power Cable, about 4.5 feet... -
Page 9: Common Connection Methods
Some receivers contain a mixture of HDMI 2.0 and HDMI 1.4 ports. In order to view 4K UHD content, ensure that you are connecting the UBR-X100 / X200’s HDMI OUT (Main) output into a HDMI 2.0 and HDCP 2.2 compliant input of the receiver. -
Page 10: Connecting To A Tv Via Hdmi
• In order to play 4K UHD content, you must connect the UBR-X100 / X200’s HDMI OUT (Main) output into an HDMI 2.0 and HDCP 2.2 compliant input of the 4K UHD TV. -
Page 11: Connecting To A Stereo Audio System Via Rca-Style Cables (Ubr-X200 Only)
Connecting to a Stereo Audio System via RCA-style Cables (UBR-X200 only) • If your audio system offers only stereo audio inputs, or if you would like to connect a dedicated stereo audio system in addition to the surround audio system which is already connected to the HDMI, coaxial or optical outputs, you can connect the dedicated stereo audio system to the STEREO AUDIO OUT terminals of the player.(R, L) •... -
Page 12: Connecting To An A/V Receiver Or Amplifier Via S/Pdif (Coaxial / Optical)
• If the A/V receiver or amplifier only has 5.1ch audio inputs, you can omit the SBL (Surround Back Left) and SBR (Surround Back Right) outputs. In the Setup Menu, set the Down Mix Mode to 5.x in the Speaker Setting section of the Audio section (see page 30). •... -
Page 13: Connecting To The Internet
Connecting to the Internet The UBR-X100 / 200 players can play audio, video and photos via your home network. This feature supports DLNA and SMB/CIFS protocols (Feature under development). The UBR-X100 / 200 players also support the BD-Live feature offered on some Blu-ray Disc titles. BD-Live offers extra downloadable content and additional online interactive programs. -
Page 14: Basic Operations
BASIC OPERATIONS Disc Playback 1． Press the POWER button to turn on the player. 2． Press the OPEN/CLOSE button to eject the disc tray. 3． Place the disc with the label side facing up and the recorded side facing down. 4．... -
Page 15: Fast Forward And Reverse
2. While a DVD or Blu-ray Disc is paused, pressing the PREV or NEXT button moves back or forward the video frame-by-frame. 3. Pressing the PLAY button resumes normal playback. NOTE • UBR-X100 / X200 players don’t support reverse video frame-by-frame or slow playback while a 4K UHD Blu-ray Disc is paused. -
Page 16: Blu-Ray Disc Menu Navigation
Blu-ray Disc Menu Navigation 1. Blu-ray Discs usually contain a Top Menu and a Pop-up Menu. The Top Menu normally appears at the beginning of playback, after the previews and copyright messages. The Pop-up Menu can be accessed during the movie without interrupting playback. 2. -
Page 17: Volume Control
Volume Control 1. On the UBR-X200, the volume control only affects the analogue audio output. It does not apply to digital audio output (HDMI, Coaxial and Optical) either in raw bitstream format or in PCM format. 2. The VOL +/- buttons on the player’s remote control are provided as an alternative way of controlling the audio volume. -
Page 18: Bd-Live
BD-Live Some Blu-ray Disc titles are released with the BD-Live feature. BD-Live offers extra downloadable content and additional online interactive programs. BD-Live content varies by disc and studio, and may include additional subtitles, commentaries, preview trailers, games, and online chat. A Broadband internet connection is required to enjoy BD-Live content. Depending on how the studios organize their BD-Live content, some Blu-ray Discs may start downloading BD- Live content when playback starts, have BD-Live selection on the main menu, show a prompt asking whether you would like to start downloading, or ask you to sign up for a membership or account. -
Page 19: Advanced Operations
ADVANCED OPERATIONS Zoom Control This feature zooms in / out of the displayed frame and also changes the aspect ratio (image width vs. height). To change the zoom level, press the ZOOM button on the remote control. Each press of the ZOOM button will switch the zoom level in sequence. -
Page 20: Repeat Playback
A D V A N C V E D O P E R A T I O N S Repeat Playback To repeat a certain chapter, title, track or disc, press the REPEAT button on the remote control. Each press of the REPEAT button changes the repeat mode using the following sequence : DVD and DVD-Audio : Blu-ray : CD and SACD :... -
Page 21: Playback By Chapter Or Track Number
A D V A N C V E D O P E R A T I O N S Playback by Chapter or Track Number During the playback of a disc, you can use the NUMBER buttons on the remote control to directly jump to a specified chapter or track number. -
Page 22: Media File Playback
Playback from a USB Flash Drive The UBR-X100 / X200 players are equipped with two USB ports : one USB 3.0 port in the back and one USB 2.0 port in the front. You may use any of the available USB ports to plug in USB drive. - Page 23 M E D I A F I L E S P L A Y B A C K drive. Most computers, especially those installed with Windows, already support SMB clients. Please refer to respective OS instructions to set up the SMB/CIFS shared file/folder. NOTE •...
-
Page 24: Home Menu
HOME Menu The UBR-X100 / X200 players present a Home Menu to assist you in navigating and playing media files from an inserted optical disc, USB flash drive or external hard drive. Basically, the Home Menu is the starting point for accessing media files. -
Page 25: Viewing Photo Files
M E D I A F I L E S P L A Y B A C K Viewing Photo Files To view digital photo files stored on an optical disc or USB drive, select Photos from the Home Menu. A file browser will appear to assist you in navigate the files and folders. -
Page 26: Setup Menu Options
Setup Menu Section> Menu Item >Selection Setup Menu Section is the uppermost Setup Menu level. Within the UBR-X100 / X200 players, there are seven Setup Menu sections listed in the left column of the Setup Menu : Display, Audio, HDMI, Network, Language, Playback and Options. - Page 27 S E T U P M E N U O P T I O N S 4. When the scroll icon is shown at the top or bottom of the Setup Menu, it indicates that there are more menu items that can be accessed by scrolling with the UP/DOWN ARROW buttons. 5.
-
Page 28: Display
S E T U P M E N U O P T I O N S Display The Display section of the Setup Menu allows you to configure video output options. 1. TV Screen: Sets the aspect ratio of the player’s output image. •... - Page 29 S E T U P M E N U O P T I O N S 4. Dolby Vision : Setting the Dolby Vision Mode. • Auto (par défaut) – Dolby Vision signal is sent if it is supported by both the content and the display. The player automatically detects Dolby Vision content if the TV is Dolby Vision compatible, and if these two criteria are met, the player will be able to output the Dolby Vision video signal from the Main HDMI output (Main).
-
Page 30: Video Parameter
To exit the Video parameter menu and return to the current playing disc, press the RETURN button. 1. Memory : The UBR-X100 / X200 players can store up to three custom modes. Use LEFT / RIGHT buttons to change mode and all parameters will automatically be adjusted to their saved values. The modified parameter values will be automatically saved when you exit the Video parameter menu or when switching to another memory mode. -
Page 31: Select The Best Output Resolution
Unfortunately, in most cases this process results in very poor image quality. So if you set the output resolution of the UBR-X100 / X200 closer to your TV's native resolution, you will be able to get an exceptional picture. Most TVs and projectors can communicate their native resolutions to the player via HDMI. -
Page 32: Audio
S E T U P M E N U O P T I O N S Audio The Audio section of the Setup Menu allows you to configure audio output options. 1. Digital Out : Sets the output format for S/PDIF digital coaxial and optical connections for use with a Dolby Digital and DTS compatible home theater amplifier. - Page 33 S E T U P M E N U O P T I O N S NOTE • Dynamic Range Compression is applied to the analogue audio output and digital audio outputs (HDMI, Coaxial and Optical) when the audio format is set to PCM. 5.
-
Page 34: Audio Signal Reference Chart
S E T U P M E N U O P T I O N S Audio Signal Reference Chart Blu-ray Discs may contain many types of audio signal formats, some of which are high resolution types such as Dolby TrueHD and DTS-HD Master Audio. -
Page 35: Recommended Audio Format Options
O P T I O N S Recommended Audio Format Options Depending on your specific audio/video connection method, the Audio options of the UBR-X100 / X200 may need to be adjusted to match your configuration. Refer to the video and audio connection methods described previously in this guide and the following audio setup guidelines. - Page 36 S E T U P M E N U O P T I O N S Stereo Analogue Audio to Receiver (UBR-X200) If you primarily listen to stereo content or if your receiver only offers stereo audio connections, please use the analogue RCA-style cables to connect the FL (Front Left) and FR (Front Right) terminals of the player to your receiver.
-
Page 37: Hdmi
S E T U P M E N U O P T I O N S HDMI The HDMI section of the Setup Menu allows you to configure video and audio HDMI options. 1. HDMI Mode : Choix de la configuration audio/vidéo du flux HDMI : •... - Page 38 Each may only implement part of the features or add their own proprietary functions. The manufacturer-specific implementation of the HDMI CEC function is often given a proprietary name of “…Link” or “…Sync”. The UBR-X100 / X200 players provide two HDMI CEC function modes for its HDMI Output (Main) port : •...
-
Page 39: Network
S E T U P M E N U O P T I O N S Network The Network section of the Setup Menu system allows you to configure the player’s network connection, test the connection, and enable or disable BD-Live access. 1. - Page 40 S E T U P M E N U O P T I O N S 4. Connection Test : Allows you to test the internet connection. It is recommended to test the internet connection when you connect the player to the internet for the first time or when changes or modifications of the parameters have been made in the IP Adress Setting section.
-
Page 41: Language
Language Configuration of language preferences. This menu contains the following sub-items : • OSD – Allows you to choose the language for the player’s Setup Menu and the on-screen display. • Audio – Allows you to choose the preferred audio language for DVD and Blu-ray Discs. If an audio track of the selected language is available on the disc, the audio track will be played back. -
Page 42: Options
• USB Storage – You may download the firmware files from the REAVON web site to a USB drive and then use the USB drive to upgrade the player. Please follow the instructions on the firmware download web page. - Page 43 S E T U P M E N U O P T I O N S Load default : To reset all settings to the factory default value. This operation is only available when the playback is completely stopped or when there is no disc loaded. System Information : Displays the firmware version and the MAC address (physical network address of the player).
-
Page 44: Useful Notes
Some features of the player may not be compatible with certain discs or files. • Some discs with special features may not be fully supported by the UBR-X100 / X200 players. This is not a malfunction of the units. •... - Page 45 No disc or incompatible disc Eject disc and check. loaded in player Dirty disc recording surface Eject the disc and clean any dirt or fingerprints. “No Disc” or “Unknown Disc” Eject disc and make sure the label side is facing up Disc not properly loaded error and the record side is facing down.
-
Page 46: Specifications
Specifications Designs and specifications are subject to change without notice. UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Disc Types* Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE Analogue Audio: 7.1ch, 5.1ch, stereo. (UBR-X200) Dedicated Stereo Analogue Audio: XLR balanced, RCA single-ended. (UBR-X200) Coaxial/Optical Audio: up to 2ch/192kHz PCM, Dolby Digital, DTS. -
Page 47: Rs-232 Control Protocol (Ubr-X200) & Ip Control
RS-232 and IP Control The REAVON UBR-X200 has an RS-232 control port and can be integrated into most custom home theatre control systems. This RS-232 port is configured as "Data Circuit Terminal Equipment" or DCE (DCE) by means of a 9-pin D-Sub type female connector (pin). -
Page 48: Limited Warranty
REAVON provides repair service free of charge up to a cost equal to the original purchase price paid for the product and the liability of REAVON or other REAVON authorized technical center is limited to the original purchase price paid for the product. - Page 49 WWW.REAVON.COM...
