Operators' Manual

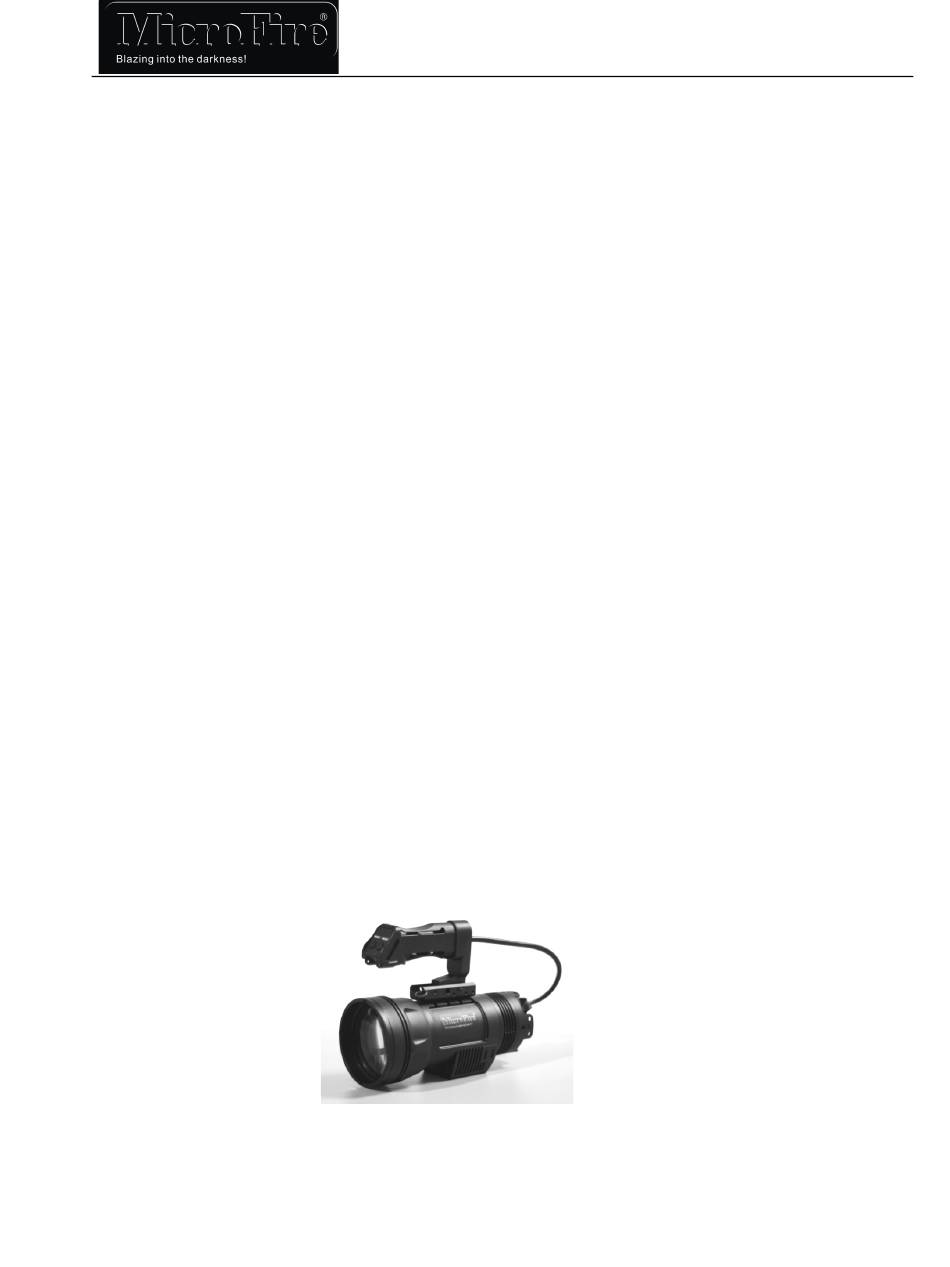

OPTISPIKE S50
Ultra-Long Range Tactical Searchlight
Features
5.5 km
3 kg
Illuminating
while weights
only, Optispike S50 is the ideal hand-held or vehicle mounting
long range tactical searchlight. Combining state-of-the-art optical engineering and a customized solid-state
light source, S50 features:
◎ Multi-mode operation: Strobe, 100% power, and 30%-100% dimming and IR mode;
◎ Adjustable beam width can be controlled by pushing the button;
◎ All the function can be controlled in one hand;
◎ A detachable battery bank with LED indicator and an external DC power port are options as
power supply;
◎ Integrated with Picatinny rail cover equipped with a handle for hand-held operation or for
gun/vehicle/warship mounting;
◎ Compact design with a weight including the K6 battery bank of 3 kg only;
◎ A sturdy aerospace-grade aluminum alloy housing with a HAIII military-grade hard-anodized finish that
ensures rugged and reliable performance under harsh conditions and is water resistant.
Meeting all military and industry specifications, S50 is ideal for military, law enforcement, and other
professional applications.
Page 1 of 8
Rev. 2019-01
Advertisement
Table of Contents
Summary of Contents for MicroFire OPTISPIKE S50
- Page 1 3 kg Illuminating while weights only, Optispike S50 is the ideal hand-held or vehicle mounting long range tactical searchlight. Combining state-of-the-art optical engineering and a customized solid-state light source, S50 features: ◎ Multi-mode operation: Strobe, 100% power, and 30%-100% dimming and IR mode;...
- Page 2 Operators' Manual Components: Primary components K6 battery bank 100V-240V AC charger battery power cord Shoulder strap Storage case-hard case Optional parts: Auxiliary IR module DC vehicle charger Amber filter 12 V - 28 VDC vehicle adapter Operation instructions: 1. Connect K6 battery bank: a) Connect the F1 power cord to S50 via the four - pin connector "DC 12V";...
- Page 3 Operators' Manual It shows S50 is connected with K6 battery bank. 2. Power on/off and adjust the brightness modes: a) Connect the handle controller to S50 via the six-pin connector "Controller"; Six-pin remote controller connector socket b) Press the ON/OFF button in the bottom side of the handle controller, the default mode is 100% power with a beam throw up to 5,500 m;...
- Page 4 Operators' Manual 3. Beam divergence adjustment: There are two smaller buttons on the upper side of handle controller which are used to adjust the beam divergence. SPOT FLOOD Press and hold the SPOT button, the beam divergence will become smaller till 0.8° Press and hold the FLOOD button, the beam divergence will become bigger till 15°...
- Page 5 Operators' Manual 5. Switch the beam divergence of IR: There are four IR LED in the IR module, the centered two IR LED puts out a narrow beam of 5° and those on edges put out a wide beam of 60°. All IR LEDs are on when switch on (shown in pic A) Push the ON/OFF button, the narrow IR beam is on(shown in pic B).
- Page 6 S50 is a very high precision product and all defective parts or products should be sent to your local MicroFire dealer for repair or replacement. 3. Always disconnect S50 from power cord when not in use, when placed in storage or when being transported to prevent accidental activation.
- Page 7 Damage incurred in return shipping and handling due to improper packaging is not covered. In order to be eligible for coverage under the warranty, the equipment must have the original MicroFire Company Limited. label with a legible serial number attached. Removal of any portion of the factory-affixed labels on any product will result in the voiding of any written or implied warranty.
- Page 8 Operators' Manual MicroFire Company Limited Add:5th floor, No.25, Keji North No.2 Rd Shenzhen,518057 Tel:86 755 26994678 Email: info@microfire-system.com Page 8 of 8 Rev. 2019-01...
