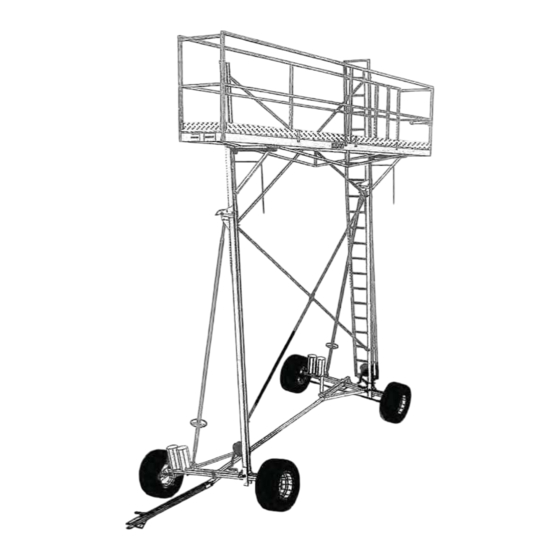

RUSTGO 139 Instruction And Safety Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Phone: 402-589-1247

Advertisement

loading
Need help?

Need help?

Do you have a question about the 139 and is the answer not in the manual?

Questions and answers

Summary of Contents for RUSTGO 139

  • Page 1 Phone: 402-589-1247...
  • Page 2 WITHOUT PRIOR WRITTEN APPROVAL FROM RUSTGO CO. Many of the parts used in the manufacture of this RUSTGO mobile work platform have specific properties, and the manufacturer recommends that replacement parts be purchased through RUSTGO CO. in order to ensure the original integrity of the product.
  • Page 3 PRACTICES (a) General and (b) Guardrail systems. Any additional requirements such as tying off, screens, mesh, etc. shall be the users responsibility. NOTE: RUSTGO mobile work platforms are not designed to withstand the forces imposed by the Personal fall arrest systems or Positioning device systems as in OSHA Section 1926.502(d & e) Subpart M.

  • Page 4: General Rules

    NEVER TAKE CHANCES: Do not work on platform if your physical condition is such that you feel dizzy or unsteady in any way. RUSTGO brand manually propelled work platforms are not insulated for use near electrically energized circuits. User should therefore consider the work platform to be non-insulated unless otherwise labeled.
  • Page 5 O. Employees shall not work on platforms during storms, high winds, freezing rain or other adverse weather conditions that could endanger workman. Employees shall not work on platforms which are covered with ice, snow, or frost, unless all ice, snow or frost is removed and decking sanded to prevent slipping. P.
  • Page 6 ADJACENT TO THE JOBSITE. KNOW THE HEIGHT OF ALL EQUIPMENT AND MATERIALS BEING USED AT THE JOBSITE. i THE MAXIMUM HEIGHT OF A STANDARD MODEL 139 WITH THE MAIN PLATFORM FULLY EXTENDED IS APPROXIMATELY 23ft. 2in. (+ or – 2”) Approx.
  • Page 7 --GENERAL INSPECTION & MAINTENANCE— Daily visual inspection shall be conducted of the structural components and other critical components, such as pin, bolts and locking devises (including pawls). Check for metal/weld fatigue on all parts including slide mechanism on platforms. Check for bent or worn parts or components that need maintenance, repair or replacement.

  • Page 10: Troubleshooting

    TROUBLE SHOOTING If you have trouble raising and/or lowering the platform(s), check the following items: 1. Grease the inside lips of the front & rear uprights and upright extensions. 2. Grease the slide mechanism of the platform. 3. Be sure that the uprights are in line. If they are too out of line, the binding of the platform at the lift arm attachment pints will transfer to the uprights and make it very hard to raise and/or lower the platform.

  • Page 11: Gear Assembly

    195. Install hairpin clip in holes above sheave to keep cable on sheave. DO NOT attach 6ft upright extensions at this time. 4. Attach adjusting arms to uprights with 5/8”x2-1/2” bolts, locknuts & reducer bushings. Spinner wheel should be located at the winch end of the upright. May be preassembled on Model 139. MANUAL 2010 March...
  • Page 15 6FT. UPRIGHT EXTENSION ASSEMBLY 1. To attach, place extensions, x-brace pipes & ladder Extensions on the platform and raise platform to within a foot of the top uprights. Two 3/8” & two 3/4 “ safety pins should be stored on the extensions when not in use. This way the are readily available when installing extensions.
  • Page 16 Raising (PHOTO 4) and lowering (PHOTO 5) the Intermediate Level using the I/Level winches is accomplished in the same manner as the main platform. (See RUSTGO GENERAL OPERATING INSTRUCTIONS page for full explanation.) If you are using two Intermediate Level, the lower one is raised &...
  • Page 17 RUSTGO GENERAL OPERATING INSTRUCTIONS The Rustgo mobile work platform is designed to easily adjust to most terrain encountered on a job site. However, good judgment and common sense must be exercised to use this product in a safe manner. Care must be taken to maintain good stability &...
  • Page 18 TRAIL POSITION IN TRAIL POSITION Shown above is an example of a Model 195 Shown above is an example of a Model 139. in trial position for highway tow. The example in trail position for highway tow. The example consists of a Model 195 with optional wide tires, consists of a Model 139 with optional wide tires, 2”...
  • Page 19 THIS PAGE INTENTIONALLY LEFT BLANK MANUAL 2010 March...
  • Page 28 2" BALL Hitch Coupler for FRONT TONGUE, Add-on 192-245 2-5/16" Ball Hitch Coupler for FRONT TONGUE, Add-on 199-044 Front tongue w/skid plate only 199-045 Reach pipe, 2-1/2"ID Tube, 152-3/4", M 139 199-069 Hair pin, Hole ID 1-1/8", FRONT AXLE 199-075 Front axle, MODEL 139 199-077...
  • Page 29 Part # Description M139 M195 Net Wt (lbs) 587-003 1/8" pop rivet (NOT SHOWN, attaches part #883-131) 600-600 Intermediate Level Winch 600-601 Flanged bronze bearing, I/L winch 600-602 I/L winch spool 600-603 I/L winch body 600-604 3/16"x1" Cotter pin, I/L winch 600-661 Sheave block 600-662...
  • Page 30 883-068 5/8" Jam nut 883-071 5/8"x2" Bolt w/lock nut (for spherical tierod ends) 883-073 Inner tie rod, MODEL 195 883-076 Rear axe, MODEL 139 883-078 Rear Exterior axle, MODEL 195 883-080 1/2"x4" Cotterless hitch pin, M195 883-082 Curved plunger 883-083 2-1/4"...

  • Page 31: Light Bar

    1-1/2x6 590-166 EXTEND AXLE decal, 1-1/2x6, Green #1090 593-168 WINCH decal #393A, 2-1/4"x2" 593-169 ADJUSTING ARM decal #393B, 6"x4-1/4" 688-142 RUSTGO Co-NKI decal, 3"x15-1/2" 700-001 INSTRUCTION MANUAL decal 700-002 ANSI Standard A92.3 decal 700-003 WARNING! M139 LOAD LIMITS decal 700-004...
  • Page 32 Part # Description Net Wt (lbs) INTERMEDIATE LEVEL PARTS & DECALS 192-115 18"X18' INTERMEDIATE LEVEL PLATFORM w/decking, decals toeboard brackets. NO Toeboards, Guard, or End rails included 192-116 Intermediate Level Front Endrail 10.5 192-117 Int./Level Rear End Rail w/Gate 17.2 192-118 Int./Level Rear Gate post 192-119...
  • Page 33 RW Kit Int. Level Winch Retro-fit Kit consisting of part #'s: 600-600, 600-601 600-663, 663(or 883-031), -664(or 883-039), -665, 883-009, -034 883-011, -034, -035, 192-037 & 192-126 Designate for M139 or M195 OTHER NON-STOCK ITEMS NOT ILLUSTRATED 900-LHAR LEFT HAND Acme rod w/nut & swivel (TOP) 900-RHAR RIGHT HAND Acme rod w/nut &...

This manual is also suitable for:

195
