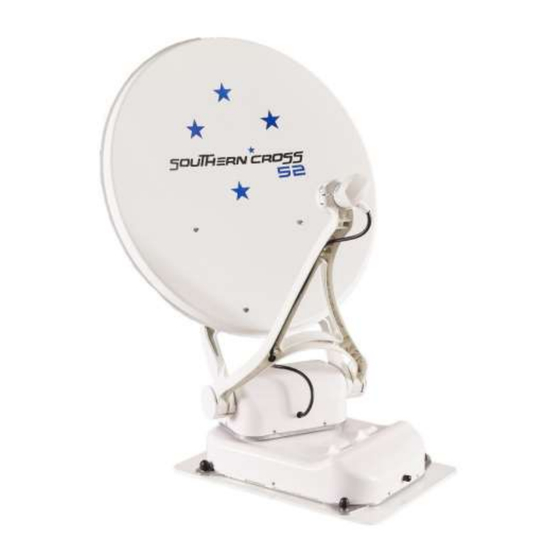

Summary of Contents for RSE Southern Cross 52

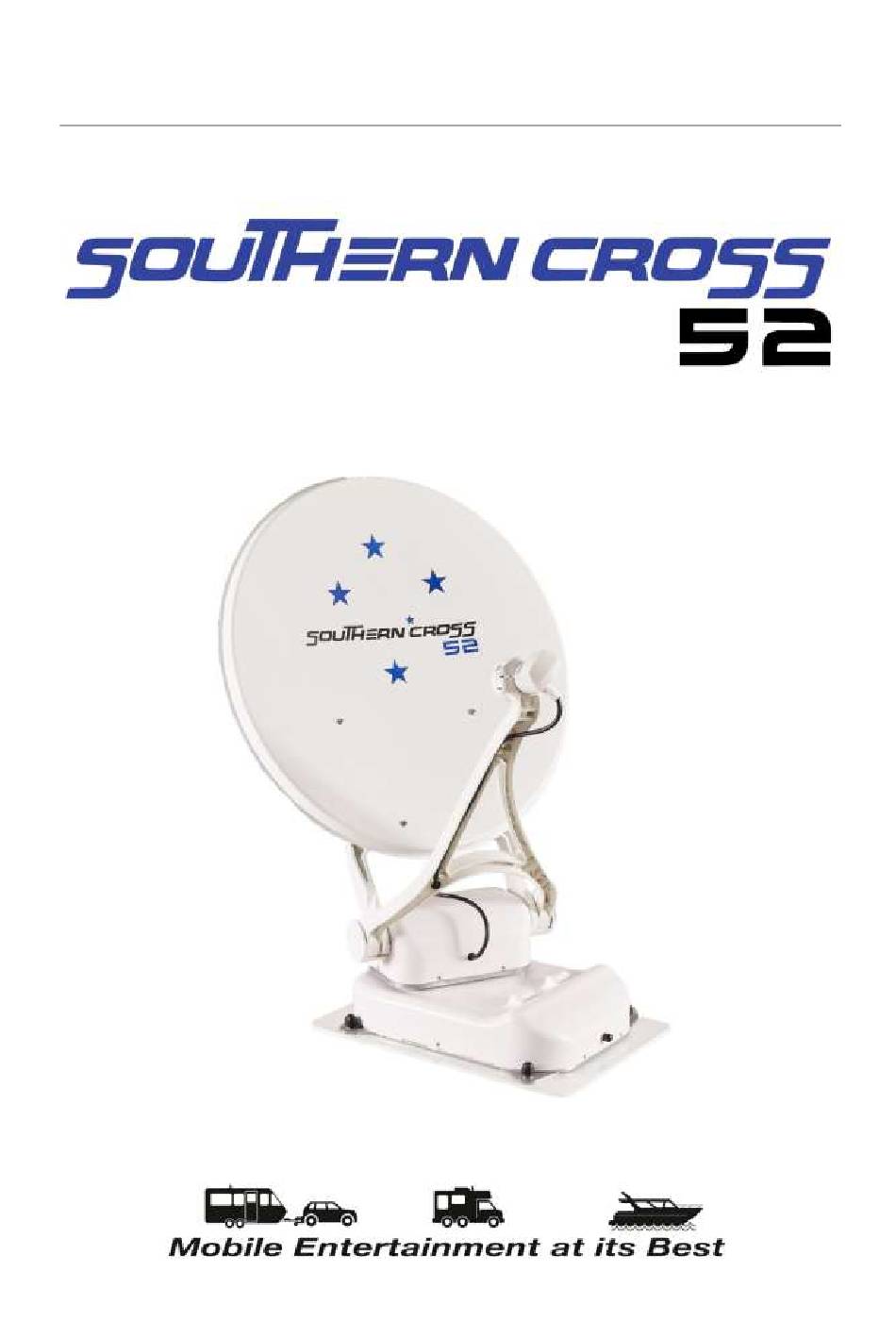

- Page 1 Installation & Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Caution Contents on Delivery Correct Use and Operation Mounting Preparation Main Cable Installation Electrical Connections Data Box Installation ON/OFF Display Panel Mounting Receiver Connection Operation of SC52 Automatic Satellite Dish Service Operation Auto Up Function Technical Information Warranty... -
Page 3: Caution
We recommend the SC52 wiring is attached directly to the house battery only. Contents on Delivery The following items are in the carton as supplied: Southern Cross 52 Dish Main RG6 RF Coax Cable with waterproof entry plate and connector Data Box Module Controller Display ... -
Page 4: Correct Use And Operation
Correct Use and Operation This product has been designed for use in a fixed installation on motorhomes and caravans with a maximum speed of no more than 100 Km/h. It is designed to automatically aim a parabolic antenna mounted on a stationary vehicle at geostationary television satellites transmitting directly to NZ using the Optus D1 satellite. -
Page 5: Mounting Preparation
Alternatively a 3M bonding tape and primer spray can be used, for more information on this product please contact RSE. -
Page 7: Main Cable Installation
F connector is used to refit to the satellite cable. Note: RSE cannot be held responsible if this cable length is altered as if not done correctly this could affect the satellite... -
Page 8: Electrical Connections
Electrical Connections Note: This system is 12V operation. Mount the main control unit at the selected location and connect the RF coax cable from the antenna. Connect the antenna cable to the “Dish In” connector on the control unit. Mount the Display controller using the screws provided and connect the Display loom (Western Jack type connector) to both the Display controller and Data Box. -
Page 9: Data Box Installation
Data Box Installation Locate a position best suited to your individual installation and run the appropriate antenna cables and power supply cables as supplied. Mount the Data Box using the 4 x mounting lugs. Ensure that the master ON/OFF reset switch is accessible. The box can be hidden just ensure that once located, the switch can be easily turned on and off in the future. -
Page 10: Operation Of Sc52 Automatic Satellite Dish
Operation of SC52 Automatic Satellite Dish Turn ON the Master/Reset switch that is located on the side of the Data Box. When first turned on the dish will respond with a short self-test. The dish will raise several cm’s then retract and “CLOSING” will appear on the screen. This will time out quickly and “POWER OFF”... -
Page 11: Service Operation
ON/OFF button on the SC52 Display and the dish will retract. Note: It will not retract if you turn the TV/Decoder off. If this function is not activated or you wish to deactivate it please contact RSE between 8 am and 5 pm Monday to Friday to assist you with this process. -
Page 12: Technical Information
The Southern Cross 52 has a 24 month warranty. After this period this product can then be returned to RSE (NZ) Ltd in Auckland, phone 0800 639 822 for a service at a cost of $160 + GST. Once this service is completed the product will then carry a further 12 month warranty.
Need help?
Do you have a question about the Southern Cross 52 and is the answer not in the manual?
Questions and answers
When turning on the Data Box from Off to ON the unit boots up. However we then get an "error" message on the screen. As per instructions use ON/OFF as reset and ON again. error message stays on
Why won’t it turn on
The RSE Southern Cross 52 may not turn on due to the following reasons:
1. Power Supply Issues – Ensure the red wire (12V Positive) is connected to a constant 12V DC supply without voltage drop. The black wire (12V Neg/Earth) should have a proper ground connection.
2. Auto Shut Down Circuit – The yellow wire (12V Ign/Switched) must be correctly connected to a switched ignition source, alternator D+ connection, or stop light circuit (for caravans).
3. Fuse or Relay Problem – Check the main loom containing the relay and fuse holder for any blown fuses or loose connections.
4. Control Unit Issue – Ensure the main control box is switched on.
5. Technical Fault – If none of the above resolve the issue, contact RSE for further assistance.
