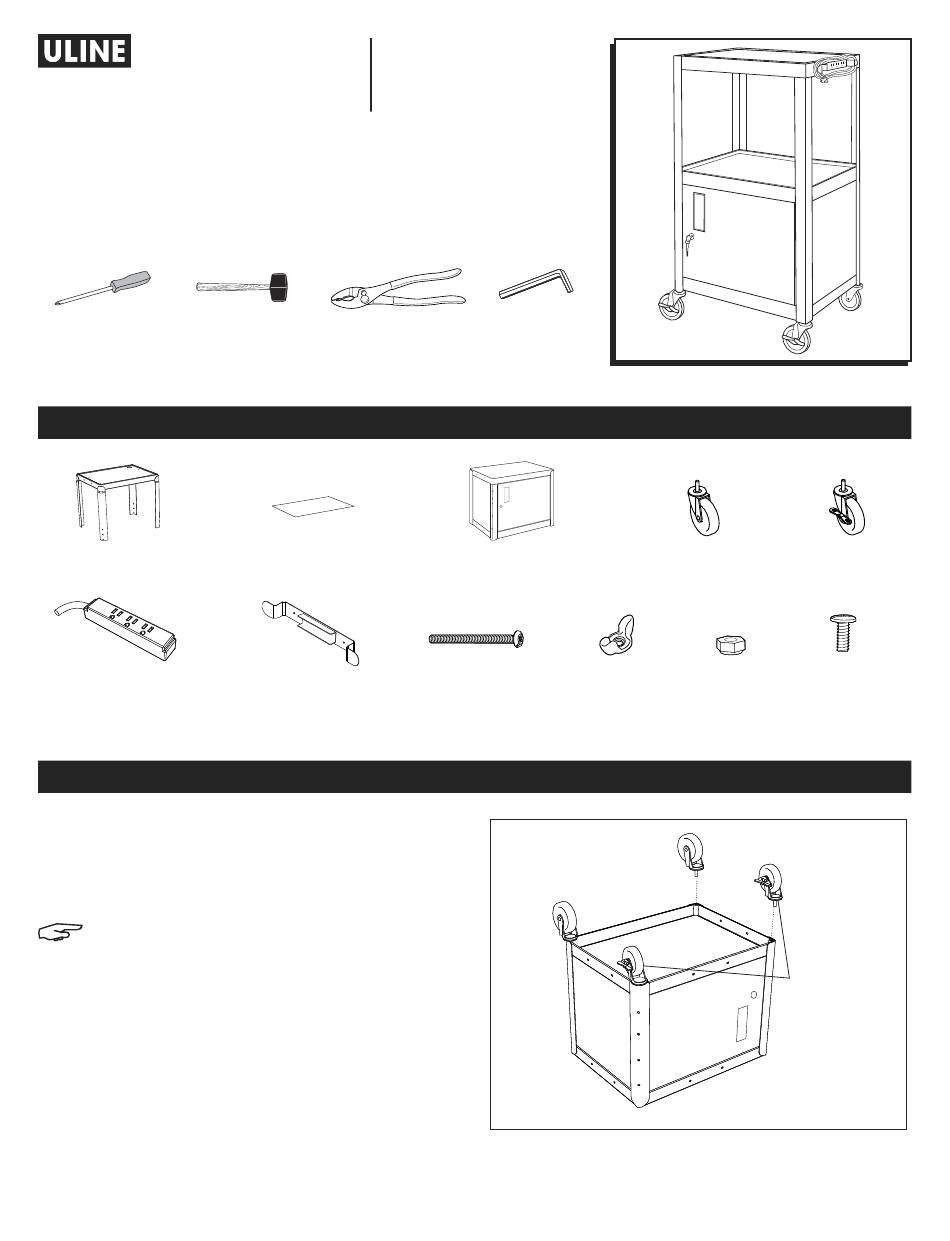

H-5003, H-6747
AV CART
TOOLS NEEDED
Phillips Screwdriver
Rubber Mallet
Top Shelf x 1
Power Strip x 1
CART ASSEMBLY
1.
Place bottom cabinet upside down on a flat surface
with caster holes facing up. Insert casters into caster
holes and secure with rubber mallet. (See Figure 1)
NOTE: Be sure to install the swivel casters with
brakes on the front side of the cart.
PAGE 1 OF 6
1-800-295-5510
uline.com
Pliers
Non-Slip Mat x 1
Cord Wrap Bracket x 1
ASSEMBLY
Allen Wrench
(included)
PARTS
Bottom Cabinet x 1
Wing Nut x 2
1⁄" Bolt x 2
Figure 1
Back
Para Español, vea página 3-4.
Pour le français, consulter les pages 5-6.
Swivel Caster x 2
Swivel Caster
with Brake x 2
3/4" Bolt x 4
Nut x 4
Swivel Caster
with Brake
Front
0521 IH-5003
