Audio and video from an external A/V device (satellite TV receiver, cable TV box,
VCR, camcorder, camera, DVD player) can be brought into the WinTV-PVR via the
back panel connectors. If your A/V device uses S-Video, connect to the S-Video
input on the WinTV-PVR-150/500MCE. If your video device uses composite
video instead of S-Video, use the yellow RCA jack.
Audio input from an external A/V device can be brought into the WinTV-PVR-
150/500MVCE via the white and red audio input jacks.

Step 2: Installing the WinTV-PVR-150/500/NOVA-t MCE driver

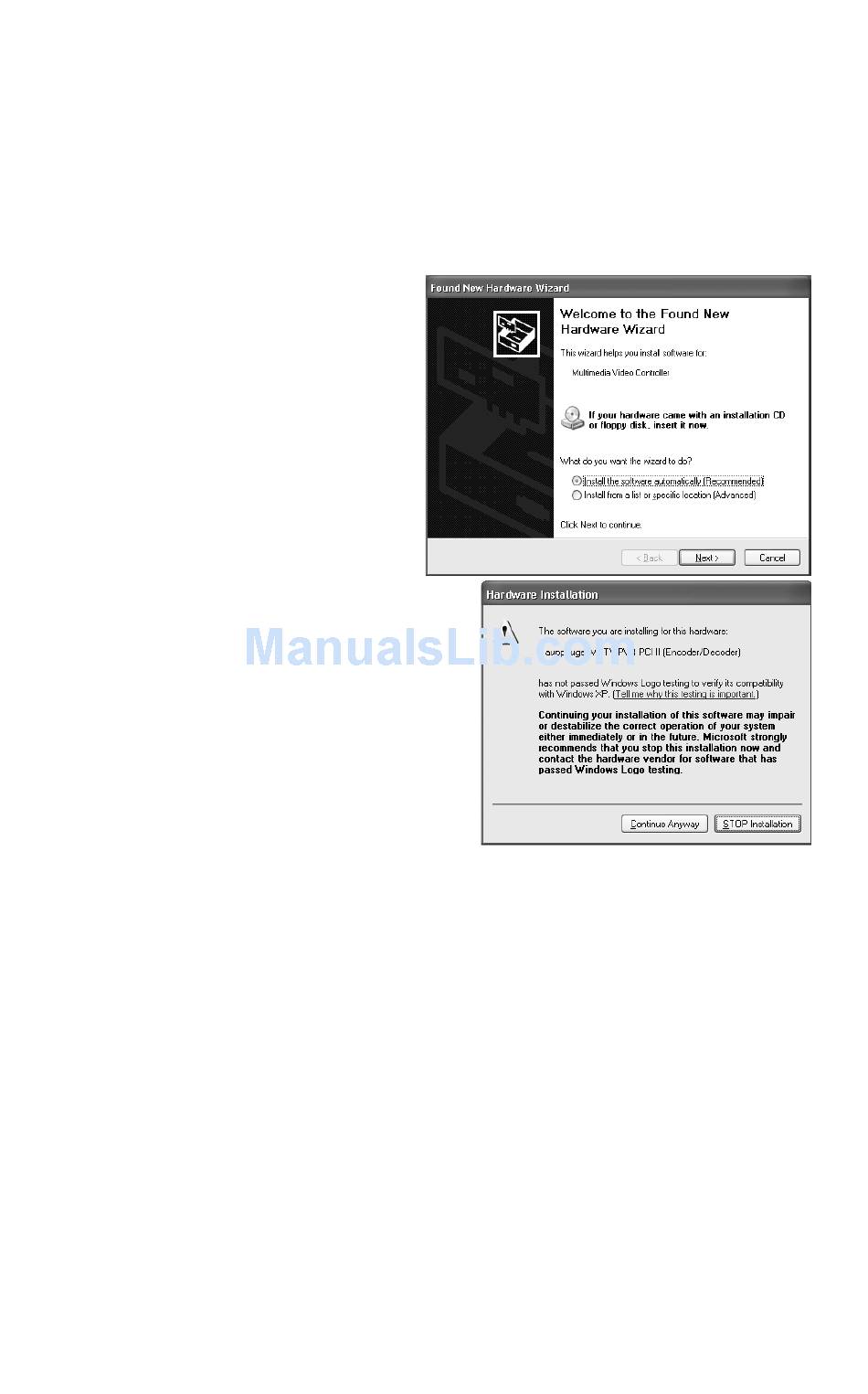

After installing the WinTV-PVR or
WinTV-NOVA-t in your PC, boot
Windows. The Found New Hardware
Wizard will appear. Insert the WinTV
MCE Installation CD-ROM in your
PC's CD-ROM drive and make sure
Install the software automatically
(Recommended) is checked.
Click Next.
If the Hardware Installation dialog
box opens, click Continue Anyway.
Click Finish.
If you are installing the dual tuner WinTV-
PVR-500MCE, you will see the Found New
Hardware message for the second TV tuner.
Follow these steps for the second TV tuner.
Step 3: For WinTV-HVR-1100, install
the software MPEG encoder for Media
Center.
Run WinTV-HVR-1100_Setup.EXE from the
from the WinTV MCE Installation CD-ROM.

Set up TV under Media Center Edition

If you are using the WinTV-PVR or WinTV-NOVA under Windows XP Media Center
Edition, you should run the TV Setup Wizard in Media Center. To manually
launch the TV Set Up Wizard, in the main Media Center menu go to Settings /
TV / Set up TV Signal.
You will see a message: Set Up Your TV Signal. Click Next.
In Chose your Region, most times your region is selected. Click Next.
Next you'll see Select your TV signal (Cable, Satellite, Antenna).
Note: If you are using DVB-T digital TV, always select Antenna.
Otherwise, chose the way you receive your TV signal and click Next.
If you chose Antenna, you will see a menu which asks: Select Your Signal
Type. If you are using the WinTV-NOVA or WinTV-HVR to receive digital terrestrial
TV, select Digital Terrestrial (DVB-T). Otherwise, select Analog. Click Next.
You will then be asked if you have a Set top box? Chose yes or no. Click Next.
3
