Dryer Description

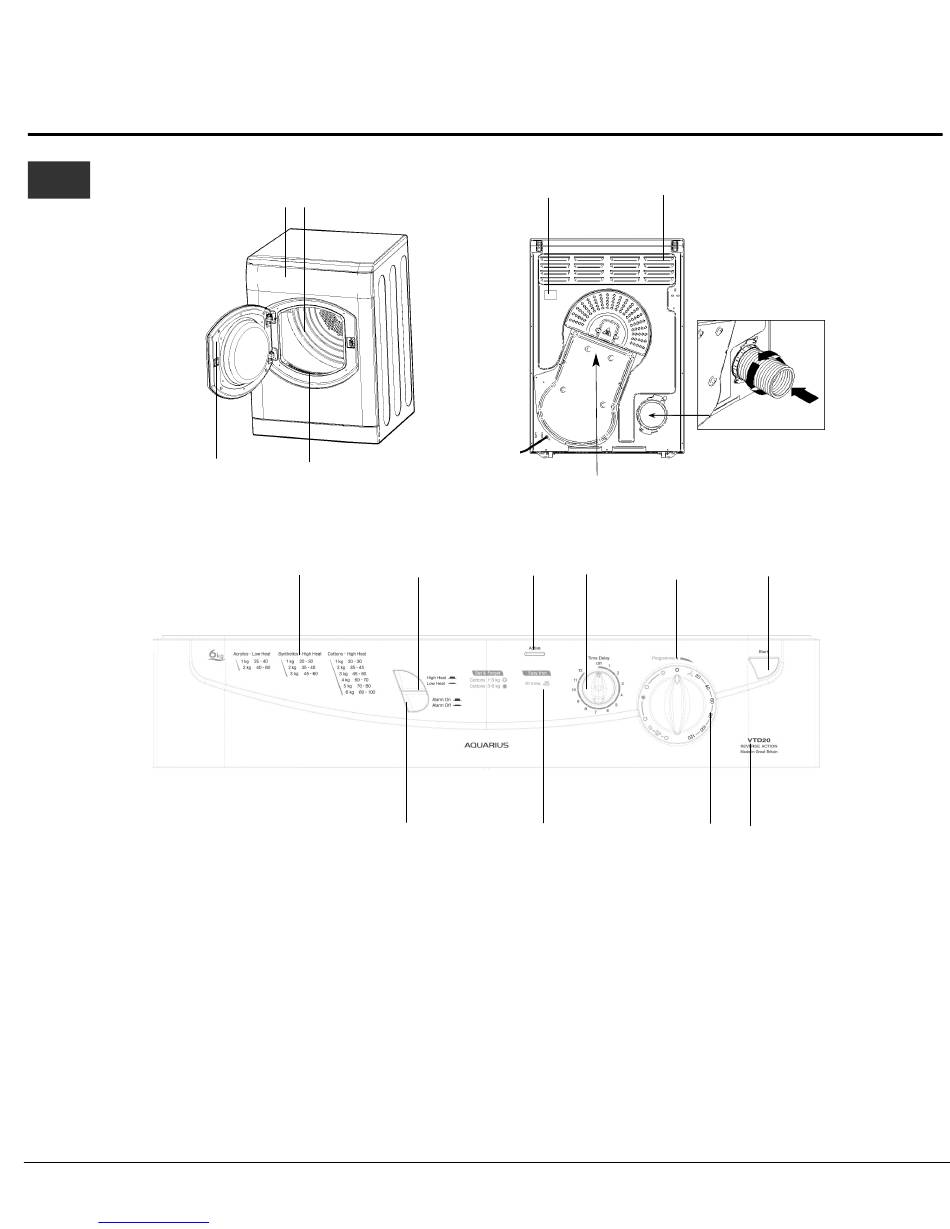

The front

GB

Control Panel

Model & Serial
numbers
Control panel
Drying Guide
The START button begins drying a selected
programme (see Start and Programmes).
The HEAT button selects drying temperature (see
Start and Programmes).
OUT: HIGH heat. IN: LOW heat.
The ALARM buzzer signals the end of a drying cycle
(VTD20 only).
OUT: Buzzer ON. IN: Buzzer OFF.
The ACTIVE indicator light signals that your dryer is in
use (VTD20 only). This light will glow when the START
button is pressed. It will remain on until the door is
opened or the power is turned off. This light will be on
during a delayed start programme.
4

The back

Drum
Filter
ACTIVE
HEAT
Button
(VTD20 only)
ALARM
Button Programmes Guide
(VTD20 only) (VTD20 only)
Air Intake Vent
Rating plate
Caution: Hot!
DELAY
Light Knob
(VTD20 only)
TIMER/PROGRAMMES
Knob
The Drying Guide allows you to consult a user friendly
table of fabric types and load capacities.
The VTD20 also has a guide to the programmes
available.
The DELAY knob sets a delay on the dryer's start time
(VTD20 only): rotate it clockwise until you reach the
number of hours you want to delay the start time.
If you have gone too far, turn the knob counter-
clockwise (see Start and Programmes).
The TIMER/PROGRAMMES knob sets the drying time
or programme: rotate it clockwise, never counter-
clockwise, until the indicator is pointing to the time or
programme you want to select (see Start and
Programmes).
Vent Tube fitted here
START
Indicator
Button
Model number
(VTD20 or VTD00)
