Furrion FACW10ESSA-BL Quick Start Manual

STANDARD SINGLE ZONE
WALL THERMOSTAT
MODEL: FACW10ESSA-BL
QUICK START GUIDE
For further support and to download the air
conditioner user manual please scan the QR
code or visit: https://furrion.com/pages/
downloads-climate
This quick start guide will help you install and use the
device properly. For further support please visit
www.furrion.com/support.

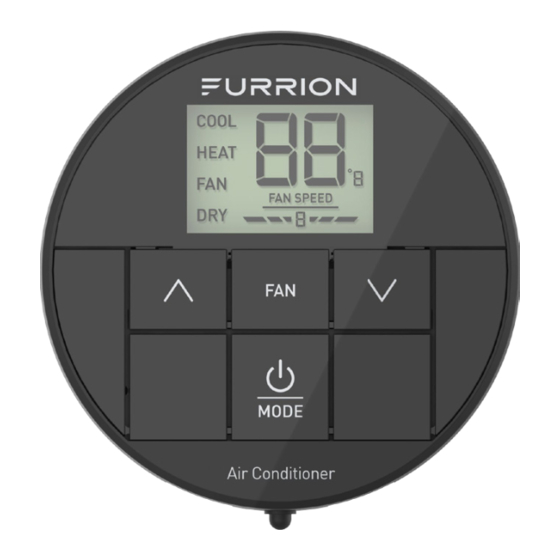

PRODUCT OVERVIEW
Operation Mode
Press to increase the
temperature set-point
Press once to turn on.
Press repeatedly to
select mode
WHAT'S IN THE BOX
QSG x 1
Warranty Manual x 1
Thermostat x 1
NOTE: Product design and packaging may change without
notice.
INSTALLATION
WARNING: Risk of electric shock. Always verify that the
electrical power to the circuit has been disconnected
before performing the installation procedures.
Thermostat Location
This thermostat is a regulating device which senses the
room real-time temperature and performs actions to
maintain the temperature near a desired set-point. For
accurate temperature control, the following considerations
should be taken into account:
1. Mount the thermostat on an interior wall, approximately
5 ft. (1.5m) above the floor. Install in a location with good
air circulation and avoid damp areas.
2. Avoid to install the thermostat in areas that are
exposed to temperature variances, such as direct
sunlight, near windows and doors, above or below
supply vents. Do not install the thermostat in locations
near heat sources like televisions, lamps, or fireplaces.
Room Temperature or
Wiring and Mounting the Thermostat
Error Code
Fan Speed
1. Rotate the thermostat cover counterclockwise and pull
Press to change
the fan speed
out the base plate.
Press to decrease
temperature set-point
2. Use the base plate as a template and drill a hole on
the vehicle wall. Extend the four wire cables from the
cutout area. Refer to the cable tag label for each cable
definition.
3. Mount the thermostat base on the wall using screws
included with the thermostat.
NOTE: Make sure the base is not covering the hole and
squeezing the thermostat cables. Take care in case of
damaging the temperature sensor.
4. Connect the cables to thermostat.
5. Replace the thermostat to the base and rotate
clockwise until it snaps into place.
1
3 4
5 5
2 2
Thermostat Cables
4 3
Thermostat
cables
Thermostat Cables
