Panasonic CX-400 Series Manual

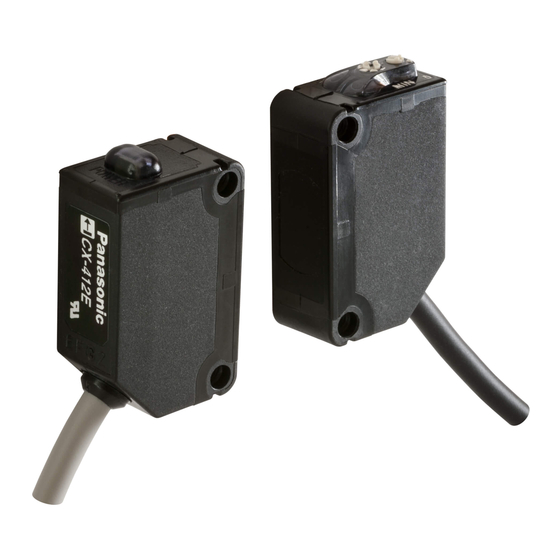

Amplifier built-in compact photoelectric sensor
Hide thumbs Also See for CX-400 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Amplifier Built-in
Compact Photoelectric Sensor
CX-400
SERIES Ver.2
* The contents of this catalog are as of October 2017.
2022.6
For the latest information, please visit our company website.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CX-400 Series

Summary of Contents for Panasonic CX-400 Series

  • Page 1 Amplifier Built-in Compact Photoelectric Sensor CX-400 SERIES Ver.2 * The contents of this catalog are as of October 2017. 2022.6 For the latest information, please visit our company website.
  • Page 2 The various lineup covers through the inclusion of a newly developed retroreflective type custom integrated circuit.The CX-400 series achieves reductions in (excluding the CX-48□) power consumption of up to 60%, averaging 44% reduction when and the diffuse reflective upgrading due to its unique design.
  • Page 3 CX-400 SERIES Ver.2 Compact Photoelectric Sensor APPLICATIONS Detecting out of position tape Detecting objects in dusty Passage confirmation of object feeder cassette environment on a conveyor belt CX-412 Slit mask CX-491 Out of position CX-411 Detecting transparent glass bottles Detecting a small tablet Detecting a biscuit CX-441 CX-443...
  • Page 4 –25 °C –13 °F. Thoroughly eliminating unnecessary waste, Reducing many environmental burdens The CX-400 series has three different cable length types and uses very simple packaging to reduce waste. The bag is made of polyethylene and does not emit toxic gasses.
  • Page 5 CX-400 SERIES Ver.2 Compact Photoelectric Sensor MOUNTING CX-423 CX-44□ Beam axis alignment made easy with a high luminance spot beam The bright spot makes beam axis alignment easy These sensors have a These sensors have high luminance red LED a high luminance red spot beam which provides spot that provides bright visibility enabling...
  • Page 6 CX-400 SERIES Ver.2 Compact Photoelectric Sensor FUNCTIONS CX-44□ BGS/FGS functions make even the most challenging settings possible! The BGS function is best suited for the following case The FGS function is best suited for the following case Background not present Background present When object and background are separated When object and background are close together...

  • Page 7: Standard Type

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor ORDER GUIDE Standard type Model No. (Note 1) Output Emitting Type Appearance Sensing range operation element NPN output PNP output 10 m 32.808 ft CX-411 CX-411-P Red LED 15 m 49.213 ft CX-412 CX-412-P Infrared CX-413 CX-413-P...

  • Page 8: Basic Type

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor ORDER GUIDE Basic type (Without operation mode switch and sensitivity adjuster. Cable is 0.5 m 1.640 ft long.) Model No.(Note 1) Output Emitting Type Appearance Sensing range operation element NPN output PNP output CX-411A-C05 CX-411A-P-C05 Light-ON 10 m 32.808 ft...
  • Page 9 CX-400 SERIES Ver.2 Compact Photoelectric Sensor ORDER GUIDE 0.5 m 1.640 ft / 5 m 16.404 ft cable length types 0.5 m 1.640 ft / 5 m 16.404 ft cable length types (standard: 2 m 6.562 ft, basic: 0.5 m 1.640 ft) are also available.
  • Page 10 CX-400 SERIES Ver.2 Compact Photoelectric Sensor OPTIONS Model No. Sensing range Min. sensing object Designation Slit size Slit mask Sensor Slit on one side Slit on both sides Slit on one side Slit on both sides CX-411□ 400 mm 15.748 in 20 mm 0.787 in ø0.5 mm...
  • Page 11 CX-400 SERIES Ver.2 Compact Photoelectric Sensor OPTIONS Reflector mounting bracket Designation Model No. Description • MS-RF21-1 • MS-RF22 Protective mounting bracket for RF-210 MS-RF21-1 It protects the reflector from damage and maintains alignment. Reflector mounting MS-RF22 For RF-220 bracket MS-RF23 For RF-230 Two M3 (length 8 mm Two M3 (length 12 mm...

  • Page 12: Specifications

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor SPECIFICATIONS Standard type Thru-beam Retroreflective Type Diffuse reflective Long sensing range Wi t h pol a ri z i n g fil t ers Long sensi n g range For transparent object sensing Narrow-view NPN output CX-411 CX-412 CX-413 CX-491 CX-493 CX-481 CX-483 CX-482 CX-424 CX-421 CX-422 CX-423 PNP output CX-411-P CX-412-P CX-413-P CX-491-P CX-493-P CX-481-P CX-483-P CX-482-P CX-424-P CX-421-P CX-422-P CX-423-P Item...
  • Page 13 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SPECIFICATIONS Standard type Type Adjustable range reflective Small spot NPN output CX-441 CX-443 CX-444 CX-442 PNP output CX-441-P CX-443-P CX-444-P CX-442-P Item CE marking directive compliance EMC Directive, RoHS Directive Adjustable range (Note 2) 20 to 50 mm 0.787 to 1.969 in 20 to 100 mm...
  • Page 14 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SPECIFICATIONS Basic type Thru-beam Retroreflective Type Long sensing range With polarizing filters Light-ON Dark-ON Light-ON Dark-ON Light-ON Dark-ON NPN output CX-411A-C05 CX-411B-C05 CX-412A-C05 CX-412B-C05 CX-491A-C05-Y CX-491B-C05-Y PNP output CX-411A-P-C05 CX-411B-P-C05 CX-412A-P-C05 CX-412B-P-C05 CX-491A-P-C05-Y CX-491B-P-C05-Y Item CE marking directive compliance EMC Directive, RoHS Directive...

  • Page 15: Wiring Diagram

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor I/O CIRCUIT AND WIRING DIAGRAMS NPN output type I/O circuit diagram Wiring diagram Color code / Connector pin No. of the connector type Brown (Brown / 1) Load 12 to 24 V DC Black (Note 1) (Black / 4) Load ±...
  • Page 16 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) CX-411□ Thru-beam type Parallel deviation Angular deviation Parallel deviation with round Parallel deviation with round slit masks (ø0.5 mm ø0.020 slit masks (ø1 mm ø0.039 Slit on one side Slit on 32.808 15.748 31.496...
  • Page 17 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) CX-491□ CX-493□ Retroreflective type Retroreflective type Parallel deviation Angular deviation Parallel deviation Angular deviation 26.247 13.123 13.123 26.247 Reflector angular deviation Reflector 19.685 9.843 9.843 19.685 Sensor Reflector (RF-230) angular angular deviation deviation ℓ...
  • Page 18 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) CX-422□ Diffuse reflective type Sensing field Correlation between sensing object size and sensing range As the sensing object size becomes smaller than the standard size (white non-glossy paper 200 × 200 mm 7.874 ×...
  • Page 19 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) CX-441□ Adjustable range reflective type Sensing fields Emitted beam • Setting distance: 25 mm 0.984 in • Setting distance: 50 mm 1.969 in White non- 1.575 White non- 3.150 3.150 glossy paper glossy paper Gray non-glossy paper Gray non-glossy paper...
  • Page 20 CX-400 SERIES Ver.2 Compact Photoelectric Sensor SENSING CHARACTERISTICS (TYPICAL) CX-444□ Adjustable range reflective type Sensing fields Emitted beam • Setting distance: 25 mm 0.984 in • Setting distance: 50 mm 1.969 in • Setting distance: 100 mm 3.937 in White non- 1.575 3.150 glossy paper...
  • Page 21 CX-400 SERIES Ver.2 Compact Photoelectric Sensor PRECAUTIONS FOR PROPER USE All models • Never use this product as a sensing device for personnel protection. • In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

  • Page 22: Sensitivity Adjustment

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor PRECAUTIONS FOR PROPER USE CX-41□ CX-42□ CX-49□ CX-48□ Sensitivity adjustment Retroreflective type sensor (excluding CX-491□) • Please take care of the following points when detecting Sensitivity materials having a gloss. Step Description adjuster Make L sufficiently Make L, shown in the Turn the sensitivity adjuster fully long...
  • Page 23 CX-400 SERIES Ver.2 Compact Photoelectric Sensor PRECAUTIONS FOR PROPER USE CX-41□ Slit mask (Optional) Interference prevention filter (CX-411□) • With the slit mask OS-CX-□, the sensor can detect a • By mounting the interference prevention filters PF-CX4-□, small object. two sets of the CX-411□ can be mounted close together. However, the sensing range is reduced when the slit However, the sensing range is reduced when the mask is mounted.

  • Page 24: Stability Indicator

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor PRECAUTIONS FOR PROPER USE CX-44□ Stability indicator When using the BGS function • Since the CX-44□ use a 2-segment photodiode as its <When a sensing object is moving right or left to the sensor> receiving element, and sensing is done based on the difference in the incident beam angle of the reflected Distance...
  • Page 25 CX-400 SERIES Ver.2 Compact Photoelectric Sensor DIMENSIONS (Unit: mm in) CX-41□ CX-41□-Z Sensor Sensor Sensitivity adjuster (Note 1) 11.8 Sensitivity adjuster (Note 1) 11.8 0.465 0.465 Operation indicator (Orange)(Note 2) 7.85 0.309 Operation indicator (Orange)(Note 2) 7.85 0.309 3.95 0.156 3.95 0.156 Stability indicator (Green)(Note 1)
  • Page 26 CX-400 SERIES Ver.2 Compact Photoelectric Sensor DIMENSIONS (Unit: mm in) CX-44□ CX-44□-Z Sensor Sensor 12.5 12.5 0.492 0.492 Operation indicator (Orange) Operation indicator (Orange) 0.323 0.323 Distance adjuster (5-turn) 0.157 Distance adjuster (5-turn) 0.157 Operation mode switch Operation mode switch Stability indicator (Green) Stability indicator (Green) 0.787...

  • Page 27: Assembly Dimensions

    CX-400 SERIES Ver.2 Compact Photoelectric Sensor DIMENSIONS (Unit: mm in) MS-CX2-1 Sensor mounting bracket (Optional) Assembly dimensions 0.197 0.472 0.020 0.787 Mounting drawing with the receiver of CX-41□ 0.134 0.118 25.2 R0.472 0.134 14° 13.6 0.535 0.551 0.992 0.315 14˚ R0.472 0.134 0.866...
  • Page 28 CX-400 SERIES Ver.2 Compact Photoelectric Sensor DIMENSIONS (Unit: mm in) MS-CX2-5 Sensor mounting bracket (Optional) Assembly dimensions 0.984 Mounting drawing with the 20.6 receiver of CX-41□ 0.748 26.2 0.811 1.031 0.748 0.591 0.134 t 1.5 0.138 Beam axis 0.591 t 0.059 t 1.5 25.4 0.134...
  • Page 29 CX-400 SERIES Ver.2 Compact Photoelectric Sensor DIMENSIONS (Unit: mm in) MS-RF21-1 Reflector mounting bracket for RF-210 (Optional) Assembly dimensions 0.906 0.906 0.217 0.217 ø36 ø36 ø1.417 1.969 ø1.417 1.969 30° 30° 20° 0.630 0.394 20° 0.138 0.394 0.126 R7.5 R0.295 ø25 ø0.984 t 1.2...
  • Page 30 Disclaimer The applications described in the catalog are all intended for examples only. The purchase of our products described in the catalog shall not be  regarded as granting of a license to use our products in the described applications. We do NOT warrant that we have obtained some  intellectual properties, such as patent rights, with respect to such applications, or that the described applications may not infringe any  intellectual property rights, such as patent rights, of a third party. Panasonic Industry Co., Ltd. Industrial Device Business Division 7-1-1, Morofuku, Daito-shi, Osaka 574-0044, Japan industrial.panasonic.com/ac/e/ Specifications are subject to change without notice. ⓒ Panasonic Industry Co., Ltd. 2022.6   Printed in Japan...
