1 English
AIR CONDITIONER
Filter kit
Model: TCB-LK2801DP-UL
1. Adaptation model
Model name
TCB-LK2801DP-UL

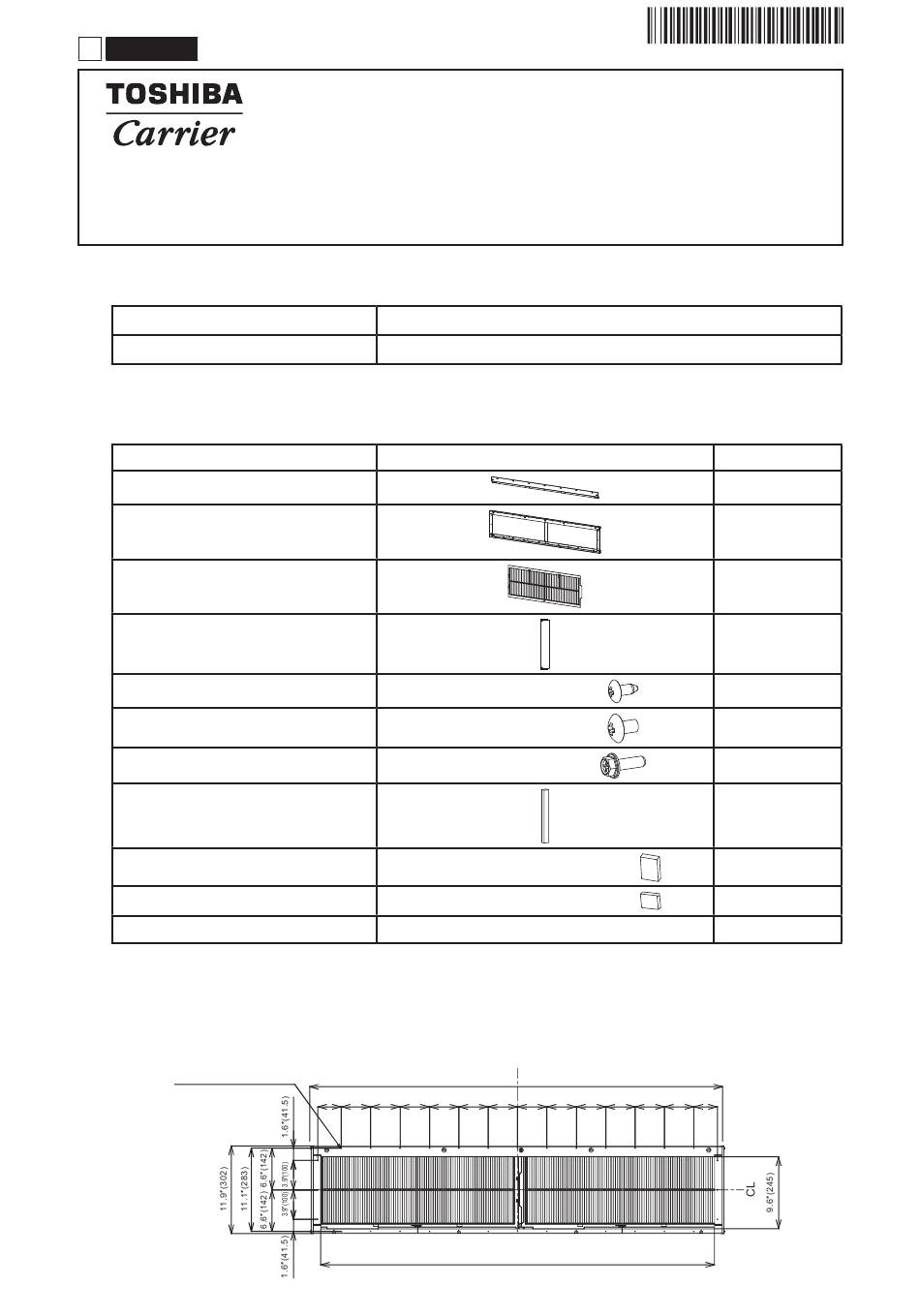

2. Accessories
Below parts are included.
Parts name
(1) Frame fi x plate
(2) Filter frame
(3) Filter
(4) Cover
(5) Screw
(6) Screw
(7) Screw
(8) Seal material
(9) Seal material
(10) Seal material
(11) Installation manual
3. Duct design
Arrangement
Referring to the following dimension, manufacture duct at the local site.
Installation hole
(USE Ø5/32"(M4) × 0.3"(8)
32 Places)
INSTALLATION MANUAL
MMD-AP072*HP-UL, MMD-AP096*HP-UL
Ø5/32"(M4) × 0.3"(8L)
Ø13/64"(M5) × 0.3"(8L)
Ø13/64"(M5) × 0.6"(16L)
0.4"(10t) × 1.0"(25) × 1.4"(35)
0.4"(10t) × 0.8"(20) × 1.0"(25)
3.1"(80) 3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100)
53.0"(1346.5)
-1-
Thank you for purchasing the Filter kit for
air conditioner.
Before starting the installation work,
please read this manual carefully and
install the product properly.
Adaptation model
Form
This manual
CL
55.3"(1405)
3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100) 3.9"(100)
1116950301-1
Quantity
2
1
2
2
8
4
18
1
2
2
1
3.1"(80)
