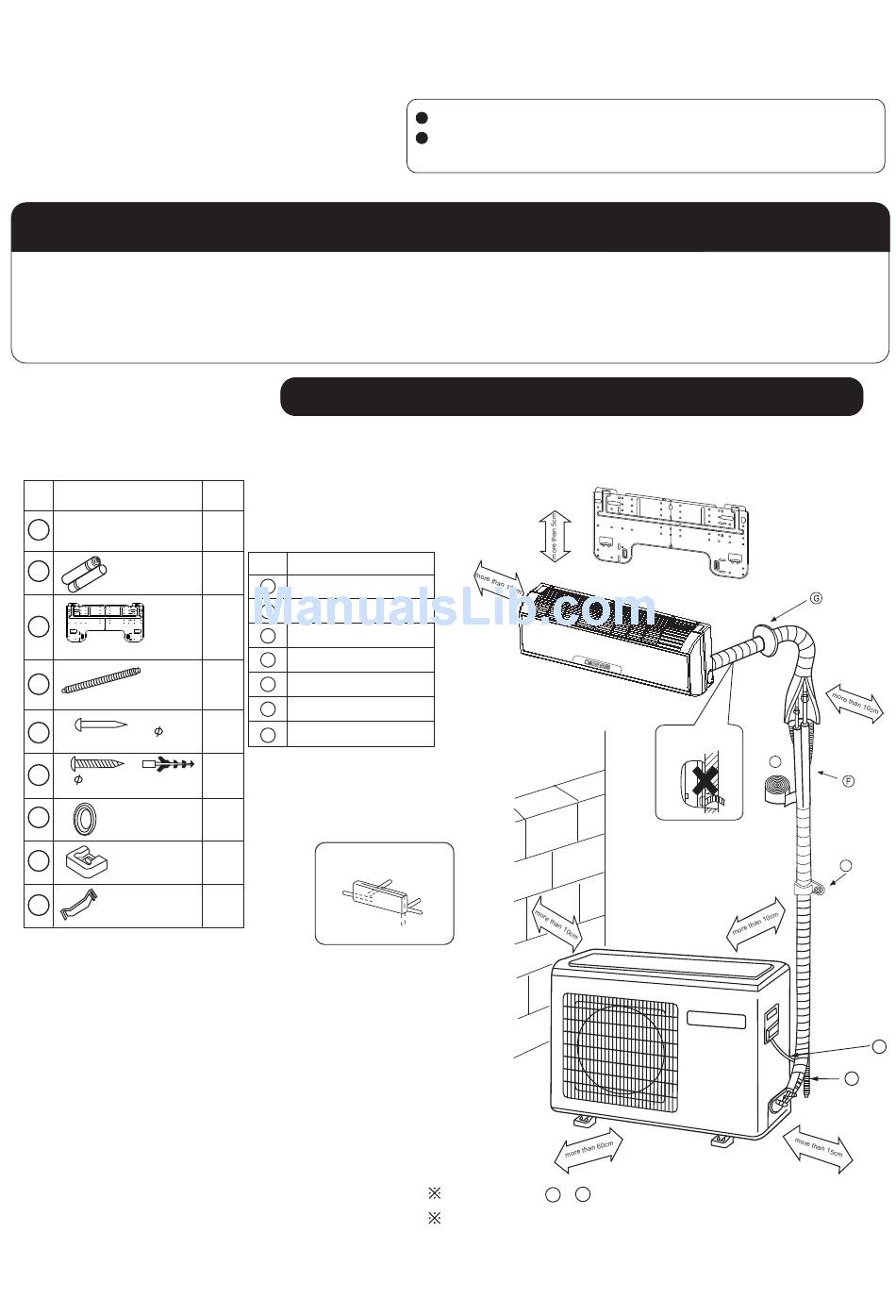

Installation Manual of Room Air Conditioner Necessary Tools for Installation 1.Driver 2.Hacksaw 3.Hole core drill 4.Spanner(17,19 and 26mm) Accessory parts Number Accessory parts articles Remote controller R-03 dry battery Mounting plate Drain hose 4X50 Cement steel nail 4X25 Plastic cap...
Place, where a distance marked in the above figure. Power Source Selection of pipe Liquid pipe ( 6.35mm(1/4") Gas pipe ( 9.52mm(3/8") Floor fixing dimensions of the outdoor unit (Unit:mm) HSU-18CRA03-T Outdoor Unit is available as illustrated For 12 For 09 6.35mm(1/4") 12.7mm(1/2")
Indoor unit 1.Fitting of the Mounting Plate and Positioning of the wall Hole When the mounting plate is first fixed 1.Carry out, based on the neighboring pillars or lintels, a proper leveling for the plate to be fixed against the wall, then temporarily fasten the plate with one steel nail. 2.
1. Insert the drain hose into the dent of heat insulation materials of indoor unit. 2. Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them. 3. Coat the flaring seal face with refrigerant oil and connect pipes. Cover the connection part with heat insulation materials closely, and make sure fixing with adhesive tape Lid for right piping Lid for under piping...
5. A breaker should be incorporated into fixed wiring. The breaker should be all-pole switch and the distance between its two contacts should be not less than 3mm. Indoor unit HSU-09CRA03-T connecting wiring: -mod 09-12: -mod Indoor unit Outdoor unit Indoor unit Power cable: -mod 09-12: 3G1.0mm -mod 3G2.5mm Outdoor unit HSU-12CRA03-T HSU-18CRA03-T 3G1.0mm 3G2.5mm...
Outdoor unit 1.Installation of Outdoor Unit Drawing for the installation of indoor and outdoor units Install according to 2.Connection of pipes To bend a pipe, give the roundness as large as possible not to crush the pipe Connecting the pipe of gas side first makes working easier. The max vertical distance between the indoor unit and the outdoor unit is 5 m.
2-way valve 6.35mm(1/4") 3-way valve 9.52mm(3/8") HSU-09CRA03-T 2-way valve 3-way valve 6.35mm(1/4") 12.7mm(1/2") HSU-12CRA03-T 2-way valve 3-way valve 6.35mm(1/4") 12.7mm(1/2") HSU-18CRA03-T Outdoor unit Oil trap Indoor unit CAUTION In case more than 5 metres,oil trap should be installed every 5~7m.
Page 8
1.Power Source Installation The power source must be exclusively used for air conditioner. (Over I0A) In the case of installing an air conditioner in a moist place, please install an earth leakage breaker. For installation in other places, use a circuit breaker as far as possible.
