Instruction Manual
3.5 Amp Motor
10 Inch Cutting Path / 0.065 In. Line

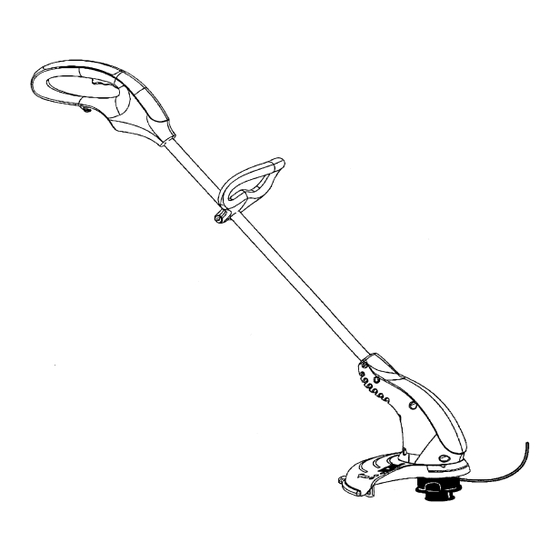

ELECTRIC WEEDWACKER
Model No.
C944.512200
S S S S Safety
S S S S Assembly
S S S S Operation
S S S S Maintenance
S S S S Français
WARNING:
Read and follow all Safety Rules and Operating
Instructions before first use of this product.
For answers to your questions about this product:
Call 7 am--7 pm, Mon--Sat; Sun, 10 am--7 pm
1-800-235-5878
Sears Canada, Inc., Toronto, Ontario M5B 2B8
530088064
1/14/02
r
(Hours listed are Central Time)
Advertisement
Table of Contents
Related Manuals for Craftsman ELECTRIC WEEDWACKER C944.512200
Summary of Contents for Craftsman ELECTRIC WEEDWACKER C944.512200
- Page 1 Instruction Manual 3.5 Amp Motor 10 Inch Cutting Path / 0.065 In. Line ELECTRIC WEEDWACKER Model No. C944.512200 S S S S Safety S S S S Assembly S S S S Operation S S S S Maintenance S S S S Français WARNING: Read and follow all Safety Rules and Operating Instructions before first use of this product.
-
Page 2: Table Of Contents
Service & Adjustments Parts Ordering Back Cover LIMITED WARRANTY STATEMENT TWO (2) YEAR LIMITED WARRANTY ON CRAFTSMAN ELECTRIC R R R R WEEDWACKER LINE TRIMMER For two (2) years from the date of purchase, Sears Canada, Inc., will repair or replace free of charge, at Sears option, parts which are defective as a result of material or workmanship. - Page 3 OPERATOR SAFETY fit fully into the wall outlet, reverse S Dress properly. Always wear safety the plug. If it still does not fit, contact a qualified electrician to install the glasses or similar eye protection proper wall outlet. Do not change when operating, or performing main- the equipment plug, extension cord tenance on your unit.
- Page 4 S Do not hang unit so that the trigger sure spool is properly installed and switch is depressed. all parts are securely fastened. DOUBLE INSULATION S Use only Craftsman replacement CONSTRUCTION parts and accessories as recom- This unit is double insulated to help mended.
-
Page 5: Assembly
ASSEMBLY CARTON CONTENTS ATTACHING THE SHIELD Check carton contents against the fol- WARNING: The shield must be lowing list. Model C944.512200 properly installed. The shield provides S Trimmer partial protection from the risk of thrown objects to the operator and S Shield Examine parts for damage. -
Page 6: Operation
OPERATION KNOW YOUR TRIMMER READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR Compare the illustrations with your unit to familiarize yourself with the location of UNIT. the various controls and adjustments. Save this manual for future reference. Trigger Switch Cord Assist Handle Retainer... - Page 7 CORRECT OPERATING POSITION Trimming Trimming 3 in. (8 cm) Above Ground SCALPING The scalping technique removes un- wanted vegetation down to the ground. Hold the bottom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc.
-
Page 8: Maintenance
MAINTENANCE CUSTOMER RESPONSIBILITIES WARNING: Disconnect power source before performing maintenance. CARE & MAINTENANCE TASK WHEN TO PERFORM Check for loose fasteners and parts Before each use Check for damaged or worn parts Before each use Inspect and clean unit and labels After each use GENERALRECOMMENDATIONS CHECK FOR DAMAGED OR... -
Page 9: Parts Available
USER REPLACEABLE SERVICE PARTS REPLACEMENT PART PART NUMBER Spool with 0.065 inch Trimmer Line C944.510210 Assist Handle 530403805 Bolt Carriage, 1/4-20 530403886 Wing Nut 530016118 Shield Assembly 530404080 STORAGE S Store unit and extension cord in- WARNING: Perform the follow- doors in a high, dry place out of the ing steps after each use.
