SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make any CAUTION kind of contact with any internal part of this product.
Page 3
PRECAUTIONS 1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot.
Subwoofer Optical Cable 1 Power Cord c Micro USB to USB adapter and HDMI cables are sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care. CONNECTING ELECTRICAL POWER Use the power components (1, 2, 3) to connect the power supplies in the following order: Subwoofer ...
Page 5

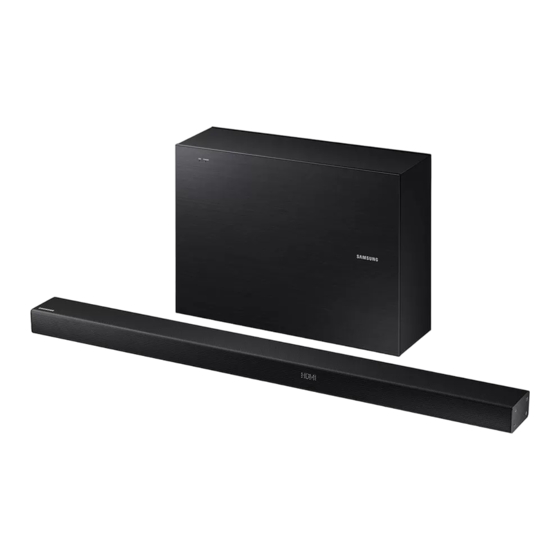

CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit. Soundbar Main Unit Subwoofer The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on.
If the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again. Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately) c For further information, refer to the Web Manual.
Page 7
TV on or off by setting the Bluetooth POWER On function to On. See page 15. c The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012. c If you want to disconnect the existing connection to your TV and establish a new connection to another TV, press the &...
4. Play music on the connected device. [If failed to connect to the Bluetooth device / If device searching is needed again] • Delete the previous "[AV] Samsung Soundbar Kxxx K-Series" found by the Bluetooth device and have it search for the Soundbar again.
2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. c The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) search for the model name download the firmware from the customer support menu option.
Page 11
2. Align the Paper Template's Centre Line with the Wallmount Components centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape. c If you are not mounting below a TV, place the Centre Line in the centre of the installation area.
Page 12
5. Push a screw (not supplied) through each 7. Install the Soundbar with the attached Bracket- Holder-Screw, and then screw each screw Wall Mounts by hanging the Bracket-Wall firmly into a support screw hole. Mounts on the Holder-Screws on the wall. 6.
D ETACHING THE SOUNDBAR FROM THE WALL 1. To separate the Soundbar from the wall mount, push it in the direction of the arrow, and then pull it away from the wall as shown. c Do not hang onto the installed unit and avoid striking or dropping the unit.
Page 14
REMOTE CONTROL BUTTONS & FEATURES Inserting Battery before using the Remote Control 1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below. 2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery.
Sets the volume temporarily to 0. Press again to cancel. Mute Adjusts the volume level of the unit. Volume Press the & button to pause a music temporarily. Press the & button again to play the selected music. Play / Pause Selects the next file.
Multimedia Interface, and the HDMI Logo are È TV SoundConnect is supported by some trademarks or registered trademarks of HDMI Samsung TVs released from 2012 on. Check Licencing LLC in the United States and other your TV to see if it supports TV SoundConnect.
• Nominal specification – Design and specifications are subject to change without prior notice. – Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. – Weight and dimensions are approximate. – For more information about the power supply and power consumption, refer to the label attached to the product.
