3 INSTALLATION AND GETTING STARTED

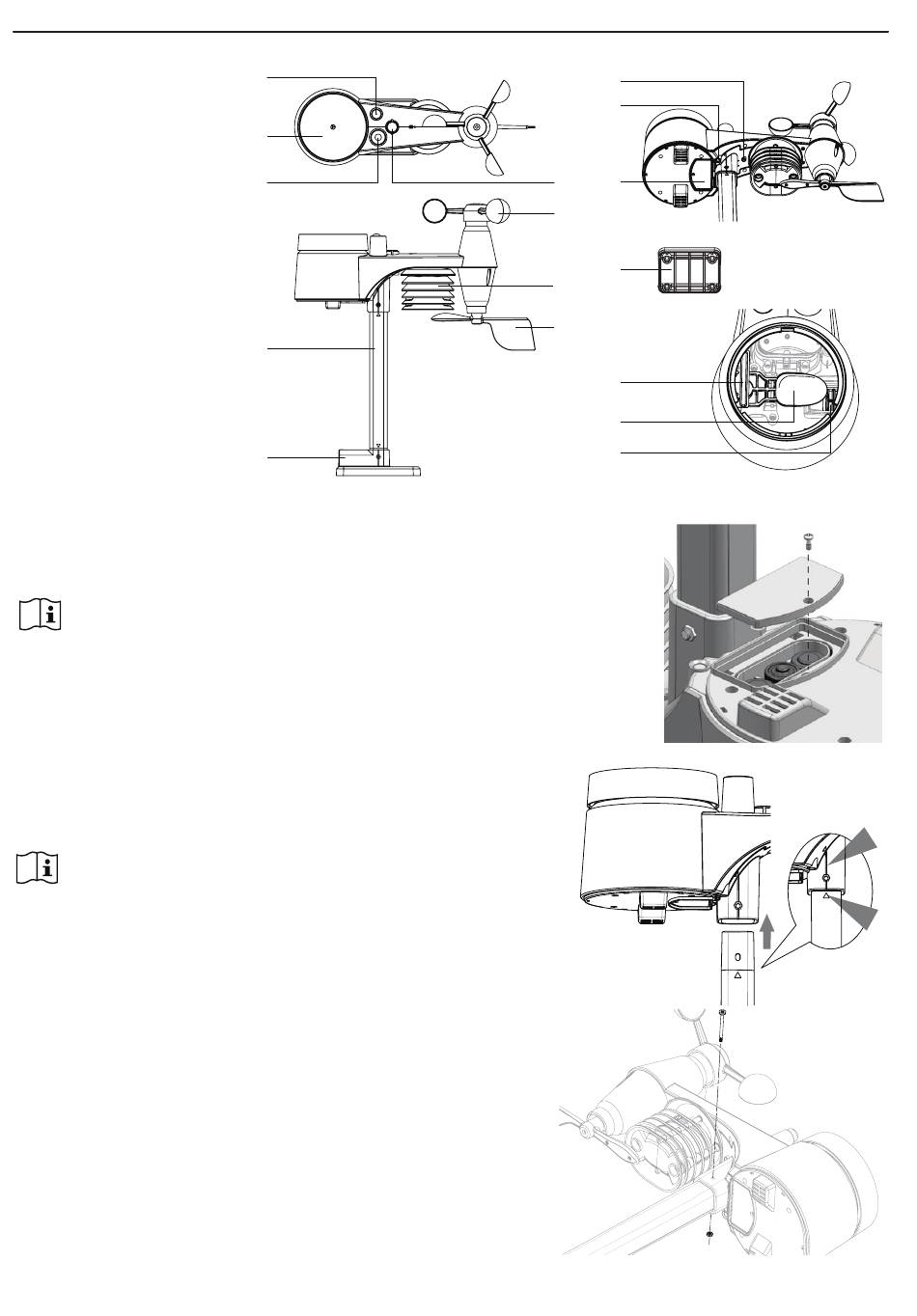

3 1 WIRELESS 7-IN-1 SENSOR ARRAY

1. Antenna
2. Rain collector
3. UVI / light sensor
4. Mounting pole
5. Mounting base
6. Balance indicator
7. Wind cup
8. Radiation shield
9. Wind vane
10. Red LED indicator
11. [ RESET ] key
12. Battery door
13. Mounting clamp
14. Rain sensor
15. Tipping bucket
16. Drain holes

3 1 1 INSTALL BATTERIES

Unscrew the battery door at bottom of unit and insert the
batteries according to the +/- polarity indicated.
Screw the battery door compartment on tightly.
NOTE:
- Ensure the water tight O-ring is properly aligned in place to
ensure water resistant.
- The red LED will begin flashing every 12 seconds.

3 1 2 INSTALL MOUNTING POLE

Step 1
Insert the top side of the pole to the square hole of the
weather sensor.
NOTE:
Ensure the pole and sensor's indicator align.
Step 2
Place the nut in the hexagon hole on the sensor, then
insert the screw in other side and tighten it by the
screw driver.
