ASSEMBLY INSTRUCTIONS
®
RiverRidge

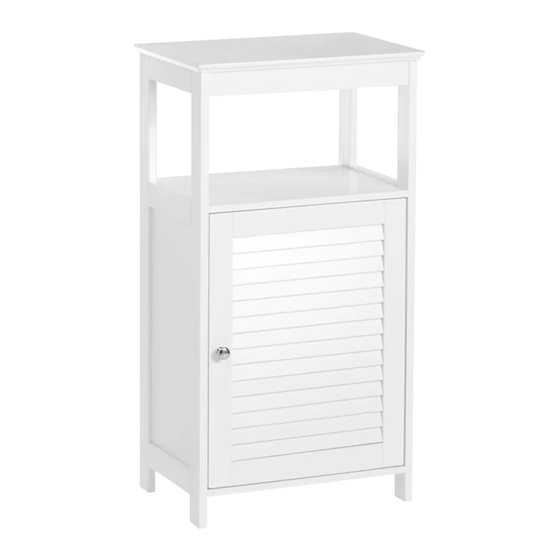

Ellsworth Single Door Floor Cabinet
ITEM #: 06-029 White
ITEM #: 06-030 Espresso
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge Ellsworth 06-029
Summary of Contents for RiverRidge Ellsworth 06-029
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Ellsworth Single Door Floor Cabinet ITEM #: 06-029 White ITEM #: 06-030 Espresso ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. OVERLOADING MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Side Panel Right Side Panel Cross Bar Door Middle Panel Bottom Board Shelf Back Board... - Page 4 PARTS LIST PARTS DESCRIPTION Cam Bolt 12PCS Cam Lock 12PCS Wood Dowel 17PCS Knob Machine Screw (4x18mm) Shelf Holder 4PCS 2PCS Metal Pin Magnet Magnet Plate Screw (3x10mm) Screw (3x14mm) 2PCS Screw (4x30mm) Plastic Anchor Adjustable Anchor Bracket Screw (4x10mm) TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Insert 5 wood dowels (C) into dowel holes on top board (1). STEP 2 1. Screw 4 cam bolts (A) into cam bolt holes on left side panel (2). 2.
- Page 6 STEP 3 1. Screw 4 cam bolts (A) into cam bolt holes on right side panel (3). 2. Insert 6 wood dowels (C) into dowel holes on right side panel (3). STEP 4 1. Insert 1 screw (K) through hole on magnet plate (J) and tighten to door (5). 2.
- Page 7 STEP 5 1. Attach cross bar (4), middle panel (6) and bottom board (7) to left side panel (2) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on cross bar (4), middle panel (6) and bottom board (7). 2.
- Page 8 STEP 7 Attach door (5) to middle panel (6) and bottom board (7) by inserting door pins (G) into holes on middle panel (6) and bottom board (7). STEP 8 Attach right side panel (3) to cross bar (4), middle panel (6) and bottom board (7) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on cross bar (4), middle panel (6) and bottom board (7).
- Page 9 STEP 9 1. Attach top board (1) to both side panels (2), (3) and cross bar (4) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on both side panels (2), (3) and cross bar (4). 2.
-
Page 10: Care Instructions
STEP 11 1. Insert 4 shelf holders (F) into desired positions and put shelf (8) onto shelf holders (F). Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make small mark on wall through hole on bracket (Q). - Page 11 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
