Evinrude ICON Remote Control System
Components

Throttle Actuator

The throttle actuator converts electronic signals
from the ESM into the mechanical motion required
to move the throttle of the outboard.

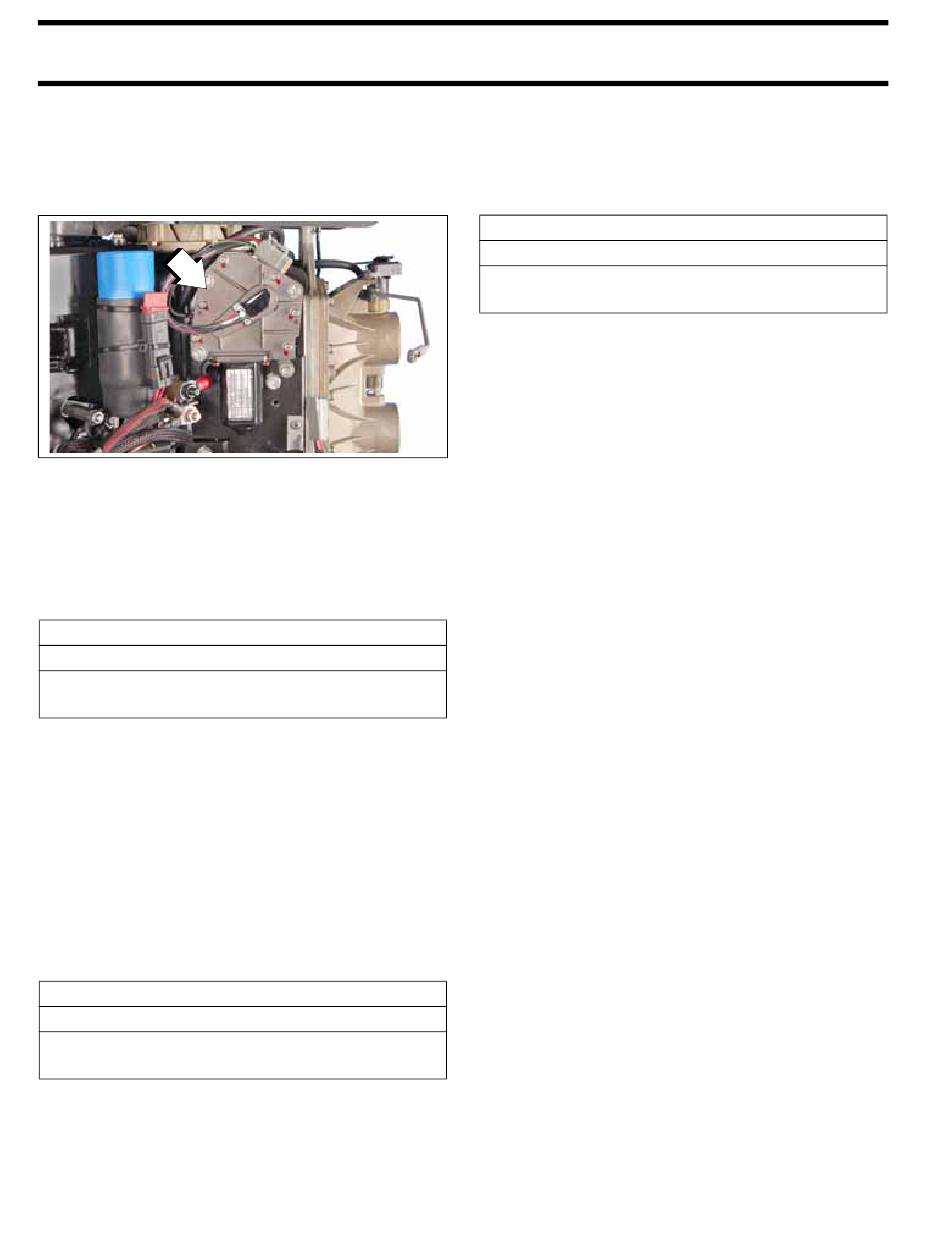

1
Throttle Actuator
If the throttle actuator sensor cannot determine
throttle position, all LED indicators flash until con-
trol levers and shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the engine
that has a fault flashes. The EMM:
Activates S.A.F.E.
Stores service code 108 and 149
Engine Monitor display: RPM reduction, ICON
fault 149, see dealer
If the throttle cannot move toward open position,
the FORWARD or REVERSE indicator LED
flashes (depending on gear position when fault
occurred).
If the throttle cannot move toward closed position,
all LED indicators flash until control levers and
shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the engine
that has a fault flashes. The EMM:
Activates S.A.F.E.
Stores service code 108 and 150
Engine Monitor display: RPM reduction, ICON
fault 150, see dealer
204

ICON System Failsafe Mode

Fault code 108 will appear with another code that
explains why the engine(s) entered RPM reduc-
tion. The EMM:
Stores service code 108
Engine Monitor display: RPM reduction, ICON
007302
Activates S.A.F.E.
fault 108, see dealer
