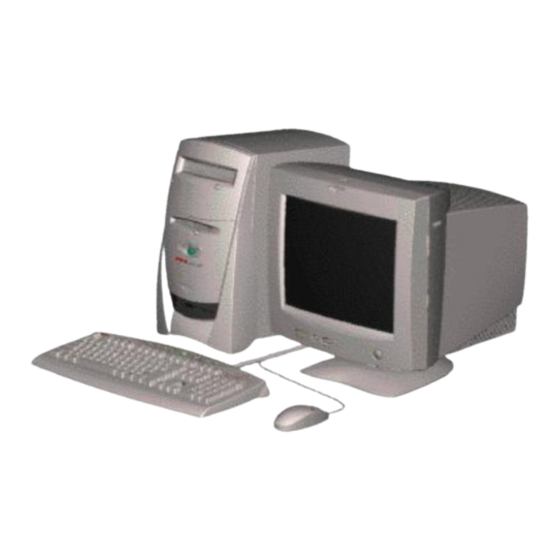

HP Compaq Presario,Presario 5201 Supplementary Manual

System Board Assembly
Processor Board, 352728-101
FP, N/NIC
Processor Board, 320446-101
FP, N/NIC
Processor Board, 352727-101
FP/BX
Processor Board, 352727-102
FP NIC/BX
586/100 System 005490-101
Board w/o MPEG
or Processor
Jumper Settings
Jumper Function
P1 CMOS Clear
P2 CPU Clock
Multiplier
P3 Bus Speed
Select
Volume Two
Presario 5200
Spare Part Config. Codes
480075-001 CD94, CD95,
CD96, CFD4,
CGP2, CGP4,
CGP6, CGP7,
CJDL
320645-001 CFD2, CFD5,
CFD7, CFDC,
CFDG, CFDH,
CFDJ, CGP3,
CJ62, CJD2,
CJD3, CJDC,
CJDK
480077-001 CFF4, CFG7,
CGC3, CJ68
480078-001
234707-001 HVG2, HVH2
Pins Description
1-2 (default) Secure CMOS Power
Open Remove jumper for 10
seconds. Reinstall to clear
CMOS
A1-A2 1.5x
B1-B2
A2-A3 2.0x
B1-B2
A2-A3 2.5x
B2-B3
A1-A2 3.0x
B2-B3
1-2 50 MHz CPU Ext. Bus Freq.
2-3 40 MHz CPU Ext. Bus Freq.
3-4 60 MHz CPU Ext. Bus Freq.
4-5 66 MHz CPU Ext. Bus Freq.
System
5202, 03,
04, 20, 21,
22, 25, 40,
86
5201, 23,
35, 40, 41,
42, 43, 45,
48, 50, 53,
82, 83, 84,
85
5210, 30,
60, 70, 96
5260, 60,
70, 80
5220, 26
3-65
