QUICK SETUP GUIDE
Color Changing
Computer
Speakers with
Bluetooth
NS-2810BT
PACKAGE CONTENTS
• Stereo speakers (2)
• AC adapter (100 - 240V)
• 5 ft. (1.52 m) 3.5 mm to 3.5 mm audio cable
• Quick Setup Guide
FEATURES
• Eight color modes (blue, green, red, purple, yellow,
light blue, repeating six colors, and off ) help set the
mood
• 5W RMS (2.5W per channel) produces quality sound
• Bluetooth connectivity wirelessly streams audio from
your Bluetooth-enabled devices
• 3.5 mm input jack lets you connect to other external
sound sources
• Headphone jack provides an easy connection option
for private listening
Before using your new product, please read these instructions to prevent any damage.
Flat size (W×H): 12.44 × 11.69 in (315.976 × 296.93 mm.)
Final folded size: 4.14 × 11.69 in (105.156 × 296.93 mm.)

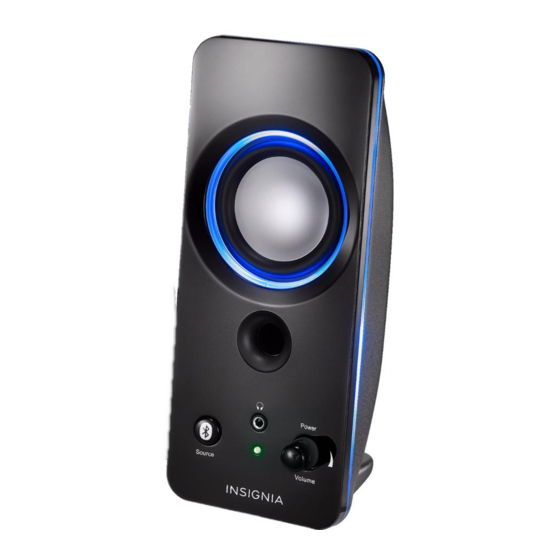

Front
Headphone
output jack
Power / master
Source button
volume control
Status LED
Back
RIGHT
LIGHT AUX
LIGHT button AUX (3.5 mm
auxiliary input)
connection
CONNECTING POWER
RIGHT
LIGHT AUX
• Plug your speaker's USB cable into the AC adapter,
then plug the adapter into a power outlet.
TURNING YOUR SPEAKERS ON AND OFF
• Rotate the knob clockwise to turn on your speakers
and adjust the volume. Rotate counter-clockwise to
turn off your speakers.
CONNECTING WITH BLUETOOTH
1 Make sure that your Bluetooth device is turned on and
within 33 feet (10 meters) of your speakers.
2 Turn on your speakers. The status LED blinks blue to
indicate that they are in pairing mode. If the status LED
is red, press the Source button once to switch to
Bluetooth mode.
3 Turn on your Bluetooth device, then turn on Bluetooth.
Set your device to pairing mode, then select Insignia
NS-2810BT. See the instructions that came with your
Bluetooth device for information about pairing.
4 If you are asked for a password, enter 0000. When
pairing is complete, the LED lights solid blue.
STATUS LED
STATUS LED DESCRIPTION
Blinks blue Speakers are in pairing mode
Solid blue Speakers are paired
Solid red AUX mode
RECONNECTING WITH A PREVIOUS DEVICE
• Make sure that the last paired Bluetooth device is near
your speakers.
• When your speakers are on, they automatically search
for and try to connect to the last paired device.
FORCE PAIRING AND CONNECTING WITH A
NEW DEVICE
• If you have paired your speakers to a device and want
to pair with a different device, press and hold the
Source button for three seconds until the blue LED
begins blinking. Search your new device's Bluetooth list
for Insignia NS-2810BT, then tap to pair and connect.
USING A WIRED CONNECTION
1 Connect an external sound source, such as an MP3
player, by plugging the included audio cable into the
AUX jack on the back of the control speaker and the
LEFT
sound source.
3.5 mm audio cable
2 Press the Source button to enter AUX mode. The
status LED lights red.
RIGHT LEFT
LIGHT AUX
