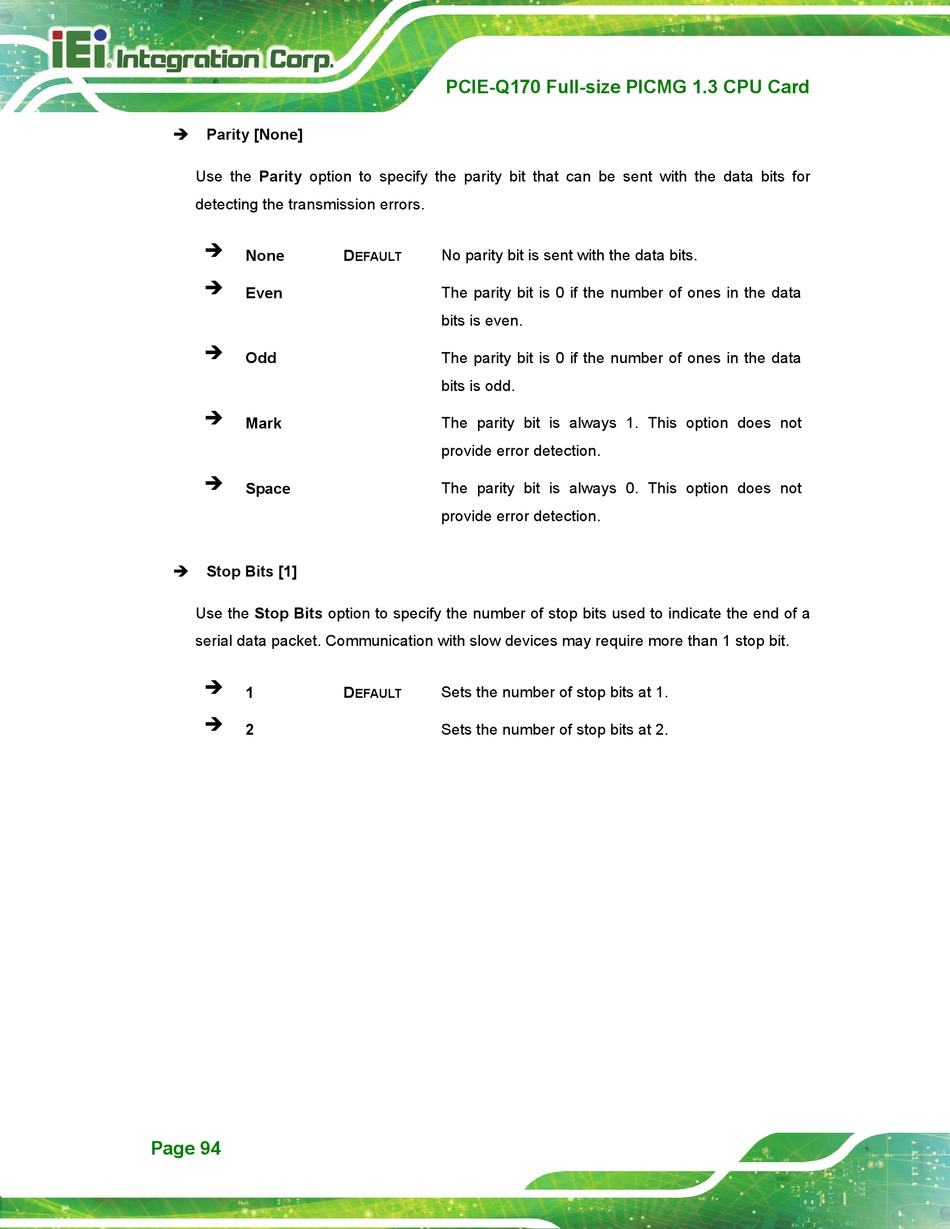

Parity [None]

Use the Parity option to specify the parity bit that can be sent with the data bits for
detecting the transmission errors.

None

Even

Odd

Mark

Space
Stop Bits [1]

Use the Stop Bits option to specify the number of stop bits used to indicate the end of a
serial data packet. Communication with slow devices may require more than 1 stop bit.

1

2
Page 94
PCIE-Q170 Full-size PICMG 1.3 CPU Card
D No parity bit is sent with the data bits.
EFAULT
The parity bit is 0 if the number of ones in the data
bits is even.
The parity bit is 0 if the number of ones in the data
bits is odd.
The parity bit is always 1. This option does not
provide error detection.
The parity bit is always 0. This option does not
provide error detection.
D Sets the number of stop bits at 1.
EFAULT
Sets the number of stop bits at 2.
