- Page 1 A few simple steps to ensure perfect water, every time.
- Page 3 Use and Care Guide MODELS: A10-TL Registration Please visit the website below to register your new water cooler within the first 30 days of purchase. Registration within the first 30 days will activate your one year warranty. www.avalonh2o.com/register-my-avalon-cooler Please keep your model number, order number and purchase date for future support.
-
Page 4: Table Of Contents
Contents About Your Water Cooler Meet Your Avalon Product Part Names Indicator Lights Tech Specs Getting Started Unpacking 9-10 Operation Instructions Cleaning 12-14 Rinsing, Cleaning and Draining 15-16 Cleaning Troubleshooting 18-19 Safety 21-22... -
Page 5: About Your Water Cooler

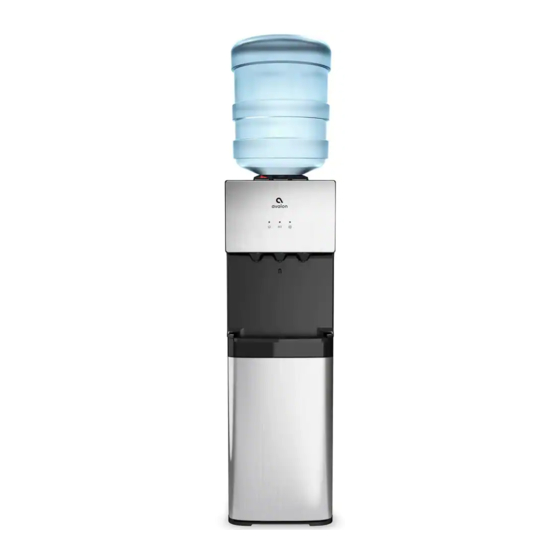

About Your Water Cooler Meet Your Avalon Product Attractive Design Custom Temperature Top Loading Attractive stainless Piping hot, Suitable for 3 or steel design with 3 room temperature 5 gallon bottles water spouts or crisp cold water UL Listed Energy Star Approved... -
Page 6: Part Names
About Your Water Cooler Part Names 1. Power Indicator Light 3. Cooling Indicator Light 2. Heating Indicator Light 6. Room Temperature Water Push Button 4. Hot Water 7. Cold Water Push Button Push Button 8. Bottle Supporter 5. Child Safety Lock 11. - Page 7 About Your Water Cooler Part Names 14. Heating Switch 13. Cooling Switch 15. Power Cord 16. Condenser 17. Drain Outlet...
-
Page 8: Indicator Lights
About Your Water Cooler Indicator Lights Power Indicator Light This light will remain on as long as the water cooler is plugged in to indicate that the cooler is on. Heating Indicator Light This light will indicate when the water is heating. The light will remain on while the water is heating and will turn off when it has reached the correct temperature of 185°F. -
Page 9: Tech Specs
About Your Water Cooler Tech Specs Model A10-TL Hot/Cold/Room Temp Output 1.2L/min / 1.2L/min /1.0L/min Hot Water Capacity 4 L/H ( ≥ 185°F) Hot Tank Volume 1.02 Liters Cold Water Capacity 2 L/H ( ≤ 47°F) Cold Tank Volume 3 Liters Product Size 13”(L)x12”(W)x40”(H) -
Page 10: Getting Started
Getting Started... -
Page 11: Unpacking
Getting Started Unpacking Your Avalon Water Cooler The unit has been cleaned prior to departing from the factory. To remove any dust and debris that may collect during shipping we recommend cleaning the unit prior to installation. For cleaning instructions see pages 12-16. -
Page 12: Operation Instructions
Getting Started Operation Instructions Do not plug in the machine or turn on the heating (#14) and cooling (#13) switches until water has begun to dispense from the cold (#5) and hot (#8) water spout. 1. Remove any label or sticker from 2. - Page 13 Getting Started Operation Instructions 3. Depress the hot (#4) cold (#7) and 4. Once water is dispensing from the room temperature (#6) water push both spouts insert the power plug button to dispense water from each into a power socket. Turn on (I) the spout.
- Page 14 Getting Started Operation Instructions 5. Once the switches are in the on (I) position 6. When the water has reached the the heating indicator light (#2) and the appropriate temperatures for hot and cooling indicator light (#3) will turn on. It will cold the indicator lights will turn off take about 15 –...
- Page 15 Cleaning...
-
Page 16: Rinsing, Cleaning And Draining
Cleaning Rinsing, Cleaning, and Draining To prolong the lifetime of the machine, it is recommended that the unit be cleaned and sanitized manually about every six months. To clean the outside of the unit Use a disinfectant of your choice to wipe down the outside of the machine. Disinfectant does not come with this unit. - Page 17 Cleaning Rinsing, Cleaning, and Draining 3. Dispense about 2 liters of 4. Place a large bucket beneath the water from the unit into a bucket drain outlet (#17) located on the back by pressing dispense buttons for of the unit. Remove the drain cover and each temperature.
- Page 18 Cleaning Rinsing, Cleaning, and Draining 5. Remove any remaining water in 6. After draining is complete, the tanks by dispensing water from replace the drain cover and the hot (#5) and cold (#9) water plug and use the machine spouts into a bucket. as normal.
-
Page 19: Cleaning
Cleaning Cleaning To remove mineral deposits that may have built up inside the the cold tank, mix 4 L of water with 200 g of citric acid crystals (not included) or a cleaning solution of your choice. 1. Twist or lift off the bottle 2. - Page 20 Cleaning Cleaning 3. Plug in the power cord and turn on 4. Turn off (O) the heating switch (I) the heating switch (#14). Allow the (#14) and allow the liquid mixture to water to heat for 15 minutes. cool down for 20 minutes. 15 min 20 min 5.
-
Page 21: Troubleshooting
Troubleshooting... - Page 22 Troubleshooting Troubleshooting If you are having trouble with your water cooler please see the following solutions. You can also view our trouble shooting videos at the website below. Please feel free to contact us with any questions. 1-800-256-0695 support@avalonh2o.com www.avalonh2o.com...
- Page 23 Troubleshooting Troubleshooting Water not dispensing at a hot or cold temperature This could be caused by an over consumption of water in a short period of time causing the tanks to empty. Please allow 5 to 10 minutes for the water cooler tanks to refill. Allow the proper time for the water to heat and cool.
-
Page 24: Safety
Safety... - Page 25 Safety Safety To reduce risk of injury and property damage, user must read this entire guide before assembling, installing and operating the dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use this properly can cause personal injury.
- Page 26 Safety Safety • Ensure dispenser is unplugged prior to cleaning. • Never allow children to dispense hot water without proper and direct supervision. Unplug unit to prevent unsupervised use by children. • Service should be performed only by a certified technician. •...
