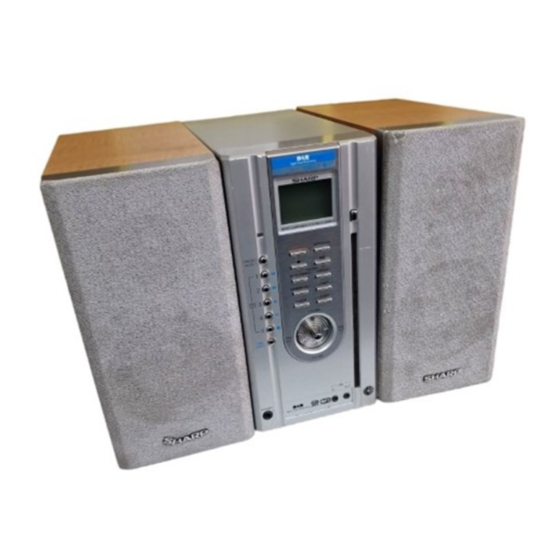

Sharp XL-DAB9H Operation Manual
Hide thumbs Also See for XL-DAB9H:

Advertisement

Quick Links

MIKRO KOMPONENTEN SYSTEM
MICRO-CHAÎNE
SISTEMA MICRO
MIKRO KOMPONENT SYSTEM
MICRO SISTEMI
MICRO SYSTEEM
SISTEMA DE MICRO COMPONENTE
MICRO COMPONENT SYSTEM
MODELL
MODELLO
MODÈLE
MODEL
MODELO
MODELO
MODELL
MODEL
XL-DAB9H
BEDIENUNGSANLEITUNG
MANUALE DI ISTRUZIONI
MODE D'EMPLOI
GEBRUIKSAANWIJZING
MANUAL DE MANEJO
MANUAL DE OPERAÇÃO
BRUKSANVISNING
OPERATION MANUAL
Mikro Komponenten System XL-DAB9H besteht aus XL-
DAB9H (Hauptgerät) und CP-DAB9H (Lautsprechersystem).
Micro-chaîne XL-DAB9H composée de XL-DAB9H (appareil
principal) et CP-DAB9H (enceinte acoustique).
Sistema micro XL-DAB9H que consta de XL-DAB9H (aparato
principal) y CP-DAB9H (sistema de altavoces).
XL-DAB9H mikro komponent system bestående av XL-DAB9H
(huvudenhet) och CP-DAB9H (högtalarsystem).
Micro sistemi XL-DAB9H composto da XL-DAB9H (apparec-
chio principale) e CP-DAB9H (sistema di diffusori).
XL-DAB9H micro systeem bestaande uit XL-DAB9H (hoofd-
toestel) en CP-DAB9H (luidsprekersysteem).
XL-DAB9H Sistema de Micro Componente composto de XL-
DAB9H (unidade principal) e CP-DAB9H (sistema de alto-fal-
ante).
XL-DAB9H Micro Component System consisting of XL-DAB9H
(main unit) and CP-DAB9H (speaker system).
05/7/12
XL-DAB9H(H)_FRONT.fm
DEUTSCH
1
Siehe Seiten i
bis x und D-1
bis D-38.
FRANÇAIS
2
Se reporter aux
pages i à x et
F-1 à F-38.
ESPAÑOL
3
Consulte las
páginas i a x y
S-1 a S-38.
SVENSKA
4
Hänvisa till
sidorna i till x
och V-1 till V-38.
ITALIANO
5
Leggere le
pagine i a x e
I-1 a I-38.
NEDERLANDS
6
Raadpleeg de
bladzijden i t/m x
en N-1 t/m N-38.
PORTUGUÊS
7
Consulte as
páginas i a x e
P-1 a P-38.
ENGLISH
8
Please refer to
pages i to x and
E-1 to E-38.
TINSZA071SJZZ

Advertisement

Table of Contents
loading

Summary of Contents for Sharp XL-DAB9H

  • Page 1 Micro-chaîne XL-DAB9H composée de XL-DAB9H (appareil bis x und D-1 principal) et CP-DAB9H (enceinte acoustique). bis D-38. MIKRO KOMPONENTEN SYSTEM Sistema micro XL-DAB9H que consta de XL-DAB9H (aparato principal) y CP-DAB9H (sistema de altavoces). MICRO-CHAÎNE FRANÇAIS XL-DAB9H mikro komponent system bestående av XL-DAB9H...
  • Page 2 Spannungen vorhanden. Vor Ausführung von irgendwelchen Kundendienstarbeiten oder bei längerer Nichtverwendung des ● Dichiarazione di conformità Gerätes stets den Netzstecker aus der Netzsteckdose ziehen. La società SHARP ELECTRONICS EUROPE GmbH dichiara che il prodotto SHARP MINI SISTEMI CD-XP300H MICRO SISTEMI XL-DAB9H è...
  • Page 3 XL-DAB9H ● Cuando el botón ON/STAND-BY está puesto en la posición ● Wanneer de ON/STAND-BY toets in de STAND-BY stand XL-DAB9H STAND-BY, todavía hay tensión dentro del aparato. staat, loopt er nog steeds stroom (netspanning) in het toestel. Cuando el botón ON/STAND-BY está puesto en la posición...
  • Page 4 XL-DAB9H ● Vorsicht: XL-DAB9H ● Når ON/STAND-BY-knappen er sat i STAND-BY positionen, Das Gerät weder Tropf- noch Spritzwasser aussetzen. er der stadig netspaending til stede i apparatet. Ansonsten besteht die Gefahr eines Brandes oder Når ON/STAND-BY-knappen er sat i STAND-BY position, elektrischen Schlages.
  • Page 5 XL-DAB9H ● Advarsel: Dieses Produkt ist ein Laserprodukt der Klasse 1. XL-DAB9H Til at forbygge ild og stød risiko, lad vaere med at undsaette Ce produit est classifié comme étant un LASER DE CLASSE 1. denne indretning for drypning eller overstaenkning. Der må...
  • Page 6 XL-DAB9H ● VORSICHT ● LET OP XL-DAB9H Verwendung von Regelungen oder Einstellungen bzw. Gebruik van regelaars, het maken van instellingen, gebruik Durchführung von anderen Verfahren als die hierin of handelingen anders dan in deze gebruiksaanwijzing angegebenen kann zum Aussetzen gefährlicher Strahlung vermeld, kan gevaarlijke straling blootleggen.
  • Page 7 XL-DAB9H Eigenschaften der Laserdiode XL-DAB9H Material: GaAIAs Wellenlänge: 780 nm Emissionsdauer: kontinuierlich Laser-Ausgang: max. 0,6 mW Caractéristiques de la diode laser Matière: GaAIAs Longueur d’onde: 780 nm Durée d’émission: ininterrompue Puissance de sortie laser maximale: 0,6 mW Características del diodo láser...
  • Page 8 : Bitte wenden Sie sich an Ihren SHARP Fachhändler, der Veuillez contacter votre revendeur SHARP qui vous Sie über die Rücknahme des Produkts informieren kann.
  • Page 9 återlämnas till lokala Por favor póngase en contacto con su distribuidor återvinningsstationer. SHARP, quien le informará sobre la recogida del 2. Länder utanför EU producto. Puede ser que le cobren los costes de recogida y reciclaje. Puede ser que los productos de Kontakta de lokala myndigheterna och ta reda på...
  • Page 10 1. Nell'Unione europea en als u dit wilt weggooien: Se il prodotto è impiegato a scopi commerciali, Neem contact op met uw SHARP distributeur die u procedere come segue per eliminarlo. inlichtingen verschaft over de terugname van het product. Contattare il proprio rivenditore SHARP che fornirà...
  • Page 11 Se o produto for usado para fins comerciais e quiser want to discard it: eliminá-lo: Please contact your SHARP dealer who will inform you Contacte o seu revendedor SHARP que irá informá-lo sobre a melhor forma de eliminar o produto. Poderá ter de about the take-back of the product.
  • Page 12: Table Of Contents

    ENGLISH XL-DAB9H Introduction Contents ENGLISH Thank you for purchasing this SHARP product. To obtain the best Page performance from this product, please read this manual carefully. It General Information will guide you in operating your SHARP product. Precautions ......... . 2 Special note Controls and indicators .
  • Page 13: Precautions

    There must also be a minimum of 20 cm of free dent causing damage. SHARP will not be held responsible for any space on the top of the unit.
  • Page 14: Controls And Indicators

    Controls and indicators XL-DAB9H ENGLISH Reference page 1. On/Stand-by Button ....... . 7 2.
  • Page 15 XL-DAB9H ENGLISH Reference page 1. DAB Indicator ........18 2.
  • Page 16 Controls and indicators (continued) XL-DAB9H ENGLISH Reference page 1. Remote Control Transmitter ......8 2. Fast Reverse/Tuning Down Button ... . . 14, 19, 26 3.
  • Page 17: System Connections

    System connections XL-DAB9H ENGLISH Speaker connection Connect the wire with the white line to the minus (-) terminal and the Make sure to unplug the AC power lead before making plain wire to the plus (+) terminal. any connections. Caution:...
  • Page 18 System connections (continued) XL-DAB9H ENGLISH DAB aerial adjustment To turn the power on Press the ON/STAND-BY button to turn the power on. Raise and extend the telescopic rod aerial, then adjust the position and length for the best re- ception.
  • Page 19: Remote Control

    Remote control XL-DAB9H ENGLISH Battery installation Notes concerning use: Replace the batteries if the operating distance is reduced or if the Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar). operation becomes erratic. Periodically clean the transmitter on the remote control and the 1 Remove the battery cover.
  • Page 20: Sound Control

    Sound control XL-DAB9H ENGLISH Adjusting the volume Main unit operation: Move the operation lever toward VOLUME + or VOLUME - to increase or decrease the volume. Remote control operation: Press the VOLUME (- or +) button to increase or decrease the vol- ume.
  • Page 21: Setting The Clock

    Setting the clock XL-DAB9H ENGLISH Within 1 minute, press the PRESET ( ) button to ad- just the hour and then press the MEMORY button. Press the PRESET ( ) button once to advance the time by 1 hour. Hold it down to advance continuously.
  • Page 22: Cd Or Mp3/Wma Disc Playback

    CD or MP3/WMA disc playback XL-DAB9H ENGLISH This system can play back a standard CD, CD-R/RW in the CD for- mat and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the equipment used for recording.
  • Page 23 XL-DAB9H ENGLISH Press the ON/STAND-BY button to turn the power on. Press the button to start playback from track 1. Press the FUNCTION button until "CD NO DISC" appears on the display. When operating with the remote control, press the CD button.
  • Page 24 CD or MP3/WMA disc playback (continued) XL-DAB9H ENGLISH To change the display (CD-R/RW discs Caution when inserting disc: recorded in the MP3 or WMA format only) Whilst in the stop mode or playback mode, press the CD DISPLAY Do not touch the playback side.
  • Page 25: Advanced Disc Playback

    Advanced disc playback XL-DAB9H ENGLISH To locate the beginning of a track To move to the beginning of the next track: Press the button for less than 0.5 seconds during playback. To restart the track being played: Press the button for less than 0.5 seconds during playback.
  • Page 26 Advanced disc playback (continued) XL-DAB9H ENGLISH Direct search of the track Notes: The selected track can be started simply by pressing the direct By using the direct search buttons, the desired tracks can be search buttons during playback. (It is not necessary to press the played.
  • Page 27 XL-DAB9H ENGLISH Repeat play Random play All tracks or a programmed sequence can be continuously The tracks can be played in random order automatically. repeated. Whilst in the stop mode, press the RANDOM button and the button se- To repeat all tracks: quentially to begin random play.
  • Page 28 Advanced disc playback (continued) XL-DAB9H ENGLISH Programmed play Notes: The programmed sequence is cancelled when the disc is You can choose up to 32 selections for playback in the order you removed. like. If you press the ON/STAND-BY button to enter the stand-by...
  • Page 29: Listening To The Dab

    Listening to the DAB XL-DAB9H ENGLISH About DAB (Digital Audio Broadcasting) Auto tune Digital Audio Broadcasting is a digital transmission system where When turned on for the first time, the unit scans radio stations automatically to create a station list.
  • Page 30 Listening to the DAB (continued) XL-DAB9H ENGLISH Selecting a station in the station list Once a DAB station is received, you can select stations in the station list. Press the FUNCTION button until "DAB" appears on the display. When operating with the remote control, press the TUNER (BAND) button to select "DAB".
  • Page 31 XL-DAB9H ENGLISH Manual tune Changing the station order You can manually store stations which Auto tune cannot find. If You can change the order of stations in the station list. reception is poor, you can adjust the sensitivity. Press the FUNCTION button until "DAB" appears on the Manual tune is only available after Auto tune.
  • Page 32 Listening to the DAB (continued) XL-DAB9H ENGLISH Adjusting the DRC value When the volume is low, adjust the DRC (Dynamic Range Control) value to make the sound more audible (may not available for some broadcast material). Press the FUNCTION button until "DAB" appears on the display.
  • Page 33: Listening To The Memorised Dab Station

    Listening to the memorised DAB station XL-DAB9H ENGLISH Hold down the PRESET button (1 - 5) for 2 seconds or more to store the station in memory. Repeat steps 1 - 3 to set other stations, or to change a pre- set station.
  • Page 34: Listening To Dab Stations In The Time Shift Mode

    Listening to DAB stations in the time shift mode XL-DAB9H ENGLISH Use these functions when you are missing your favourite music for Rewind in the time shift mode answering calls, etc. Received data is stored in memory, and you can listen to the music and view the DLS (Dynamic Label Segment) Whilst receiving a DAB station, press the TIME SHIFT but- from the desired position afterwards.
  • Page 35 XL-DAB9H ENGLISH Pause in the time shift mode Hold in the time shift mode In the time shift mode, you can pause a DAB broadcast and listen to When you press the (hold) button in the time shift mode, you can repeatedly listen to broadcast content of several minutes before you the content from the desired position.
  • Page 36: Changing The Information Display

    Changing the information display XL-DAB9H ENGLISH You can switch information in the lower part of display. Press the DISPLAY/INFO button. Each time the button is pressed, the information display changes in the following order. When "Not available" appears, the DISPLAY/INFO button does not allow you to change the dis- play.
  • Page 37: Listening To The Fm

    Listening to the FM XL-DAB9H ENGLISH Press the ON/STAND-BY button to turn the power on. Press the FUNCTION button until "FM" appears on the dis- play. When operating with the remote control, press the TUNER (BAND) button to select "FM".
  • Page 38: Listening To The Memorised Fm Station

    Listening to the memorised FM station XL-DAB9H ENGLISH Memorising a station To recall a memorised station You can store 40 FM stations in memory and recall them at the push Move the operation lever toward PRESET or PRESET for less of a button.
  • Page 39: Using The Radio Data System (Rds)

    Using the Radio Data System (RDS) XL-DAB9H ENGLISH RDS is a broadcasting service which a growing number of FM Information provided by RDS stations provide. These FM stations send additional signals Each time the DISPLAY/INFO button is pressed, the display will along with their regular programme signals.
  • Page 40 Using the Radio Data System (RDS) (continued) XL-DAB9H ENGLISH Descriptions of the PTY (Programme Type) codes, TP (Traffic LIGHT M Classical music for general, rather than specialist Programme) and TA (Traffic Announcement). appreciation. Examples of music in this category You can search for and receive the following PTY, TP and TA sig- are instrumental music, and vocal or choral works.
  • Page 41 XL-DAB9H ENGLISH Using the Auto Station Programme Memory COUNTRY Songs which originate from, or continue the musical (ASPM) tradition of the American Southern States. Charac- Whilst in the ASPM operation mode, the tuner will automatically terised by a straightforward melody and narrative search for new RDS stations.
  • Page 42 Using the Radio Data System (RDS) (continued) XL-DAB9H ENGLISH To stop the ASPM operation before it is complete: To store a station name again if the wrong name was stored in Press the ASPM button whilst it is scanning for stations.
  • Page 43 XL-DAB9H ENGLISH To recall stations in memory Notes: If the display has stopped flashing, start again from step 2. If the To specify programme types and select stations (PTY search): unit finds a desired programme type, the corresponding channel You can search a station by specifying the programme type (news, number will flash for about 4 seconds, and then the station name sports, traffic programme, etc.
  • Page 44: Timer And Sleep Operation

    Timer and sleep operation XL-DAB9H ENGLISH Timer playback: Timer playback The unit turns on and plays the desired source (CD, DAB or FM) at Press the ON/STAND-BY button to turn the power on. a preset time. Press the FUNCTION button to select the desired source Sleep operation: (CD, DAB or FM).
  • Page 45 XL-DAB9H ENGLISH Sleep operation When the preset time is reached, playback will start. Play back the desired sound source. The volume will increase gradually until it reaches the volume you were listening at before your system enters the timer stand- Press the SLEEP button.
  • Page 46: Enhancing Your System

    Enhancing your system XL-DAB9H ENGLISH Note: The LINE IN/OUT sockets accept 2.5 mm mini plugs only. Use the supplied 3.5 mm to 2.5 mm plug adaptor. (Only one plug adaptor is supplied with the unit.) Recording equipment To audio input sockets...
  • Page 47: Troubleshooting Chart

    Symptom Possible cause If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre. The FM makes unusual Is the unit placed near the TV or noises continuously.
  • Page 48: Maintenance

    Maintenance Troubleshooting chart (continued) XL-DAB9H ENGLISH Cleaning the cabinet If trouble occurs Periodically wipe the cabinet with a soft cloth and a diluted soap When this product is subjected to strong external interference solution, then with a dry cloth. (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may...
  • Page 49: Specifications

    Specifications XL-DAB9H ENGLISH As part of our policy of continuous improvement, SHARP reserves CD player the right to make design and specification changes for product Type Compact disc player improvement without prior notice. The performance specification fig- ures indicated are nominal values of production units. There may be...
