Sharp FP-A80U Operation Manual
Hide thumbs Also See for FP-A80U:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

FP-A80U
FP-A60U
Free standing type
Tipo vertical soporte
Device of this mark is a trademark of Sharp Corporation.
"Plasmacluster" and "Device of a cluster of grapes" are
registered trademarks of Sharp Corporation in Japan,
USA and elsewhere.
This product earned the ENERGY STAR by meeting
strict energy efficiency guidelines set by the US EPA.
US EPA does not endorse any manufacturer claims of
healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR qualified
model is measured based on a ratio between the model's
CADR for Dust and the electrical energy it consumes, or
CADR/Watt.

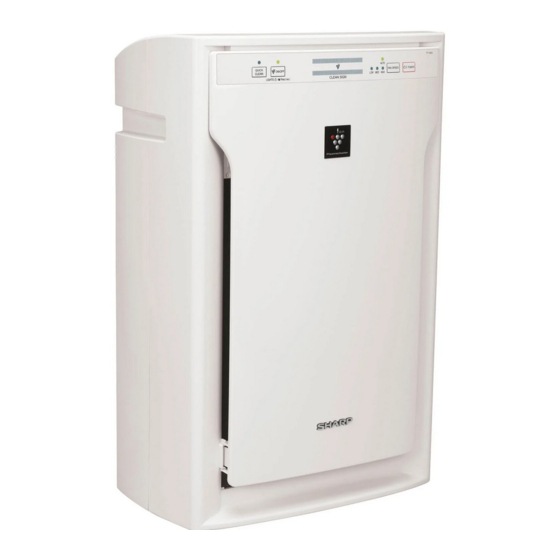

AIR PURIFIER
OPERATION MANUAL
PURIFICADOR DE AIRE
MANUAL DE OPERACIÓN

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Sharp FP-A80U

  • Page 1 PURIFICADOR DE AIRE MANUAL DE OPERACIÓN Free standing type Tipo vertical soporte Device of this mark is a trademark of Sharp Corporation. “Plasmacluster” and “Device of a cluster of grapes” are registered trademarks of Sharp Corporation in Japan, USA and elsewhere.
  • Page 2 Please read before operating your new Air Purifier Some odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor. Depending on the usage environment, especially when the product is used in a condition significantly more severe than household use, this odor may become strong in a shorter period than expected.
  • Page 3: Table Of Contents

    *From the air that is drawn through the fil- ter system. SPECIFICATIONS E-13 ........Room size : up to 454 sq.ft (FP-A80U) up to 341 sq.ft (FP-A60U) Declaration of Conformity SHARP AIR PURIFIER FP-A80U / FP-A60U This device complies with Part 18 of FCC rules.
  • Page 4 Address City State Telephone TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation...
  • Page 5: Consumer Limited Warranty(U.s

    Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage.
  • Page 6: Important Safety Instructions

    • Do not use near flammable gases and material such as insecticides, fragrances, and lit cigarettes. • Do not use in humid place such as bathrooms. • Contact the nearest Sharp Approved Service Center for any problems, adjustments, or repairs. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 7 CAUTIONS CONCERNING OPERATION • Do not block any opening. • Do not use the unit near or on hot objects, such as stoves or heaters or radiators. • Do not use the unit on its side. • Always hold the handle on both sides of the unit when moving it. Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in bodily injury.
  • Page 8: Part Names

    PART NAMES ILLUSTRATIVE DIAGRAM Air Outlet Air Inlet Handle Main Unit HEPA Filter BACK Deodorizing Pre Filter Dust Sensor (FP-A80U Only) Date Label Power Cord Plug INCLUDED • Operation manual...
  • Page 9 15 16 17 FP-A60U QUICK CLEAN Button / Quick Clean Indicator Light (green) (Plasmacluster) ON / OFF Button / (Plasmacluster) ON / OFF Indicator Light (green) CLEAN SIGN (FP-A80U only) The color changes according to the air condition. Green Yellow Clean Very Impure...
  • Page 10: Filter Installation

    FILTER INSTALLATION Unplug the electrical cord before performing any maintenance. To maintain the quality of the filters, they are installed in the main unit and packed in plas- tic bags. Be sure to remove the filters from the plastic bags before using the unit. Remove the front Panel.
  • Page 11: Operation

    OPERATION FP-A80U FP-A60U Press to start / stop. CLEAN SIGN (FP-A80U) Unless the power cord has been unplugged, The Dust Sensor automatically moni- the operation starts in the previous mode it tors dust pollution level and adjusts was operated in.
  • Page 12: Maintenance

    Clean the filter and Dust sensor. the unit. Gently remove dust from the filter, using a vacuum cleaner with attachment or similar tool. Dust sensor (FP-A80U only) Deodorizing Pre filter Dust Sensor (FP-A80U only) Sensor cover Sensor filter Remove the Sensor cover, and remove the dust on the Sensor filter.
  • Page 13 About 6 months after opening HEPA filter Replacement Filters Deodorizing Pre filter • HEPA filter : 1 unit Model : FZ-A80HFU (for FP-A80U) FZ-A60HFU (for FP-A60U) • Deodorizing Pre filter : 1 unit Model : FZ-A80DFU (both units) Replace the filters (Refer to E-8) Record the date when you replace the filters.
  • Page 14: Troubleshooting

    TROUBLESHOOTING Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction. PROBLEM SOLUTION (not a malfunction) The unit leaves smoke and • Clean or replace the filters as needed. (Refer to E-11) •...
  • Page 15: Specifications

    SPECIFICATIONS Model FP-A80U FP-A60U Power supply 120 V 60 Hz Fan Speed Adjustmen Speed Rated Power (W) Operation Fan Speed (CFM) Noise Level (dBA) Recommended Room Size 454sq.ft (42.2m 341sq.ft (31.7m CADR (Dust/Smoke/Pollen) 303 / 293 / 360 232 / 220 / 238...
  • Page 16 Por favor leer antes de poner en funcionamiento su nuevo purificador de aire Algunos ingredientes de olor absorbidos por los filtros pueden separarse y descargarse a través de la salida de aire y resultar en un olor adicional. Dependiendo del entorno de uso, especialmente cuando el producto es utilizado en una condición significativamente más severa que un uso doméstico, este olor puede volverse fuerte en un período de tiempo más corto del esperado.
  • Page 17 ......vos y negativos. *Desde el aire que se extrae del sistema de filtrado. Área: hasta 454 pies cuadrados (FP-A80U) hasta 341 pies cuadrados (FP-A60U) Déclaration de conformité PURIFICADOR DE AIRE FP-A80U / FP-A60U Este dispositivo cumple con la Sección 18 de las regulaciones FCC.
  • Page 18: Instrucciones De Seguridad Importantes

    • No utilizar en sitios húmedos como en baños. • Contactar al Centro de Servicio Autorizado de Sharp más cercano por cualquier, ajuste o reparación. • Este dispositivo no está hecho para ser utilizado por personas (incluyendo a niños) con capacid- ades físicas, sensoriales o mentales disminuidas, o con falta de experiencia y conocimiento, a no...
  • Page 19 PRECAUCIONES DE OPERACIÓN • No bloquee ninguna abertura. • No utilice la unidad cerca o sobre objetos calientes, como por ejemplo estufas, calentadores o ra- diadores. • No utilice esta unidad sobre su costado. • Siempre sujete la agarradera en ambos lados de la unidad al moverla. El sujetar el panel al cargarlo puede ocasionar que se desprenda, haciendo caer la unidad y re- sultando así...
  • Page 20: Nombres De Las Partes

    NOMBRES DE LAS PARTES DIAGRAMA ILUSTRATIVO Salida de aire Toma de aire Manija Unidad principal Filtro HEPA VOLVER Prefiltro deodorizante Sensor de polvo (solamente en el FP-A80U) Etiqueta de fecha (Date Label) Cable de Alimentación Enchufe INCLUYE • Manual de operación...
  • Page 21 Quick Clean (Limpieza rápida) (verde) Botón ON / OFF (Plasmacluster) / Indicador de luz (verde) de ON / OFF (Plasmacluster) CLEAN SIGN (Indicador de limpieza) (Solamente para el FP-A80U) El color cambia en conformidad con la condición del aire. Verde...
  • Page 22: Instalación Del Filtro

    INSTALACIÓN DEL FILTRO Desconecte el cable de alimentación antes de realizar cualquier mantenimiento. Para mantener la calidad de los filtros, estos están instalados en la unidad principal y em- pacados en bolsas plásticas. Asegúrese de quitar los filtros de las bolsas plásticas antes de utilizar la unidad.
  • Page 23: Funcionamiento

    FUNCIONAMIENTO FP-A80U FP-A60U Presione para iniciar/detener. CLEAN SIGN (Indicador A no ser que se haya desconectado el cable de limpieza) (FP-A80U) de alimentación, el funcionamiento se inicia en el modo anterior en el que se operó. El Sensor de Polvo controla automáti- camente el nivel de contaminación de...
  • Page 24: Mantenimiento

    Sensor de polvo (solamente en el FP-A80U) Prefiltro deodorizante Sensor de polvo (solamente en el FP-A80U) Cubierta del sensor Filtro del sensor Quite la cubierta del sensor y quite el polvo sobre el filtro del sensor. Si está muy sucio, lávelo con agua y séquelo...
  • Page 25 Filtro HEPA Filtros de reemplazo Prefiltro deodorizante • Filtro HEPA : 1 unidad Modelo : FZ-A80HFU (Para el FP-A80U) FZ-A60HFU (Para el FP-A60U) • Prefiltro deodorizante : 1 unidad Modelo : FZ-A80DFU (ambas unidades) Reemplace los filtros (Consulte S-6) Registre la fecha cuando reemplace los filtros.
  • Page 26: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS Antes de llamar a mantenimiento, por favor revise la tabla de solución de problemas a continuación, ya que el problema puede no ser un mal funcionamiento de la unidad. PROBLEMA SOLUCIÓN (no es un mal funcionamiento) La unidad deja humo y olores •...
  • Page 27: Especificaciones

    ESPECIFICACIONES Modelo FP-A80U FP-A60U Suministro de energía 120V 60Hz Manejo de Ajuste de la velocidad del MÁX BAJO MÁX BAJO ventilador la velo- cidad del Potencia nominal (W) ventilador Velocidad del ventilador (PCM) Nivel de ruido (dBA) Dimensiones de la habitación 42,2m (454sq.ft)
  • Page 28 MEMO S-12...
  • Page 30 SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163 U.S.A. SHARP CORPORATION Osaka, Japan Printed in Thailand TINS-A465KKRZ 11H- TH...
  • Page 31 Failure to return this card will not diminish your warranty rights. � Sharp is a registered trademark of Sharp Corporation. All other trademarks are the property of their respective owners. Copyright © 2007 All Rights Reserved Please seal with tape. Do not staple.
  • Page 32 If you have comments or suggestions about our product, please write to: Post Office will not deliver without proper postage. Consumer Electronics Group Sharp Plaza, Mahwah, NJ 07430-2135 U.S.A. Register online at www.sharpusa.com C C V 0 1 SHARP ELECTRONICS CORPORATION PO BOX 171098 DENVER CO 80217-1098...

This manual is also suitable for:

Fp-a60uFpa80uw
