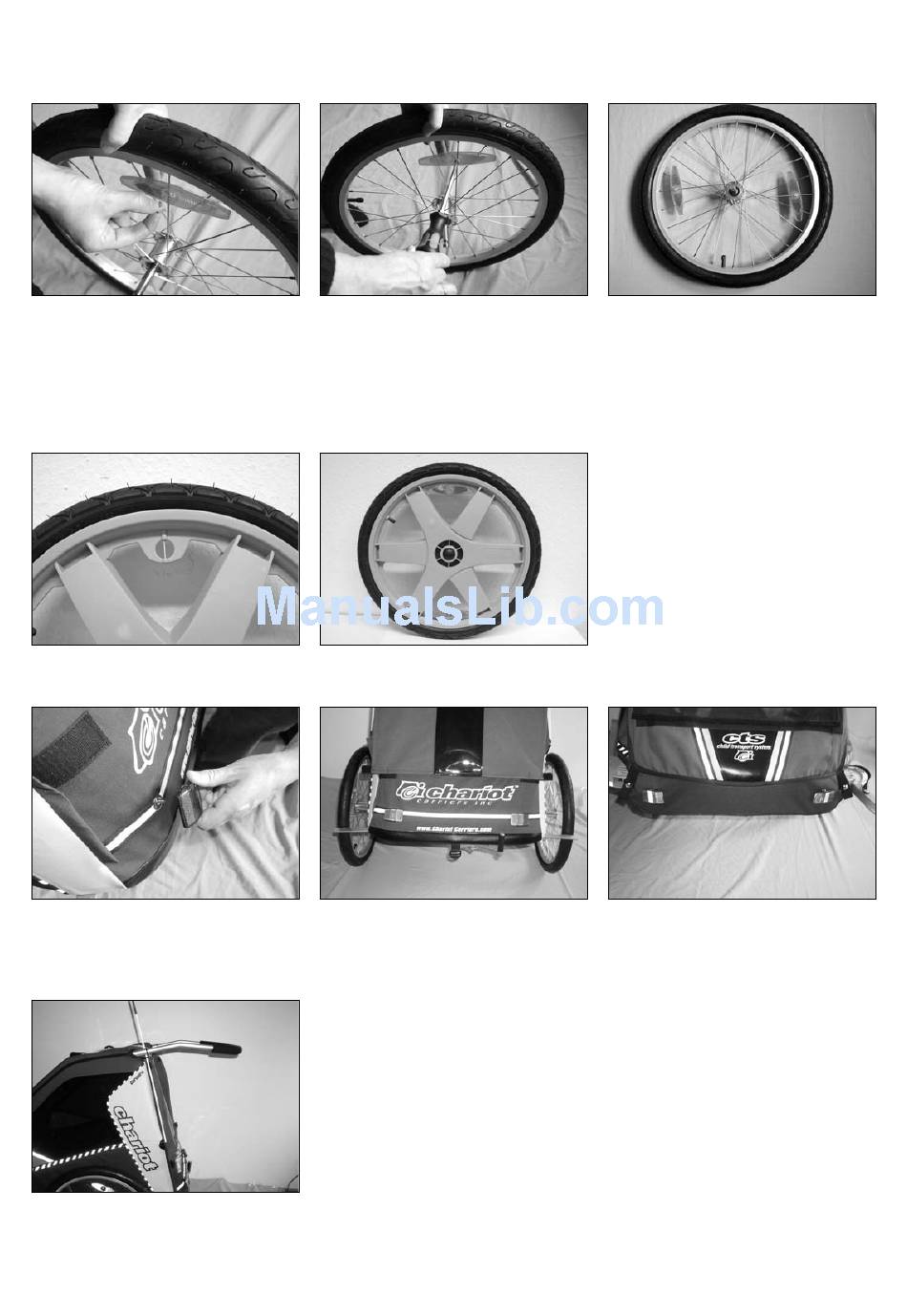

2.1 Fitting the Reflectors and Safety Flag

When using the transporter as a bicycle trailer you must attach the front, back and spoke reflectors as well as the safety flag.
Spoked wheels on the Corsaire XL, Captain XL, Cougar and CX
Position the spoke reflector between
two outer spokes and an inner spoke
in such a way that the inner spoke lies
in the guide slot of the reflector.
Plastic wheel on the Cabriolet, Comfort and Cheetah. Screw two reflectors onto
each wheel at the corresponding brackets.
For fixing the reflectors to the passen-
ger compartment you need a Philips
screwdriver.
16
Guide the plastic holder with its slot
over the inner spoke into the hole of
the reflector and secure by tightening
it a quarter turn using a screwdriver.
Fit the red reflectors in the rear
grommets.
Assemble the flag, push it on the left hand side through the loop of the weather
cover and insert it in the corresponding flap (in countries where the traffic drives
on the left the safety flag must be inserted in the flap on the right hand side).
For the Cheetah, Cougar and CX the safety flag is inserted in a hole in the
plastic cap of the rear frame tube (not illustrated).
Fit two reflectors on each wheel (as
shown to the right and left of the valve).
Fit the white reflectors in the front
grommets.
