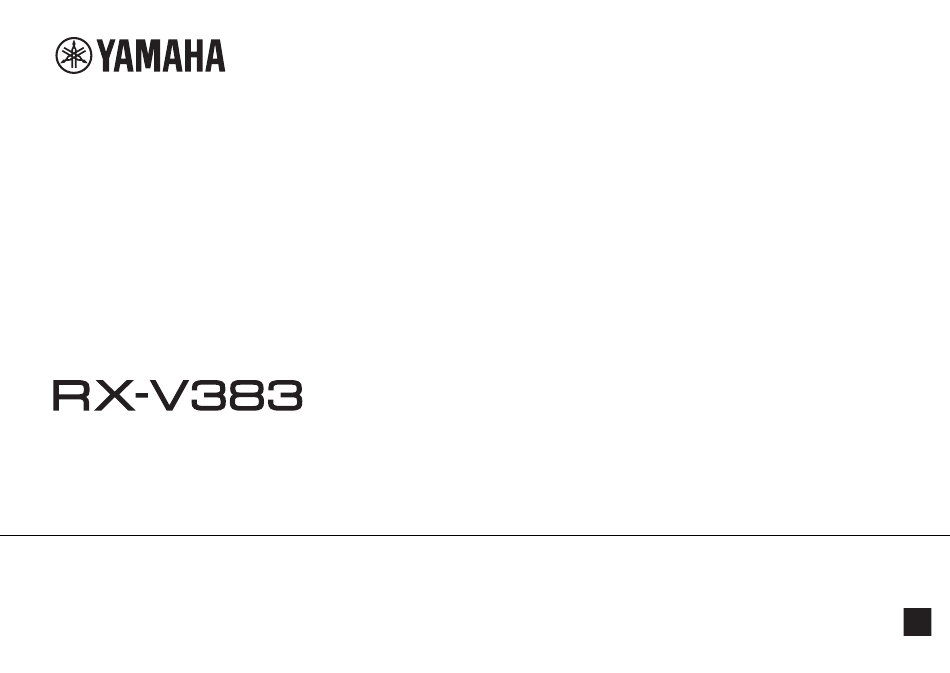

- Page 1 AV Receiver Owner's Manual • This unit is a product for enjoying video and music at home. • This manual explains preparations and operations for everyday users of the unit. • Read the supplied booklet “Quick Start Guide” before using the unit.
-
Page 2: Table Of Contents
CONTENTS BEFORE USING THE UNIT 6 Selecting an on-screen menu language.......... 24 7 Optimizing the speaker settings automatically (YPAO)....25 Accessories....................4 Error messages..................................27 How to use this manual................4 Warning messages................................28 Remote control..................4 PLAYBACK Insert the batteries................................... 4 Operating range of the remote control........................... - Page 3 Configuring playback settings for different playback sources Glossary....................77 (Option menu)..................47 Audio information................................. 77 HDMI and video information............................. 78 Option menu items................................47 Yamaha technologies................................78 CONFIGURATIONS Supported devices and file formats............79 Supported devices................................79 Configuring various functions (Setup Menu)........51 File formats....................................79 Setup menu items.................................
-
Page 4: Before Using The Unit
BEFORE USING THE UNIT Accessories Remote control Check that the following accessories are supplied with the product. The supplied remote control is used as follows. £ AM antenna £ FM antenna Insert the batteries Insert the batteries the right way round. * One of the above is supplied depending on the region of purchase. -
Page 5: Features
FEATURES What you can do with the unit The unit is equipped with full of useful functions. The ECO mode (power saving function) allows you to create an eco-friendly home theater system Supports 2- to 5.1-channel speaker system When the ECO mode is enabled, you can reduce the unit's power consumption. You can enjoy your favorite acoustic spaces in various styles. - Page 6 Playing back TV audio in surround sound with a Useful applications single HDMI cable connection (Audio Return The useful application for connections and operations of the unit is as follows. Channel: ARC) Application for tablets “AV SETUP GUIDE” When using an ARC-compatible TV, you only need one HDMI cable to enable video AV SETUP GUIDE is an application that assists you with cable connections output to the TV, audio input from the TV, and the transmission of HDMI Control between AV Receiver and source devices as well as AV Receiver setup.
-
Page 7: Part Names And Functions
Part names and functions The part names and functions of the unit and the supplied remote control are as follows. Front panel YPAO MIC INFO MEMORY (PAIRING) PRESET TUNING VOLUME SCENE RADIO PHONES INPUT TONE CONTROL PROGRAM STRAIGHT SILENT CINEMA AUDIO z (power) key FM and AM keys... -
Page 8: Front Display (Indicators)
Front display (indicators) LINK MASTER STEREO TUNED ZONE SLEEP PARTY A - DRC ENHANCER YPAO VOL. VOL. MUTE VIRTUAL SB SBR HDMI Information display Lights up when HDMI signals are being input or output. Displays the current status (such as input name and sound mode name). -
Page 9: Rear Panel
Rear panel SUBWOOFER PRE OUT jack ▪ The area around the video/audio output jacks is marked in white For connecting to a subwoofer (with built-in amplifier) on the actual product to prevent improper connections. (p.16). SPEAKERS terminals For connecting to speakers (p.16). HDMI OUT jack VOLTAGE SELECTOR For connecting to an HDMI-compatible TV and outputting... -
Page 10: Remote Control
Remote control Remote control signal transmitter VOLUME keys Transmits infrared signals. Adjust the volume. z (receiver power) key MUTE key Turns on/off (standby) the unit. Mutes the audio output. SLEEP OPTION key SLEEP key S C E N E RADIO Pressing this key repeatedly will specify the time (120 min, Displays the option menu (p.47). -
Page 11: Preparations
PREPARATIONS General setup procedure Placing speakers..........................(p.12) Connecting speakers........................(p.16) Connecting a TV/playback devices....................(p.18) Connecting the FM/AM antennas....................(p.23) Connecting the power cable......................(p.23) Selecting an on-screen menu language..................(p.24) Optimizing the speaker settings automatically (YPAO)..............(p.25) This completes all the preparations. Enjoy playing movies, music, radio and other content with the unit! -
Page 12: Placing Speakers
Placing speakers Select the speaker layout for the number of speakers that you are using and place the speakers and subwoofer in your room. This section describes the representative speaker layout examples. Notice ▪ (U.S.A. and Canada models only) Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” (p.15). ▪... -
Page 13: Typical Speaker Layouts
Typical speaker layouts 5.1-channel system 5.1-channel system (Virtual CINEMA FRONT) We recommend this speaker layout which can maximize the performance of the unit. We recommend this speaker layout when the speakers can't be placed in back of the room. 10° to 30° 10°... -
Page 14: Other Speaker Layouts
Other speaker layouts The following speaker layouts are also available. 3.1-channel system 2.1-channel system... -
Page 15: Setting The Speaker Impedance
Setting the speaker impedance (U.S.A. and Canada models only) Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the speaker impedance to “6 Ω MIN”. Before connecting speakers, connect the power cable to an AC wall outlet. -
Page 16: Connecting Speakers
Connecting speakers Connect the speakers placed in your room to the unit. The following diagrams provide connections for a 5.1-channel system as an example. For other systems, connect speakers while referring to the connection diagram for the 5.1-channel system. Notice ▪... -
Page 17: Connecting Speaker Cables
Connecting speaker cables Connecting center/surround speakers Speaker cables have two wires. One is for connecting the negative (-) terminals of the Remove approximately 10 mm (3/8”) of insulation from the ends of unit and the speaker to each other, and the other is for the positive (+) terminals. If the the speaker cable, and twist the bare wires of the cable firmly wires are colored to prevent confusion, connect the black wire to the negative and the together. -
Page 18: Connecting A Tv/Playback Devices
Connecting a TV/playback devices The unit is equipped with a variety of input jacks Video jacks AUDIO jacks including HDMI input jacks to allow you to connect different types of playback devices. For information on VIDEO jacks (Stereo L/R jacks) how to connect a Bluetooth device or a USB storage device, see the following pages. -
Page 19: Connecting A Tv
Connecting a TV Composite video connection When connecting any video device with a video pin cable, connect the TV to the Connect a TV to the unit so that video input to the unit can be output to the TV. You MONITOR OUT (VIDEO) jack. -
Page 20: Connecting Video Devices (Such As Bd/Dvd Players)
Connecting video devices (such as BD/DVD players) Composite video connection Connect a video device to the unit with a video pin cable and an audio cable (digital Connect video devices such as BD/DVD players, set-top boxes (STBs) and game coaxial or stereo pin cable). Choose a set of input jacks (on the unit) depending on the consoles to the unit. - Page 21 Changing the combination of video/audio input jacks Press OPTION. If the combination of video/audio input jacks available on the unit does not match your video device, change its combination according to the output jacks of your device. SLEEP S C E N E MUTE MUTE You can connect a video device that has the following video/audio output jacks.
-
Page 22: Connecting Audio Devices (Such As Cd Players)
Connecting audio devices (such as CD players) Connecting to the jack on the front panel Connect audio devices such as CD players and MD players to the unit. Depending on Use the AUX jack on the front panel to temporarily connect devices such as portable the audio output jacks available on your audio device, choose one of the following audio players to the unit. -
Page 23: Connecting The Fm/Am Antennas
Connecting the FM/AM antennas Connecting the power cable Connect the supplied FM/AM antennas to the unit. Warning Fix the end of the FM antenna to a wall, and place the AM antenna on a flat surface. (Taiwan, Brazil and General models only) Make sure you set VOLTAGE SELECTOR of the unit BEFORE plugging the power cable into an AC wall FM antenna outlet. -
Page 24: Selecting An On-Screen Menu Language
Selecting an on-screen menu language Select the desired on-screen menu language. To exit from the menu, press SETUP. Press z (receiver power) to turn on the unit. Note The information on the front display is provided in English only. Turn on the TV and switch the TV input to display video from the unit (HDMI OUT jack). -
Page 25: Optimizing The Speaker Settings Automatically (Ypao)
Optimizing the speaker settings automatically (YPAO) The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker Place the YPAO microphone at your listening position and connections, measures the distances from them to your listening position(s), and then connect it to the YPAO MIC jack on the front panel. - Page 26 To start the measurement, use the cursor keys to select “Start” Use the cursor keys (e/r) to select “SAVE” and press ENTER. and press ENTER. The measurement will start in 10 seconds. Press ENTER to start the measurement immediately. Note To stop the measurement temporarily, press RETURN and follow the procedure in “Error messages”...
-
Page 27: Error Messages
YPAO MIC jack firmly and retry YPAO. If E-8:No Signal The YPAO microphone TV screen this error occurs repeatedly, contact the cannot detect test tones. (E-8:NO SIGNAL) nearest authorized Yamaha dealer or LINK MASTER STEREO TUNED ZONE service center. SLEEP... -
Page 28: Warning Messages
Warning messages If a warning message is displayed after the measurement, you can still save the Warning message Cause Remedy measurement results by following on-screen instructions. Check the cable connections (+/-) of the problem speaker. However, we recommend you perform YPAO again in order to use the unit with the optimal speaker settings. -
Page 29: Playback
PLAYBACK Basic playback procedure Enjoying playback Start playback on the external device or select a radio station. Refer to the instruction manual for the external device. Turn on the external devices (such as a TV or BD/DVD player) For details on the following operations, see the corresponding pages. connected to the unit. -
Page 30: Switching Information On The Front Display
Switching information on the front display Currently input source Item HDMI Input (input source name), DSP Program (sound mode name), Audio Press INFO repeatedly to select between the various display AUDIO Decoder (decoder name*) items. Bluetooth LINK MASTER STEREO TUNED ZONE SLEEP PARTY... -
Page 31: Selecting The Input Source And Favorite Settings With One Touch (Scene)
Selecting the input source and favorite settings with one touch (SCENE) The SCENE function allows you to select the assigned input source, sound program, Registering a scene and Compressed Music Enhancer on/off with just one touch. Selecting a registered scene Perform the following operations to prepare the settings you want to assign to a scene. -
Page 32: Selecting The Sound Mode
Selecting the sound mode The unit is equipped with a variety of sound programs and surround decoders that I want to enjoy listening to compressed music. allow you to enjoy playback sources with your favorite sound mode (such as sound •... -
Page 33: Enjoying Sound Field Effects (Cinema Dsp)
You’ll never get tired listening The unit is equipped with a variety of sound programs that utilize Yamaha’s original for long periods. - Page 34 Sound programs suitable for music (MUSIC) Sound programs suitable for stereo playback (STEREO) The following sound programs are optimized for listening to music sources. You can select stereo playback. This program simulates a Munich concert hall with approximately 2,500 Use this program to mix down multichannel sources to 2 channels. When seats that uses stylish wood for the interior finishing.
-
Page 35: Enjoying Unprocessed Playback
Enjoying unprocessed playback Playing back 2-channel sources in multichannel (surround decoder) You can play back input sources without any sound field effect processing. The surround decoder enables unprocessed multichannel playback from 2-channel sources. When a multichannel source is input, it works the same way as the straight Playing back in original channels (straight decode) decode mode. -
Page 36: Enhancing The Bass (Extra Bass)
Enhancing the bass (Extra Bass) Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed Music Extra Bass allows you to enjoy enhanced bass sounds, regardless of the size of the Enhancer) front speakers and the presence or absence of the subwoofer. Press BASS. -
Page 37: Listening To Fm/Am Radio
Listening to FM/AM radio You can tune into a radio station by specifying its frequency or selecting from Press STRAIGHT to select “FM100/AM10”. registered radio stations. Note Press z (power) to set the unit to standby mode and turn it on ▪... -
Page 38: Registering Favorite Radio Stations (Presets)
Registering favorite radio stations (presets) Press TUNING repeatedly to set a frequency. You can register up to 40 radio stations as presets. Once you have registered stations, Hold down the key for about a second to search stations automatically. you can easily tune into them by selecting their preset numbers. SLEEP S C E N E RADIO... - Page 39 Registering a radio station manually To start the Auto Preset process, press ENTER. Select a radio station manually and register it to a preset number. “SEARCH” appears during Auto Preset Follow “Selecting a frequency for reception” (p.37) to tune into LINK MASTER STEREO TUNED...
- Page 40 Selecting a preset station Clearing preset stations Tune into a registered radio station by selecting its preset number. Clear radio stations registered to the preset numbers. Press FM/AM to select “TUNER” as the input source. Press FM/AM to select “TUNER” as the input source. Press PRESET repeatedly to select the desired radio station.
-
Page 41: Radio Data System Tuning
Radio Data System tuning Receiving traffic information automatically When “TUNER” is selected as the input source, the unit automatically receives traffic (U.K. and Europe models only) information. To enable this function, follow the procedure below to set the traffic Radio Data System is a data transmission system used by FM stations in many information station. -
Page 42: Playing Back Music Stored On A Bluetooth® Device
▪ To cancel pairing, press MEMORY. Turn on the Bluetooth function on your device. From the Bluetooth device list on your device, select “******* Yamaha” (*******: model name of the unit). The unit After pairing has been completed and the unit is connected to the Bluetooth speakers/headphones Bluetooth device, “Connected”... -
Page 43: Playback Of Bluetooth® Device Contents
Playback of Bluetooth® device contents Enjoying audio using Bluetooth® speakers/ headphones Connect a paired Bluetooth device and start playback. Check the following beforehand: Follow the procedure below to establish a Bluetooth connection between Bluetooth • Pairing has been completed. speakers/headphones and the unit. •... -
Page 44: Playing Back Music Stored On A Usb Storage Device
Playing back music stored on a USB storage device You can play back music files stored on a USB storage device on the unit. Playback of USB storage device contents Note For details on playable USB devices, see “Supported devices and file formats” (p.79). Follow the procedure below to operate the USB storage device contents and start playback. - Page 45 Browse screen Playback screen List name Status indicators Contents list Display the current repeat/random settings (p.46) and playback status (such as play/pause). Displays the list of USB storage device contents. Use the cursor keys to select an item and press ENTER to confirm the selection. Playback information Item number/total Displays the artist name, album name, song title, and elapsed time.
- Page 46 Use the following remote control keys to control playback. Repeat/random settings SLEEP You can configure the repeat/random settings for playback of USB storage device S C E N E RADIO contents. STRAIGHT ENHANCER BASS PROGRAM FM/AM BLUE BLUE GREEN GREEN YELLOW YELLOW LO LO...
-
Page 47: Configuring Playback Settings For Different Playback Sources (Option Menu)
Configuring playback settings for different playback sources (Option menu) You can configure separate playback settings for different playback sources. This Option menu items menu is available on the front panel (or on the TV screen), allowing you to easily configure settings during playback. Note ▪... - Page 48 Item Function Page DSP/Surround (DSP/Surround) Configures the repeat setting for the USB storage Repeat (Repeat) p.46 Configures the sound field program and surround settings. device. Performs a pairing operation between the unit and Pairing (Pairing) p.42 DSP Level (DSP Level) your Bluetooth device.
- Page 49 Volume Trim (Volume Trim) Signal Info. (Signal Info.) Fine-adjusts volume difference between input sources or subwoofer volume. Displays information about the video/audio signal. Choices Input Trim (In.Trim) Format (FORMAT) Audio format of the input signal Corrects volume differences between input sources. If you are bothered by volume The number of source channels in the input signal (front/surround/LFE) differences when switching between input sources, use this function to correct it.
- Page 50 Video Out (Video Out) Selects a video to be output with the selected audio source. For example, you can watch the video while listening to the radio. Input sources AUDIO, TUNER, USB, Bluetooth, AUX Settings Off (Off) Does not output video. HDMI 1-4, AV 1-3 Outputs video input through the corresponding video input jacks.
-
Page 51: Configurations
CONFIGURATIONS Configuring various functions (Setup Menu) You can configure the unit’s various function with the menu displayed on the TV screen. Note Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry out operations while viewing the front display. -
Page 52: Setup Menu Items
Setup menu items Menu Item Function Page Subwoofer Selects whether or not a subwoofer is connected. p.54 Selects the size of the front speakers. p.54 Front Center Selects whether or not a center speaker is connected and its size. p.54 Surround Selects whether or not surround speakers are connected and their size. - Page 53 Menu Item Function Page Auto Power Standby Set the amount of time for the auto-standby function. p.61 ECO Mode Enables/disables the eco mode (power saving mode). p.61 Input Rename Changes the input source name displayed on the front display. p.62 Set which input source is skipped when operating the INPUT key.
-
Page 54: Speaker
Speaker Configures the speaker settings manually. Front Note Selects the size of the front speakers. Default settings are underlined. Settings Configuration Select this option for small speakers. Small The subwoofer will produce front channel low-frequency components Configures the output characteristics of the speakers. (configurable in “Crossover”). - Page 55 Surround Extra Bass Selects whether or not surround speakers are connected and their sizes. Enables/disables Extra Bass. When Extra Bass is enabled, you can enjoy enhanced bass sounds, regardless of the size of the front speakers and the Settings presence or absence of the subwoofer. Select this option for small speakers.
- Page 56 Manual equalizer adjustment Level Adjusts the volume of each speaker. Set “EQ Select” to “GEQ”. Choices Front L, Front R, Center, Surround L, Surround R, Subwoofer Use the cursor keys (q/w) to select “Channel” and the cursor keys (e/r) to select the desired speaker channel. Setting range -10.0 dB to +10.0 dB (0.5 dB increments) Use the cursor keys (q/w) to select the desired band...
-
Page 57: Hdmi
HDMI Configures the HDMI settings. 4K Upscaling Note Enables/disables the upscaling function. When it is enabled, 1080p content is Default settings are underlined. displayed at 4K resolution. Settings HDMI Control Disables the upscaling function. Enables/disables HDMI Control (p.80). Enables the upscaling function. Settings TV Audio Input Disables HDMI Control. - Page 58 Standby Sync SCENE Select whether to use HDMI control to link the unit's standby mode to the TV's power Enables/disable SCENE link playback when “HDMI Control” is set to “On”. when “HDMI Control” is set to “On”. When SCENE link playback is enabled, HDMI Control-compatible devices connected to the unit via HDMI automatically works as follows, with a scene selection.
-
Page 59: Sound
Sound Configures the audio output settings. Center Image Note Adjusts the center localization (broadening effect) of the front sound field. Adjust Default settings are underlined. this higher to strengthen the center localization (less broadening effect) or lower to weaken it (more broadening effect). This setting is effective when “Neo:6 Music” is DSP Parameter selected. - Page 60 Adjustment Dynamic Range Adjusts the delay between video and audio output manually when “Select” is set to Selects the dynamic range adjustment method for bitstream audio (Dolby Digital “Manual”. You can fine-adjust the audio output timing when “Select” is set to and DTS signals) playback.
-
Page 61: Eco
Configures the power supply settings. Note Default settings are underlined. Auto Power Standby Set the amount of time for the auto-standby function. Settings Does not set the unit to standby mode automatically. Sets the unit to standby mode when you have not operated the unit and 20 minutes the unit has not detected any input signal for the specified time. -
Page 62: Function
Function Configures the functions that make the unit easier to use. Procedure to rename manually Note Default settings are underlined. Use the cursor keys (q/w) to select an input source to be renamed. Input Rename Use the cursor keys (e/r) to select “Manual” and press Changes the input source name displayed on the front display. - Page 63 Input Skip Dimmer Set which input source is skipped when operating the INPUT key. Adjusts the brightness of the front display. You can select the desired input source quickly by using this function. Setting range Input sources -4 to 0 (higher to brighten) HDMI 1-4, AUDIO 1-2, AV 1-3, TUNER, USB, Bluetooth, AUX Note The front display may become dark when “ECO Mode”...
-
Page 64: Bluetooth
Bluetooth Remote Color Key Set the unit's functions for the RED/GREEN/YELLOW/BLUE key of the remote control. Configures the Bluetooth settings. Settings Bluetooth Assigns the functions of playback devices connected to the unit with an Default HDMI cable. Enables/disables the Bluetooth function (p.42). Assigns the unit's input sources to each key. -
Page 65: Language
Language Audio Send Configures the Bluetooth settings when the unit is used as the Bluetooth audio Select an on-screen menu language. transmitter. Note Transmitter Default settings are underlined. Settings Enables/disables the Bluetooth audio transmitter function. When this function is enabled, you can enjoy audio played back on the unit using English English Bluetooth speakers/headphones (p.43). -
Page 66: Configuring The System Settings (Advanced Setup Menu)
Configuring the system settings (ADVANCED SETUP menu) Configure the system settings of the unit while viewing the front display. ADVANCED SETUP menu items Set the unit to standby mode. Note Default settings are underlined. While holding down STRAIGHT on the front panel, press Item Function Page... -
Page 67: Selecting The Remote Control Id (Remote Id)
Switch the video signal type of HDMI output so that it matches to the format of your TV. ID1). When using multiple Yamaha AV receivers, you can set each remote control with Since the unit automatically selects the video signal type so that it matches to the TV, it a unique remote control ID for its corresponding receiver. -
Page 68: Selecting The Hdmi 4K Signal Format (4K Mode)
Selecting the HDMI 4K signal format (4K MODE) Updating the firmware (UPDATE) LINK MASTER STEREO TUNED ZONE LINK MASTER STEREO TUNED ZONE SLEEP PARTY SLEEP PARTY ENHANCER YPAO VOL. A- DRC ENHANCER YPAO VOL. A- DRC VOL. MUTE VIRTUAL VOL. MUTE VIRTUAL 4K MODE•MODE 1 UPDATE•••••USB... -
Page 69: Appendix
If you have changed speakers or have a new speaker system, use YPAO to optimize Yamaha product or another remote control may work on the unit. If this happens, the speaker settings again (p.25). If you want to adjust the speaker settings manually, register different remote control IDs for the devices that you want to control with each use “Speaker”... -
Page 70: Troubleshooting
The power does not turn on. consecutively. If the unit is in this condition, the standby indicator nearest Yamaha dealer or service center to request repair. on the unit blinks when you try to turn on the power. The internal microcomputer has frozen, due to an external electric Hold down z (power) on the front panel for more than 15 seconds to reboot the The power does not turn off. -
Page 71: Audio
Problem Cause Remedy The unit is out of the operating range. Use the remote control within the operating range (p.4). The batteries are weak. Replace with new batteries. The unit cannot be controlled using the remote The unit’s remote control sensor is exposed to direct sunlight or Adjust the lighting angle, or reposition the unit. - Page 72 Problem Cause Remedy The playback source does not contain Low Frequency Effect (LFE) To check it, set “Extra Bass” in the “Setup” menu to “On”, in order to output the or low-frequency signals. front channel low-frequency components from the subwoofer (p.55). Subwoofer output is disabled.
-
Page 73: Video
Video Problem Cause Remedy Another input source is selected on the unit. Select an appropriate input source with the input selection keys. Another input source is selected on the TV. Switch the TV input to display the video from the unit. Check the video output setting of the playback device. -
Page 74: Fm/Am Radio
FM/AM radio Problem Cause Remedy There is multi-path interference. Adjust the FM antenna height or orientation, or place it in a different location. To select monaural FM radio reception “FM Mode” in the “Option” menu to FM radio reception is weak or noisy. “Mono”... -
Page 75: Bluetooth
Bluetooth® Problem Cause Remedy Another Bluetooth device is connected. Terminate current Bluetooth connection, and perform pairing with the new device. This unit and the device are too far apart. Move the device closer to this unit. Cannot make the unit pair with a Bluetooth There is a device (microwave oven, wireless LAN, etc.) that outputs device. -
Page 76: Error Indications On The Front Display
Twist the bare wires of the cables firmly and connect to the unit and speakers properly. Internal Error An internal error has occurred. Contact the nearest authorized Yamaha dealer or service center. No content There are no playable files in the selected folder. -
Page 77: Glossary
Glossary This is a glossary of the technical terms used in this manual. DTS Neo: 6 DTS Neo: 6 enables 6-channel playback from 2-channel sources. There are two modes available: Audio information “Music mode” for music sources and “Cinema mode” for movie sources. This technology provides discrete full-bandwidth matrix channels of surround sound. -
Page 78: Hdmi And Video Information
SILENT CINEMA low frequency audio effects. This channel is labeled 0.1 because it is limited to only low frequency Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. audio. Parameters for headphones have been set for each sound program, so that accurate Lip sync representations of all the sound programs can be enjoyed on headphones. -
Page 79: Supported Devices And File Formats
Supported devices and file formats Video signal flow The following devices and file formats can be used by the unit. Video signals input from a video device to the unit are output to a TV as shown below. Video device The unit Supported devices USB devices... -
Page 80: Information On Hdmi
Information on HDMI The additional information on HDMI is as follows. (Example) HDMI Control HDMI Control HDMI Control HDMI Control allows you to operate external devices via HDMI. If you connect a TV that supports HDMI Control to the unit with an HDMI cable, you can control the unit Playback starts Turns on and displays (such as power and volume) with TV remote control operations. - Page 81 Use the cursor keys to select “HDMI” and press ENTER. Check that the unit is properly synchronized with the TV by turning off the TV or adjusting the TV volume with the TV remote control. Note ▪ If HDMI Control does not work properly, the problem may be solved by turning the playback device off and on again, or by unplugging the power plug and plugging it in again.
-
Page 82: Audio Return Channel (Arc)
Audio Return Channel (ARC) HDMI signal compatibility ARC allows you to input TV audio to the unit with the HDMI cable which transmits video • When CPPM copy-protected DVD-Audio is played back, video/audio signals may signal to the TV. not be output, depending on the type of the DVD player. Check the following after the HDMI Control settings. -
Page 83: Trademarks
Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. App Store is a service mark of Apple Inc. Android™ is a trademark of Google Inc. “SILENT CINEMA” is a trademark of Yamaha Corporation. -
Page 84: Specifications
Specifications The specifications of this unit are as follows. HDMI Input jacks HDMI Features: • 4K UltraHD Video (include 4K/60, 50Hz 10/12bit), 3D Video, ARC (Audio Return Channel), HDMI Analog Audio Control (CEC), Auto Lip Sync, Deep Color, “x.v.Color”, HD audio playback, 21:9 Aspect Ratio, BT.2020 Colorimetry, HDR Compatible •... - Page 85 Audio Section Capable of Mass Storage Class USB Memory Rated Output Power (2-channel driven) • [U.S.A. and Canada models] (20 Hz to 20 kHz, 0.09% THD, 8 Ω) Current Supply Capacity: 0.5 A • [Other models] (20 Hz to 20 kHz, 0.09% THD, 6 Ω) –...
- Page 86 Output Level / Output Impedance Video Maximum Input Level • SUBWOOFER 1 V/1.2 kΩ 1.5 Vp-p or more Headphone Jack Rated Output / Impedance Video Signal to Noise Ratio • AV 2 etc. (1 kHz, 50 mV, 8 Ω) 100 mV/470 Ω 50 dB or more FM Section Frequency Response...
- Page 87 435 x 151 x 315 mm (17-1/8” x 6” x 12-3/8”) Weight 7.4 kg (16.3 lbs) * The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.
- Page 88 Yamaha Global Site http://www.yamaha.com/ Yamaha Downloads http://download.yamaha.com/ Manual Development Group © 2017 Yamaha Corporation Published 02/2017 NV-A0 YJ186A0/EN1...
