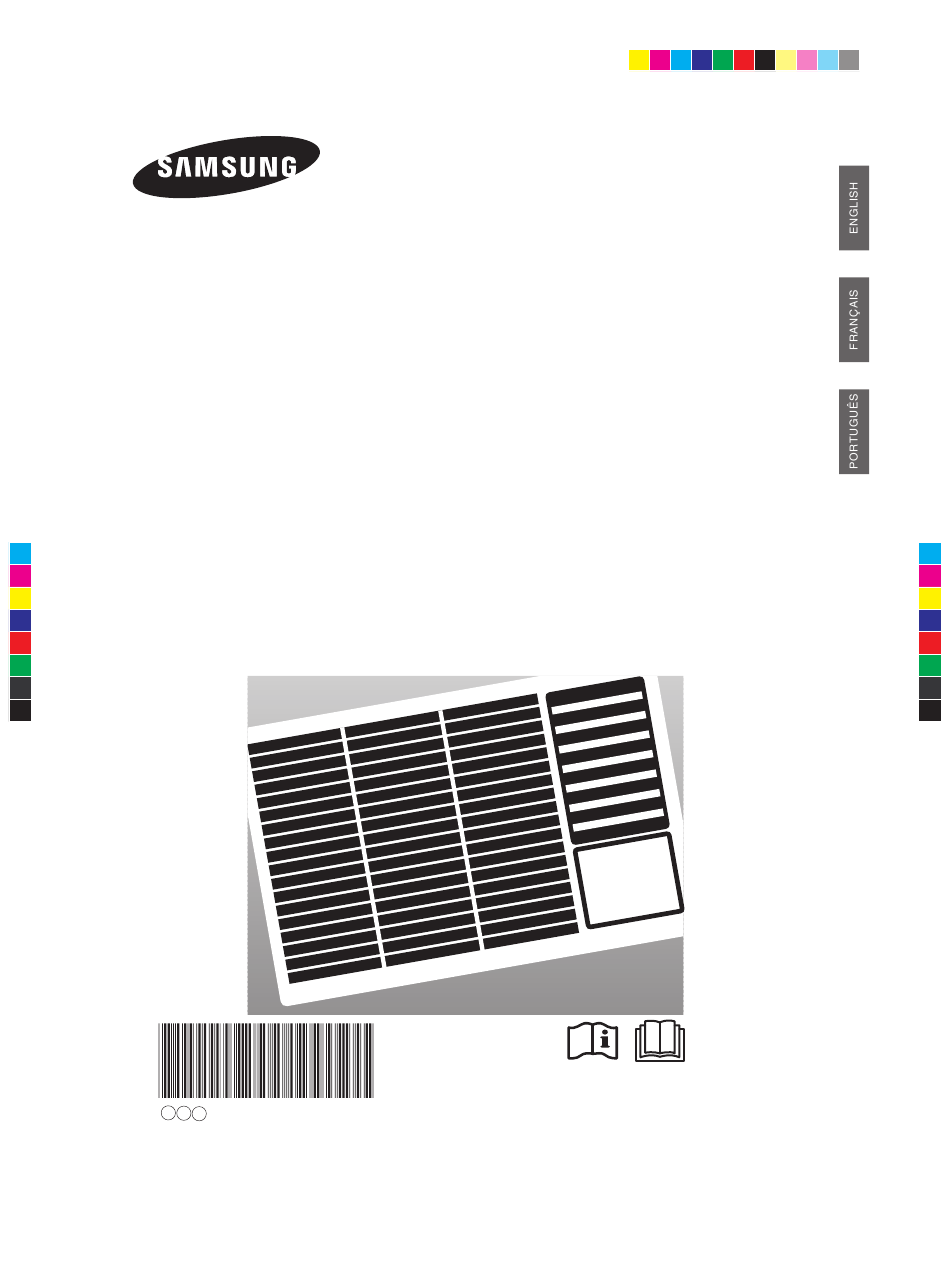

- Page 1 DB98-33321A-E.pdf DB98-33321A-E.pdf 2010-12-29 2010-12-29 15:27:44 15:27:44 USER'S MANUAL AW09P1 Series AW12P1 Series AW18P1 Series AW24P1 Series Window-type Room Air Conditioner (Cooling) E F P DB98-33321A-1 DB98-00000.indd 15 2010-12-21 17:59:02...
-
Page 2: Safety Precautions
Register your product at www.samsung.com/register Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury or death. • Disconnect all WARNING remote electric power supplies before servicing, installing or cleaning. -
Page 3: Table Of Contents
Contents PREPARING YOUR AIR CONDITIONER Safety Precautions ..................Air Conditioning Unit-Main Parts and Control Panel ........OPERATION YOUR AIR CONDITIONER Cooling Your Room ..................Airing Your Room ..................Switching the Air Conditioner Off ..............Adjusting the Air Flow Direction Horizontally ..........Adjusting the Air Flow Direction Vertically ............ -
Page 4: Air Conditioning Unit-Main Parts And Control Panel
Air Conditioning Unit - Main Parts and Control Panel The design and shape are subject to change according to the model. Air Outlet Inner air flow blades (right/left orientation) Air inlet (Inside) Outer air flow blades (up/down orientation) The air filter is located in side Air inlet (Outside) Ventilation lever... -
Page 5: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to lower the temperature in your room.You can also set the fan speed. Select the operating mode and fan speed. To cool your room with a... Set the operating mode selection dial to... -
Page 6: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air it using the Fan feature and if necessary, evacuate the stale air outside. If you wish to evacuate stale air outside, push the ventilation lever on the front of the unit to the right and the open position ( Result: The air inside the room circulates and stale air is evacuated outside. -
Page 7: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally Depending on the position of the unit in your room, you can adjust the orientation of the inner air flow blades on the right-hand side of the unit, thus increasing the efficiency of the air conditioner. Set the air flow blade swing switch to the on position. -
Page 8: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner Be sure to clean the air filter periodically to maintain the air conditioner in the best condition for a long period of time. IMPORTANT When cleaning the air conditioner, turn it off and pull out the power plug. Hold the front grille handle, slightly pull it to the left side and open the front grille. -
Page 9: Solving Common Problems
Solving Common Problems Before contacting the after-sales service,perform the following simple checks. They may save you the time and expense of an unnecessary service call. Problem Explanation/Solution The air conditioner does not Check that the circuit breaker used for the air conditioner has not ... -
Page 10: Method Of Installation
Method Of Installation (for 60Hz) Electrical Requirements For personal safety: This appliance must be properly grounded. Do not, under any circumstances, cut or remove the third grounding prong from the power cord. We recommend that you do not use an extension cord or an adapter plug ... - Page 11 DB98-33321A-E.pdf DB98-33321A-E.pdf 2010-12-29 2010-12-29 15:33:31 15:33:31 Method Of Installation (Cont.) Before installation, be sure to check the installation area or the air conditioner, and drain hose. Checkpoints prior to installation 1 Check the cabinet and front grille of the unit for any harmful defects such as scratches.
- Page 12 Method Of Installation (Cont.) Installation of the Drain Tube Fix the drain tube as shown in the figure. Rear Rubber cap Gasket Drain Tube Screws(EA)
- Page 13 Memo...
- Page 14 This product is not manufactured for Iran.SVC Warranty will not be applicable and the user will be responsible for service expenses when the product is used in Iran. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT NIGERIA 0800-SAMSUNG(726-7864) www.samsung.com SOUTH AFRICA 0860-SAMSUNG(726-7864) www.samsung.com...
