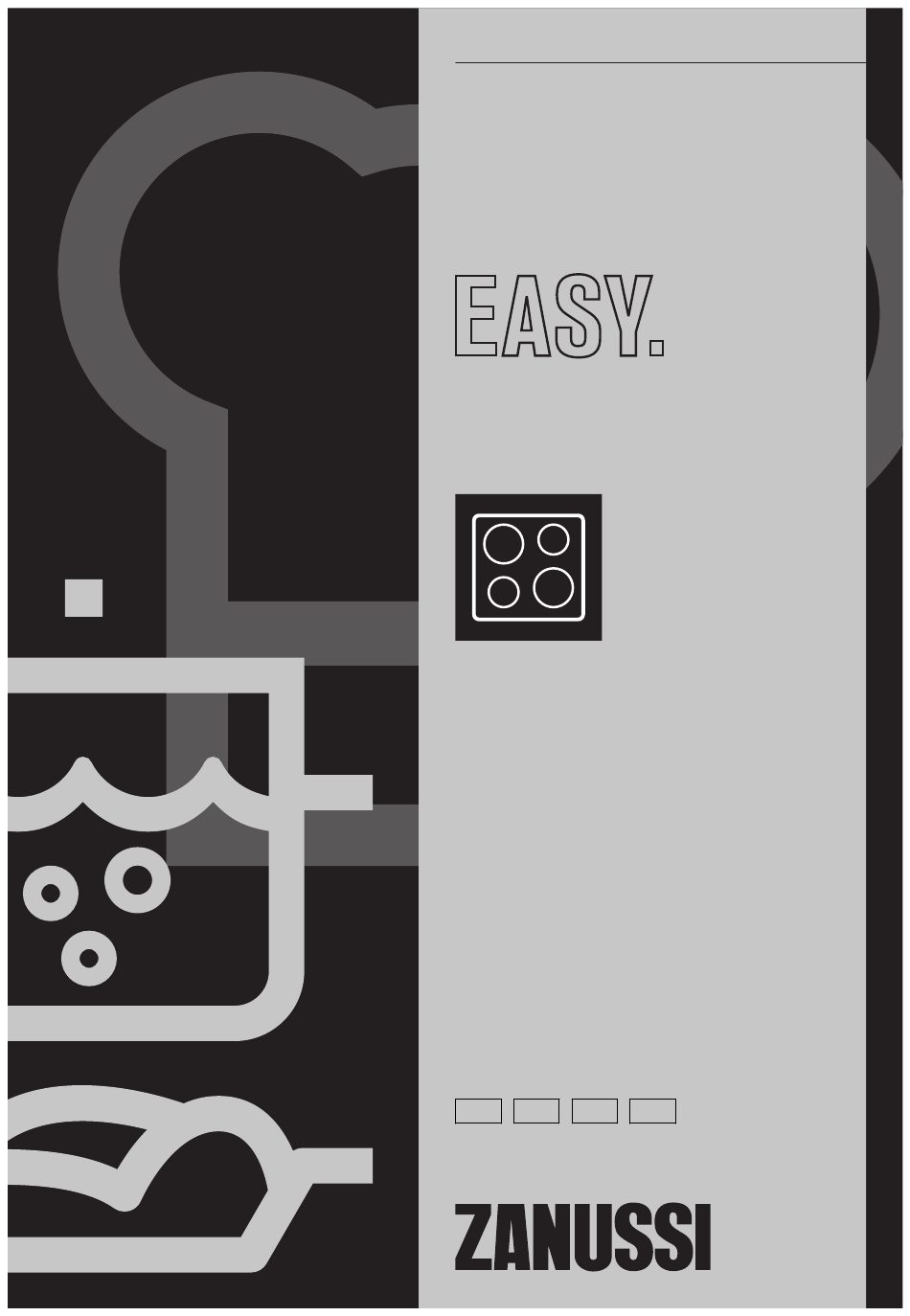

- Page 1 User Manual GETTING STARTED? EASY. ZGH75524XB ZGH75524XX ZGH76524XX EN User Manual...
- Page 2 SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
- Page 3 NEVER try to extinguish a fire with water, but switch off the • appliance and then cover flame e.g. with a lid or a fire blanket. CAUTION: The cooking process has to be supervised. A short • term cooking process has to be supervised continuously. WARNING: Danger of fire: Do not store items on the cooking •...
- Page 4 • Do not install the appliance adjacent to a door removed from the holder), earth leakage trips or under a window. This prevents hot cookware and contactors. falling from the appliance when the door or the • The electrical installation must have an isolation window is opened.
- Page 5 • Used oil, that can contain food remnants, can • Discoloration of the enamel or stainless steel cause fire at a lower temperature than oil used has no effect on the performance of the for the first time. appliance. • Do not put flammable products or items that are CARE AND CLEANING wet with flammable products in, near or on the...
- Page 6 813 Current Editions and the ETCI Rules for The manufacturer will not accept liability, should the Electrical Installations. above instructions or any of the other safety instructions incorporated in this instruction booklet Provision for ventilation be ignored. Detailed recommendations are contained in the On the end of the shaft, which includes the R 1/2"...
- Page 7 INJECTORS REPLACEMENT • from liquid gas to natural gas G20 20 mbar, undo the bypass screw approximately 1/4 1. Remove the pan supports. of a turn (1/2 of a turn for Multi Crown 2. Remove the caps and crowns of the burner. burner).
- Page 8 Supply connections REPLACEMENT OF THE CONNECTION CABLE This hob has to be connected to 220-240 V (~ 50-60 Hz ) electricity supply. The replacement of electric cable must The hob has a terminal block which is be carried out exclusively by the marked as follows: service force centre or by personnel •...
- Page 9 ASSEMBLY If a furniture unit is installed at a distance of 400 mm above the hob, there must be a minimum safety distance of 50 mm to the left or right from the edge of the hob. min. 600 mm min.
- Page 10 min 30 mm min 5 mm (max 150 mm) 60 mm A. Removable panel B. Space for connections CAUTION! Install the appliance only on a worktop with flat surface. Kitchen unit with oven The electrical connection of the hob and the oven POSSIBILITIES FOR INSERTION must be installed separately for safety reasons and The panel installed below the hob must be easy to...
- Page 11 CONTROL KNOB Symbol Description Symbol Description minimum gas supply no gas supply / off position ignition position / maximum gas supply DAILY USE C. Ignition candle WARNING! Refer to Safety chapters. D. Thermocouple IGNITION OF THE BURNER BURNER OVERVIEW Always light the burner before you put on the cookware.
- Page 12 CAUTION! In the absence of The hob is supplied with the electricity you can ignite the burner progressive valves. They make the without electrical device; in this case flame regulation more precise. approach the burner with a flame, turn the control knob counter-clockwise to TURNING THE BURNER OFF maximum gas supply position and To put the flame out, turn the knob to the off...
- Page 13 CARE AND CLEANING WARNING! Refer to Safety chapters. GENERAL INFORMATION • Clean the hob after each use. • Always use cookware with a clean base. • Scratches or dark stains on the surface have no effect on how the hob operates. •...
- Page 14 TROUBLESHOOTING WARNING! Refer to Safety chapters. WHAT TO DO IF... Problem Possible cause Remedy There is no spark when you try The hob is not connected to an Check if the hob is correctly to activate the spark generator. electrical supply or it is con- connected to the electrical nected incorrectly.
- Page 15 LABELS SUPPLIED WITH THE ACCESSORIES Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A. Stick it on Guarantee Card and send this part C.
- Page 16 OTHER TECHNICAL DATA Gas original: G20 (2H) 20 mbar 12,0 kW TOTAL POW- Gas replace- G30 (3+) 28-30 mbar 832 g/h ment: G31 (3+) 37 mbar 818 g/h Electric supply: 220-240 V ~ 50-60 Hz 3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse Appliance cate- II2H3+ gory:...
- Page 17 Left front - Semi-rapid 55.0% Right front - Auxiliary not applicable Energy efficiency for the gas hob 55.6% (EE gas hob) Model identification ZGH75524XB, ZGH75524XX Type of hob Built-in hob Number of gas burners Left rear - Semi-rapid 61.2% Right rear - Rapid 54.4%...
- Page 18 ENVIRONMENTAL CONCERNS with the symbol with the household waste. Recycle materials with the symbol . Put the Return the product to your local recycling facility or packaging in relevant containers to recycle it. Help contact your municipal office. protect the environment and human health by recycling waste of electrical and electronic appliances.
- Page 20 WWW.ZANUSSI.COM/SHOP...
