OPERATING INSTRUCTIONS
You can find instructions for your TV's features in the E-Manual.
e
-MANUAL
To access the E-Manual, enter Settings menu, select Manuals and press
OK. For quick access press Home/Menu button and then Info button.
TX-43HX600B / TX-43HX600BZ
TX-50HX600B / TX-50HX600BZ
TX-55HX600B / TX-55HX600BZ
TX-65HX600B / TX-65HX600BZ

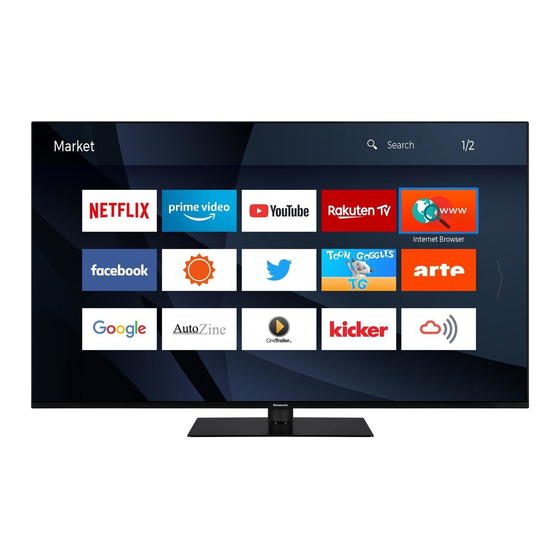

LED TV
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Panasonic TX-43HX600B
Summary of Contents for Panasonic TX-43HX600B
- Page 1 OPERATING INSTRUCTIONS TX-43HX600B / TX-43HX600BZ TX-50HX600B / TX-50HX600BZ TX-55HX600B / TX-55HX600BZ TX-65HX600B / TX-65HX600BZ LED TV You can find instructions for your TV’s features in the E-Manual. -MANUAL To access the E-Manual, enter Settings menu, select Manuals and press OK. For quick access press Home/Menu button and then Info button.
-
Page 2: Table Of Contents
Supported File Formats for USB Mode ....27 Contents Video File Formats ..........27 Safety Information ........... 2 Picture File Formats ..........27 Markings on the Product.......... 2 Audio File Formats ..........27 Maintenance ............4 Subtitle File Formats..........27 Display panel, Cabinet, Pedestal...... -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK out of the reach of the babies, children and domestic DO NOT OPEN... - Page 4 WARNING has therefore to be provided through a device providing electrical isolation below a certain frequency range Do not ingest the battery, Chemical Burn Hazard (galvanic isolator) This product or the accessories supplied with the product may contain a coin/button cell battery. If the WALL MOUNTING WARNINGS coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead...
-
Page 5: Maintenance
Maintenance Assembling / Removing the pedestal First, remove the mains plug from the mains Preparations socket. Take out the pedestal(s) and the TV from the packing Display panel, Cabinet, Pedestal case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.) Regular care: •... -
Page 6: When Using The Wall-Hanging Bracket
Energy Saving setting) manually using Left When using the wall-hanging bracket or Right buttons on the remote. Please contact your local Panasonic dealer to Note: Available Energy Saving options may differ depending purchase the recommended wall-hanging bracket. on the selected Mode in the Settings>Picture menu. -
Page 7: Ultra Hd (Uhd)
• PLL (Frequency Search) Vision content is detected: Dolby Vision Bright and Dolby Vision Dark. Both allow the user to experience • PC input the content in the way the creator originally intended • Game Mode (Optional) with different ambient lighting conditions. •... -
Page 8: Using Main Tv Menu
Press Exit button to close the main menu. Note: The position of the joystick may differ depending on the model. 1. Home To change volume: Increase the volume by pushing When main menu is opened Home menu bar will the joystick right. Decrease the volume by pushing be highlighted. -
Page 9: Inserting The Batteries Into The Remote
after that. In order to do that press OK, highlight Save Power Connection Changes and press OK again. IMPORTANT: The TV set is designed to operate on a 3. Settings 220-240V AC, 50 Hz supply. After unpacking, allow the TV set to reach the ambient room temperature before You can manage the settings of your TV using the you connect the set to the mains. -
Page 10: Disposal Of Old Equipment And Batteries
For DTS patents, see http://patents.dts.com. Disposal of Old Equipment and Batteries Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol Only for European Union and together are registered trademarks, and DTS countries with recycling systems TruSurround is a trademark of DTS, Inc. -
Page 11: Declaration Of Conformity (Doc)
Declaration of Conformity (DoC) Hereby, Panasonic Marketing Europe GmbH, declares that this TV is in compliance with the essential require- ments and other relevant provisions of the Directive 2014/53/EU. If you want to get a copy of the original DoC of this TV, please visit the following website: http://www.ptc.panasonic.eu/compliance-documents... -
Page 12: Specification
75 Ohm (unbalanced) Operating Voltage 220-240V AC, 50Hz. Audio A2 Stereo+Nicam Stereo Headphone 3.5 mm mini stereo jack Networked Standby Power Consumption < 2 TX-43HX600B TX-50HX600B TX-55HX600B TX-65HX600B TX-43HX600BZ TX-50HX600BZ TX-55HX600BZ TX-65HX600BZ Audio Output Power (WRMS.) 2 x 10 W... -
Page 13: Notice
It’s recommended that user checks with local authorities for the current status of their national reg- Panasonic assumes no responsibility and makes no ulations for 5 GHz wireless LAN’s. warranty for the availability or the continuity of the services. -
Page 14: Remote Control
Remote Control Standby: Switches On / Off the TV Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode) Guide: Displays the electronic programme guide Home: Displays TV menu Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left OK: Confirms user selections, holds the page (in TXT mode), views Channels menu (DTV mode) -
Page 15: Connections
Connections See the illustrations on the left Connector Type Cables Device side. You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To Connection enable PC/YPbPr audio, you will (back) need to use the back audio inputs with a YPbPr/PC audio cable for... -
Page 16: Switching On/Off
before making any changes. You can use Programme Switching On/Off +/- buttons to scroll up and down to read the entire To Switch the TV On text. You will be able to change your preferences at Connect the power cord to a power source such as a any time later from the Settings>System>Privacy wall socket (220-240V AC, 50 Hz). -
Page 17: Media Playback Via Usb Input
When finished, highlight Next and press OK button Media Playback via USB Input to continue. You can connect 2.5” and 3.5” inch (HDD with external power Note: Searching duration will change depending on the supply) external hard disk drives or USB memory stick to your selected Search Step. -
Page 18: Cec
CEC option will be set as Enabled automatically, if it is not already set. The TV speakers will be muted and Loop/Shuffle Mode Operation the sound of the watched source will be provided from All files in the list will be the connected sound system. -
Page 19: Settings Menu Content
Settings Menu Content Picture Menu Content You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic Mode and Natural. Dolby Vision Modes: If Dolby Vision content is detected Dolby Vision Dark and Dolby Vision Bright picture mode options will be available instead of Cinema and Natural modes. - Page 20 Reset Resets the picture settings to factory default settings (except Game mode). PC Position Appears only when the input source is set to VGA/PC. If the image is not centered in VGA mode use this option to automatically adjust the Autoposition position of the image.
- Page 21 Sets sound balance. This feature will be activated if Sound Output option is set as TV Balance or Headphone Only. Balance item adjusts the balance level of the TV speakers and headphone together. Reset Resets some of the sound settings to factory defaults. Network Menu Content Network Type Disable the network connection or change the connection type.
- Page 22 System Menu Content Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Manage your privacy privileges for smart TV related applications. Press OK to enter the Privacy (*) menu and set according to your preferences.
- Page 23 You can use this option to sign out. If you sign out Works With Alexa feature will be Sign Out disabled. Starts the setup process to enable your TV to work with Google Assistant devices. Highlight Start and press OK. If the setup is priorly completed Sign Out option will be Google Assistant available.
-
Page 24: General Tv Operation
(*) This feature may not be available depending on the model of General TV Operation your TV and the selected country in the First Time Installation. Using the Channel List Set PIN: Defines a new PIN number. The TV sorts all stored stations in the channel list. You Default CICAM PIN: This option will appear as greyed can edit this channel list, set favourites or set active out if no CI module is inserted into the CI slot of the... -
Page 25: Teletext Services (Where Available)
Now/Next Schedule and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow In this layout option, only the current and next events the instructions displayed on the digital teletext screen. of the listed channels will be displayed. You can use When the Text button is pressed again, the TV returns the directional buttons to scroll through the list of the to television broadcast. -
Page 26: Troubleshooting & Tips
PC Input Typical Display Modes Troubleshooting & Tips The following table is an illustration of some of the TV will not turn on typical video display modes. Your TV may not support Make sure the power cord is plugged in securely to a all resolutions. -
Page 27: Av And Hdmi Signal Compatibility
AV and HDMI Signal Compatibility Source Supported Signals Available SECAM Back AV NTSC4.43 NTSC3.58 480i, 480p 60Hz 576i, 576p 50Hz YPbPr 720p 50Hz,60Hz 1080i 50Hz,60Hz 480i 60Hz 480p 60Hz 576i, 576p 50Hz 720p 50Hz,60Hz 1080i 50Hz,60Hz 24Hz, 25Hz, 1080p 30Hz, 50Hz, HDMI 60Hz... -
Page 28: Supported File Formats For Usb Mode
Supported File Formats for USB Mode Video File Formats Format File Extension Video Codec Audio .mpg/.mpeg/.dat/ .vob MPEG1/2, H.264, VC1 MPEG Layer 1/2/3, AC3 MPEG1/2, H.264, VC1, .ts/.trp/.m2ts/.mts MPEG Layer 1/2/3, AC3, E-AC3 HEVC/H.265 MPEG1/2, MPEG4, H.264, .avi MPEG Layer 1/2/3, AC3, AAC, WMA MJPEG .mp4/.m4a/.m4v/ .mov/. -
Page 29: Supported Dvi Resolutions
.sub Micro DVD / SubViewer .sub + .idx VOBSub .txt Micro DVD / TMPlayer / MPL2 .mpl MPL2 .smi Sami .jss JACOSUB .ttml TTML .txt / .sub DVDSUBTITLE .lrc Internal Subtitles Extension Specification .mkv VOBSub .mkv ASS / SSA / TEXT .dat, .mpg, .mpeg, .vob DVD Subtitle .mp4... -
Page 30: Connectivity
Internet Speed Test Connectivity Highlight Internet Speed Test and press the OK Wired Connectivity button. TV will check the internet connection bandwidth To Connect to a Wired Network and display the result when complete. • You must have a modem/router connected to an Advanced Settings active broadband connection. -
Page 31: Handling Of The Customer Information
Network Type and press Left or Right buttons to set as Disabled. When using Internet connecting function of this TV, after agreeing to Panasonic’s terms of service / privacy You can save your wireless network profile using the policy (hereinafter referred to as terms and conditions Save option in the Advanced Settings menu. -
Page 32: Wake On
• Registered information may be registered in the other WLAN compatible devices. Try changing the server etc. of provider. Before repairing, transferring active channel on the WLAN router. or discarding this TV, be sure to erase the information Internet Connection Not Available / Audio Video according to the terms and conditions etc. -
Page 33: Apps
network will be listed. Select one and press OK to Integrated TV Player applications will be displayed. continue. The media browser will then be displayed. Select one and press the OK button. Then select a content that you want to play back and press the OK Refer to the Media Browser menu section for further button to watch. -
Page 34: Hbbtv System
Enter the address of a website(URL) into the search/ • The application can be terminated and another address bar and highlight the Submit button on the autostart red button application can be launched. virtual keyboard and press the OK button to visit the HbbTV allows the applications to be retrieved both from site. - Page 35 Works With Alexa Example Commands You can control the functions of your TV with Alexa. Here are some voice commands that you can use: In order to do this, the setup process should be Command Function completed. The setup can be carried out in the ways described below.
-
Page 36: Google Assistant
Example Commands Google Assistant Here are some voice commands that you can use to Your TV works with Ok Google for voice control of your control the functions of your TV with Google Assistant: connected devices and appliances. Works With Ok Google Command Function By means of this feature you can control the functions... -
Page 37: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : Green&Yellow (Earth) (if there is earth cable) Blue (Neutral) Brown (Live) Fuse...
