SyncMaster 320MX-3, 320MXN-3
320MP-3, 320MPN-3

LCD Display

User Manual

The color and the appearance may differ depending on the
product, and the specifications are subject to change
without prior notice to improve the performance.

Advertisement

Table of Contents
loading

Summary of Contents for Samsung SyncMaster 320MX-3

  • Page 1: Lcd Display

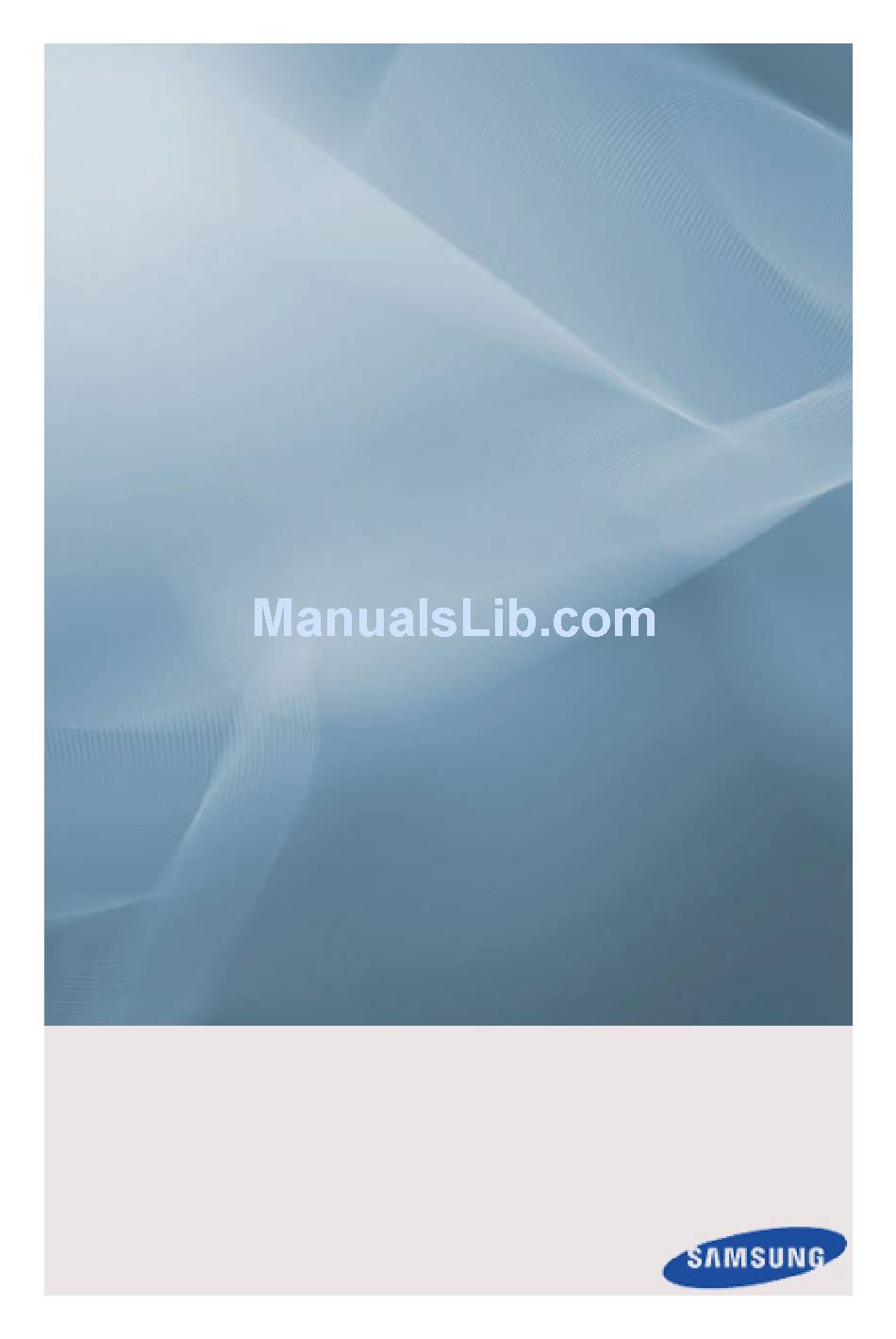

    SyncMaster 320MX-3, 320MXN-3 320MP-3, 320MPN-3 LCD Display User Manual The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
  • Page 2: Safety Instructions

    Safety Instructions Notational Note These safety instructions must be followed to ensure your safety and prevent property dam- age. Make sure to read the instructions carefully and use the product in the correct manner. Warning / Caution Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.
  • Page 3: Installation

    Ensure that the power plug is plugged into the power outlet firmly and correctly. • Do not forcefully bend or pull the power plug and do not place any heavy material on it. • Do not connect multiple appliances to the same power outlet. •...
  • Page 4 Safety Instructions DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIG- ARETTES AND ANY HEATING APPLIANCES NEAR THE PRODUCT. • Otherwise, this may result in fire. Keep heating appliances as far away from the power cord or the product as possible. • Otherwise, this may result in electric shock or fire.
  • Page 5 Edible oil, such as soybean oil, can damage or deform the prod- uct. Do not install the product in a kitchen or near a kitchen counter. Clean When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft cloth. Do not spray cleaner directly onto the surface of the product.
  • Page 6 Safety Instructions Do not place this product in a location exposed to moisture, dust, smoke, water, or in a car. • Otherwise, this may result in electric shock or fire. When you drop the product or the case is broken, turn the power off and disconnect the power cord.
  • Page 7 Safety Instructions Set a resolution and frequency appropriate to the product. • Otherwise, your eyesight may be damaged. When using headphones or earphones, do not turn the volume too high. • Having the sound too loud may damage your hearing. To avoid eyestrain, do not sit too close to the product.
  • Page 8 Safety Instructions When replacing the battery, insert it with the right polarity (+, -). • Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid. Use only the specified standardized batteries, and do not use a new battery and a used battery at the same time.
  • Page 9 Safety Instructions Do not install the product in a location low enough for children to reach. • Otherwise, it may fall and result in personal injury. • Since the front part of the product is heavy, install the product on a level and stable surface. Do not put any heavy objects on the product.
  • Page 10 Introduction Package Contents Note • After unpacking the package, make sure to check the contents of the package. • Store the packaging box in case you need to move the Product later. • If any items are missing, contact your dealer. •...
  • Page 11: Your Lcd Display

    Others (BP59-00138B) Sold separately Semi Stand KIT RGB to BNC Cable Wall Mount KIT Your LCD Display The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. Front MENU button [MENU] Introduction...
  • Page 12 To use MagicInfo with an MX-3, MP-3 model, install inside the product a net- • work box specified by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAGICINFO)] on the product. D.MENU button Opens the on-screen D.MENU.
  • Page 13 Power indicator Shows PowerSaver mode by blinking green. Note See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your LCD Display OFF when it is not needed or when leaving it unattended for long periods. Remote Control Sensor Aim the remote control towards this spot on the LCD Display.
  • Page 14 Introduction RGB/COMPONENT IN (PC/COMPO- NENT Connection Terminal (Input)) • Connect the [RGB/COMPONENT IN] port on the monitor to the RGB port on the PC using the D-SUB cable. • Connect the [RGB/COMPONENT IN] port on the monitor to the COMPONENT port on the external device using the RGB to COMPONENT cable.
  • Page 15 2 (MAGICINFO)] on the product. • To use MagicInfo with an MX-3,MP-3 model, install inside the product a network box specified by Samsung and connect the MagicInfo output on the network box to [HDMI IN 2 (MAGICINFO)] on the prod- uct.
  • Page 16 Introduction MDC(Multiple Display Control) Program Port Connect the LAN cable to [RJ45 MDC] on the product and LAN on the PC. To use an MDC, the MDC Program must be installed on the Go to Multi Control and select RJ45 MDC as the MDC Connection.
  • Page 17: Remote Control

    Note The power switches of both of the monitor and the network box must be turned on for the network box to operate normally. Remote Control Note The performance of the remote control may be affected by a TV or other electronic device operating near the LCD Display, causing a malfunction due to interference with the frequency.
  • Page 18 Introduction Turns the product On. POWER Turns the product Off. Used to enter the password during the OSD adjustment or Number Buttons to use MagicInfo. Press to change the channel. The "-" button is used to select Digital channels. / GUIDE button Electronic Program Guide (EPG) display.
  • Page 19 Selects a connected external input source or MagicInfo SOURCE mode. Press the button to change the input signal SOURCE. Changing the SOURCE is only allowed for external devices that are connected to the LCD Display at the time. DTV menu display D.MENU This button can only be used in TV mode while a TV tuner box (sold separately) is connected.
  • Page 20 EXIT MagicInfo User Installation Guide Note • Be sure to call an installation expert of Samsung Electronics to install the product. Introduction broadcasting type by using the DUAL button on the remote control while watching TV. Note Enabled when a TV tuner box is connected.
  • Page 21: Tilt Angle And Rotation

    The warranty becomes invalid if the product is installed by someone other than a profes- sional authorized by Samsung Electronics. • A Samsung Electronics service center can provide details. Tilt Angle and Rotation The product can be tilted up to 15 degrees from a vertical wall.
  • Page 22: Embedded Mount Guide

    Note A Samsung Electronics service center can provide details. 2. Embedded Mount guide <Side view> • When embedding the product in a wall, be sure there is some space behind the product for ventilation, as shown above, and maintain the ambient temperature at 35°C or lower.
  • Page 23 Introduction Mechanical Layout (320MX-3, 320MP-3) (320MXN-3, 320MPN-3) Installation VESA Bracket • When installing VESA, make sure to comply with the international VESA standards.
  • Page 24: Accessories (Sold Separately)

    • At least 2 persons are needed in order to move the LCD Display. • SAMSUNG is not responsible for any product damage or any injury caused by installation at customer's discretion. Dimensions Notice For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
  • Page 25: Wall Bracket Installation

    • Contact a technician for installing the wall bracket. • SAMSUNG Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer. • This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
  • Page 26: Wall Bracket Angle Adjustment

    • Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place after installation. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1).
  • Page 27: Cable Connections

    Note You can adjust the bracket angle between -2° and 15°. Make sure to use the top center, and not the left or the right side of the product to adjust the angle. Remote Control (RS232C) Cable connections interface Bits rate Data Bits Parity Stop Bits...
  • Page 28: Control Codes

    • RS232C cable Connector : 9-pin D-Sub Cable : Cross (reversed) cable -P1- FEMALE • Connecting method Control codes • Get control Header 0xAA • Set control Header command 0xAA command • commanding words Introduction Clear to Send Ring Indicator -P1- --------->...
  • Page 29 command type Power control Volume control Input source control Screen Mode control Screen Size control PIP on/off control Auto adjustment control Video wall Mode control Safety Lock - ID should show hexadecimal value of assigned ID, but ID 0 should be 0xFF. - Every communication will be made in hexadecimals and Checksum is the sum of all remainings.
  • Page 30 0 : Power OFF • com- Header mand 0xAA 0xFF Power : Same as above • com- Header mand 0xAA 0xFF ERR : Error code that shows what occurred error is • Volume Control • Function Personal Computer changes volume of TV or Monitor. •...
  • Page 31 ERR : Error code that shows what occurred error is • Input Source Control • Function Personal Computer changes input source of TV or Monitor . • Get Input Source Status Header command 0xAA 0x14 • Set Input Source Header command 0xAA 0x14...
  • Page 32 com- Header mand 0xAA 0xFF Input Source : Same as above • com- Header mand 0xAA 0xFF ERR : Error code that shows what occurred error is • Screen Mode Control • Function Personal Computer changes "Screen Mode" of TV or Monitor. Cannot be controlled when Video Wall is on.
  • Page 33 0xAA 0xFF Screen Mode : Same as above • com- Header mand 0xAA 0xFF ERR : Error code that shows what occurred error is • Screen Size Control • Function Personal Computer recognizes the screen size of TV or Monitor. •...
  • Page 34 Header command 0xAA 0x3C • Set the PIP ON / OFF Header command 0xAA 0x3C PIP : The PIP ON / OFF code to set for the TV or Monitor 1 : PIP ON 0 : PIP OFF • com- Header mand 0xAA...
  • Page 35 com- Header mand 0xAA 0xFF • com- Header mand 0xAA 0xFF ERR : Error code that shows what occurred error is • Video Wall Mode Control • Function Personal Computer converts Video Wall Mode of TV or Monitor when Video Wall is ON. Only works with TV or Monitor where Video Wall is on.
  • Page 36 • com- Header mand 0xAA 0xFF ERR : Error code that shows what occurred error is • Safety Lock • Function Personal Computer turns Safety Lock function of TV or Monitor ON / OFF. Can operate regardless of whether power is ON / OFF. •...
  • Page 37: Connecting A Computer

    Connections Connecting a Computer There are several ways to connect the computer to the monitor. Choose one from the following options. Using the D-sub (Analog) connector on the video card. • Connect the D-sub to the 15-pin, [RGB/COMPONENT IN] port on the back of your LCD Display and the 15 pin D-sub Port on the computer.
  • Page 38: Connecting To Other Devices

    Connect the power cord for your LCD Display to the POWER port on the back of the LCD Display. Turn on the power switch. Note Contact a local SAMSUNG Electronics Service Center to buy optional items. Connecting to Other devices Note •...
  • Page 39: Connecting Av Devices

    Connecting AV Devices Connect an audio cable to [AV/COMPONENT AUDIO IN (R-AUDIO-L)] on the product and the audio port on an external device such as a VCR or DVD player. Connect a video cable to [AV IN] on the product and the video output port on the external device.
  • Page 40: Connecting Using A Hdmi Cable

    Press SOURCE on the product or remote control and select "AV". Then, start the Camcorders with a tape inserted. Note The audio-video cables shown here are usually included with a Camcorder. (If not, check your local electronics store.) If your camcorder is stereo, you need to connect a set of two cables. Connecting Using a HDMI Cable Connect an HDMI cable to [HDMI IN 2 (MAGICINFO)] or [HDMI IN 1] on the product and the HDMI output port on a digital device.
  • Page 41: Connecting A Dvd Player

    Connect a DVI-HDMI cable to [HDMI IN 2 (MAGICINFO)] or [HDMI IN 1] and the DVI output port on the digital device. Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio output terminals of the digital output device, and con- nect the opposite jack to the [RGB/DVI/DP/HDMI AUDIO IN] terminal of the LCD Display.
  • Page 42: Connecting A Dtv Set Top (Cable/Satellite) Box

    Connecting a DTV Set Top (Cable/Satellite) Box Connect a RGB to Component cable between the [RGB/COMPONENT IN] port on the LCD Display and the P Connect a set of audio cables between the [AV/COMPONENT AUDIO IN (R-AUDIO-L)] on the LCD Display and the AUDIO OUT jacks on the Set Top Box.
  • Page 43: Connecting To Magicinfo Out

    Connecting to MAGICINFO OUT Connect the [MAGICINFO OUT] terminal and the [HDMI IN 2 (MAGICINFO)] terminal on the product using the DP to HDMI cable. Note Applicable to the MXn-3, MPN-3 model only. Connecting a LAN Cable Connect the LAN cable between the [LAN] port on the product and the [LAN] port on your Note Applicable to the MXn-3, MPN-3 model only.
  • Page 44: Connecting A Usb Devices

    Connections Connecting a USB devices You can connect USB devices such as a mouse or keyboard. Note Applicable to the MXn-3, MPn-3 model only.
  • Page 45: Using The Software

    Prepare a blank disk and download the driver Program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ Installing the Monitor Driver (Automatic) Insert CD into the CD-ROM drive. Click "Windows". Choose your monitor model in the model list, then click the "OK" button.
  • Page 46: Installing The Monitor Driver (Manual)

    Note This monitor driver is certified by Microsoft, and installing it will not damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ Installing the Monitor Driver (Manual) ® Microsoft Windows Vista™‚ Operating System Insert your Manual CD into your CD-ROM drive.
  • Page 47 This monitor driver is under certifying MS logo, and this installation will not damage your system. The certified driver will be posted on Samsung Monitor homepage. Click "Update Driver..." in the "Driver" tab. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".
  • Page 48 Using the Software Select the model that matches your monitor from the list of monitor models on the screen, and click "Next". 10. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence. ® ® Microsoft Windows XP Operating System...
  • Page 49 Using the Software Insert CD into the CD-ROM drive. Click "Start" → "Control Panel", then click the "Appearance and Themes" icon. Click "Display" icon and choose the "Settings" tab then click "Advanced...". Click the "Properties" button on the "Monitor" tab and select "Driver" tab. Click "Update Driver..."...
  • Page 50 Then click "OK" button. Note This monitor driver is certified by Microsoft, and this installation will not damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ Click the "Close" button, then click the "OK" button continually.
  • Page 51 Using the Software 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. Choose "OK" button on the "Insert disk" window. Click the "Browse" button on the "File Needed" window. Choose A:(D:\Driver), then click the "Open"...
  • Page 52 Using the Software If you can see the "Digital Signature Not Found" window, then click the "Yes" button. Then click the "Finish" button and the "Close" button. ® ® Microsoft Windows Millennium Operating System Click "Start", "Setting", "Control Panel". Double click the "Display" icon. Select the "Settings"...
  • Page 53 Using the Software Set a Keyboard for your computer. The next screen is for setting your monitor. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) Set a vertical frequency for your monitor. (You can enter the frequency directly.) Enter the model name of your monitor.
  • Page 54: Mdc Program Installation/Uninstallation

    MDC Program Installation/Uninstallation Installation Insert the installation CD into the CD-ROM drive. Click the MDC Unified installation program. If a software installation window is not displayed on the main screen, install with the "MDC Unified" execution file in the MDC folder on the CD. Click "Next"...
  • Page 55: What Is Mdc

    What is MDC? Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. Connecting to MDC Using MDC via RS-232C (serial data communications standards) An RS-232C serial cable must be connected to the serial ports on the PC and monitor.
  • Page 56 Using MDC via Ethernet Enter the IP for the primary display device and connect the device to the PC. One display device can connect to another using an RS-232C serial cable.
  • Page 57: Connection Management

    Connection Management Connection management includes the Connection list and Connection list modification options. Connection list – Connection list shows the details of the connections such as connection setting (IP/ COM, Port No, MAC, and Connection Type), connection status, Set ID Range, and detected devices. Each connection can contain a maximum of 100 devices connected in serial daisy-chain fashion.
  • Page 58: Auto Set Id

    Auto Set ID Auto Set ID feature assigns a Set ID for all the LFDs connected in daisy-chain of a selected connection. There can be a maximum of 100 LFDs in a connection. The Set ID is assigned sequentially in the daisy- chain running from 1 to 99, and then finally to Set ID 0.
  • Page 59: Command Retry

    Command Retry This feature is used to specify the maximum number of times the MDC command will be retried in case of there being no reply or a corrupted reply from an LFD. The retry count value can be set using the MDC options window.
  • Page 60: Getting Started With Mdc

    Getting Started with MDC To start the program, click Start Click Add to add a display device. If the connection is established via RS232C, go to Serial and specify the COM Port.  Programs Samsung MDC Unified.
  • Page 61 If the connection is established via Ethernet, enter the IP that was entered for the display  device.
  • Page 62: Main Screen Layout

    Main Screen Layout Change the status of a display device or the properties of the program. Menu Bar View a list of connected display devices or device groups. Device Category View a list of schedules for display devices. Schedule Category Select the display device you want to adjust.
  • Page 63 Menus You can power on or off a selected device or change the input source or volume of the device. Choose display devices from the list of sets, and select the Home tab. Home Select an item and change the corresponding setting. Power On: Power on a selected display.
  • Page 64 This menu shows a list of display devices which have following errors - fan error, temperature  error, brightness sensor error, or lamp error. Select a display device from the list. The Repair button will be enabled. Click the refresh button to refresh the error status of the display device.
  • Page 65: Screen Adjustment

    Screen Adjustment The screen settings (contrast, brightness, etc.) can be adjusted. Choose display devices from the list of sets, and select the Picture tab. Custom Select an item and change the corresponding screen setting. Color and Tint are not available if the input source is PC. ...
  • Page 66 Options Dynamic Contrast Adjust the Dynamic Contrast for the selected display device. Gamma Control Change the gamma value for the selected display. Auto Motion Plus This option is used to view dynamic images. Off: Disable the Auto Motion Plus function. ...
  • Page 67 Size Picture Size Adjust the screen size for the selected display device. The Detail item will be disabled if Picture Size is set to a mode that does not support detailed configuration. The -/+ buttons can be used to adjust Zoom. The screen can be relocated using the up/down/left/right buttons.
  • Page 68: Sound Adjustment

    Sound Adjustment You can change the sound settings. Choose display devices from the list of sets, and select the Sound tab. The Bass or Treble item will be disabled if the item is not supported by the selected set. Bass Adjust the bass for the selected display.
  • Page 69: System Setup

    3.6.11 System Setup Choose display devices from the list of sets, and select the System tab. Video Wall The Video Wall function can be used to display part of a whole picture or repeat the same picture on each of connected multiple display devices. Video Wall is enabled only when devices are in the group.
  • Page 70 Select the number of horizontal display devices. A maximum of 15 displays can be arranged in a row. A maximum of 6 can be assigned to V if 15 is assigned to H. Select the number of vertical display devices. A maximum of 15 displays can be arranged in a row.
  • Page 71 Basic information required to adjust PIP will appear in the menu screen. PIP will be disabled when Video Wall is ON.  Note that Picture Size is disabled when PIP is ON.  PIP Size View the PIP Size of the current display. PIP Source Select a PIP input source.
  • Page 72 General User Auto Color Automatically adjust the screen colors. Available only in PC mode. Auto Power Set the product to automatically power on. Standby Control Set the standby mode to activate if an input source is not detected. Fan & Temperature Configure the settings required to detect the fan speed and internal temperature for the product's protection.
  • Page 73 Security Safety Lock Lock the on-screen menus. To unlock the menus, set Safety Lock to Off. Button Lock Lock the buttons on the display device. To unlock the buttons, set Button Lock to Off. OSD Display Source OSD Select whether to display a message when the Source is changed. Not Optimum Mode OSD Select whether to display a message when a non-compatible mode is selected.
  • Page 74 Time Clock Set Change the current time on the selected display device according to the time set on a PC. If the time is not set on the display device, null values will be displayed. Timer On Time: Set the time to power on the selected display device. ...
  • Page 75 Once: Activate the timer only one time.  EveryDay: Activate the timer every day.  Mon~Fri: Activate the timer from Monday through Friday.  Mon~Sat: Activate the timer on Saturdays and Sundays.  Manual: Customize days of the week.  The checkboxes to select days of the week below Repeat are enabled only if Manual is selected.
  • Page 76 Screen Burn Protection Pixel Shift Move the screen slightly at specified time intervals to prevent screen burn-in. Screen Saver This function prevents screen burn-in when the screen of the selected display device is left idle for an extended period of time. Interval: Set the interval to activate the Screen Saver.
  • Page 77 The Safety Screen function can be used to prevent screen burn-in when a stationary image displays on the screen of a display device for an extended period of time. Lamp Control Lamp Control is used to adjust the backlight to reduce power consumption. Automatically adjust the backlight of the selected display device at a specified time.
  • Page 78 Reset Reset Picture Reset the screen settings. Reset Sound Reset the sound settings. Reset System Reset the system settings. Reset All Reset the screen, sound and system settings at the same time. Edit Column Select the items you want to display in the list of sets. Information View the program information.
  • Page 79: Other Functions

    3.6.13 Other Functions Resizing a Window Place the mouse pointer on a corner of the program window. An arrow will appear. Move the arrow to customize the size of the program window.
  • Page 80 Group Management Creating Groups Create groups and manage the list of sets on a group basis. Duplicate group names cannot be used. Right-click and select Group>Edit in the display device list section on the left side of the program window. In the Edit Group window displayed, click Add on the sub level or Add on the same level.
  • Page 81 The Add on the same level button is enabled only if at least one group is created. Enter the group name. Deleting Groups Select a group name, and click Edit. In the Edit Group window displayed, click Delete. Click Yes. The group will be deleted. Renaming Groups Select a group name, and click Edit.
  • Page 82 Schedule Management Creating Schedules Create and register a schedule on a group basis. Click All Schedule List in the schedule section on the left side of the program window. The Add button will be enabled in the middle. Click the Add button. The Add Schedule window will appear.
  • Page 83 Click Add below the Device Group item, and select the group you want to add a schedule to. Select Date&Time/Action and click OK. The schedule will be added and a list of schedules will appear in the set list window. Device Group: Select a group.
  • Page 84 Troubleshooting Guide Issue The display you want to control does not appear on the system information chart. The display you want to control does not appear on the other Control Info Grids. The following message appears repeatedly. Displays power on or off at different time from one another even though On Time or Off Time is set.
  • Page 85 How display properties are shown when multiple displays are used When no display is selected: The default value is displayed. When one display is selected: Settings for the selected display are displayed. When two displays are selected (e.g. in sequence of ID 1 andID 3): The settings for ID 1 are displayed before the settings for ID 3.
  • Page 86: Adjusting The Lcd Display

    [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Source List Use to select PC, HDMI or other external input sources connected to the LCD Display.
  • Page 87 DisplayPort MagicInfo - A network box must be connected to use MagicInfo with a MX-3,MP-3 model. TV- Enabled if a TV tuner box is connected. Note The [RGB/COMPONENT IN] port is compatible with RGB (PC) and Component signals. However, the picture may display abnormally if the connected external input signal is different from the selected video signal.
  • Page 88 Note • PIP is disabled if the primary screen does not receive a signal. • A TV tuner box (sold separately) must be connected to use the TV. • PC : DVI / AV / HDMI1 / HDMI2 / DisplayPort •...
  • Page 89: Source Autoswitch Settings

    • Medium • • Opaque Edit Name Name the input device connected to the input jacks to make your input source selection easier. VCR / DVD / Cable STB / HD STB / Satellite STB / AV Receiver / DVD Receiver / Game /Camcorder / DVD Combo / DHR / PC / DVI PC / DVI Devices Note •...
  • Page 90: Source Autoswitch

    Source AutoSwitch When the Source AutoSwitch is On, the display video source will automatically be searched for active video. The Primary Source selection will be activated, if the current video source is not recognized. Secondary source selection will become active, if no primary video source is available. If the primary or secondary source is not recognized, the display will search again, if no active video is found the display will show the no-input-signal message.
  • Page 91: Secondary Source

    To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Adjusting the LCD Display...
  • Page 92 Mode Note Not available when Dynamic Contrast is set to On. Information Recommended for communicating exact information (e.g. public information). Advertisement Recommended for displaying advertisements (e.g. videos or indoor or outdoor ads). Custom Custom By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
  • Page 93: Color Tone

    Adjust the mid-range brightness (Gamma) for the picture. • Natural • Mode 1 Sets the picture brighter than Natural. • Mode 2 Sets the picture darker than Mode 1. • Mode 3 Increases the contrast between dark and bright colors. Color Tone Note Not available when Dynamic Contrast is set to On.
  • Page 94: Color Control

    Color Control Adjusts individual Red, Green, Blue Color balance. Note Not available when Dynamic Contrast is set to On. Green Blue Color Temp. Color Temp. is a measure of the 'warmth' of the image Colors. Note This function is enabled when Mode is set to Custom, and Dynamic Contrast and Color Tone are Off.
  • Page 95: Auto Adjustment

    Position Adjusts the screen location horizontally and vertically. Auto Adjustment The values of Fine, Coarse, Position are adjusted automatically. By changing the resolution in the control panel, the auto function is performed. Note Available in PC mode only. Signal Balance This is used to make up for the weak RGB signal transmitted by a long signal cable.
  • Page 96: Pip Picture

    G-Gain B-Gain R-Offset G-Offset B-Offset Size The Size can be switched. 16:9 PIP Picture Adjusts the PIP Screen Settings. Note • Available Modes: PIP On Contrast Adjusts the Contrast of the PIP window on the screen. Brightness Adjusting the LCD Display...
  • Page 97: Dynamic Contrast

    Adjusts the Brightness of the PIP window on the screen. Sharpness Adjusts the Sharpness of the PIP window on the screen. Color Adjusts the Color of the PIP window on the screen. Note Only enabled when the PIP input source is HDMI. Tint Adds a natural tone to the PIP window.
  • Page 98: Picture Reset

    [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Mode The LCD Display has four automatic picture settings ("Dynamic", "Standard", "Movie"...
  • Page 99 Standard Movie Custom Custom By using the on-screen menus, the contrast and brightness can be changed to your personal preference. Note Not available when Dynamic Contrast is set to On. Contrast Adjusts the Contrast. Brightness Adjusts the Brightness. Sharpness Adjusts the picture Sharpness. Color Adjusts the picture Color.
  • Page 100 The Color tones can be changed. The individual Color components are also user adjustable. Note Not available when Dynamic Contrast is set to On. Cool2 Cool1 Normal Warm1 Warm2 Note • If you set the Color Tone to Cool2, Cool1, Normal, Warm1, or Warm2, the Color Temp.
  • Page 101: Digital Nr (Digital Noise Reduction)

    4:3 - Sets the picture to 4:3 normal mode. Screen Fit - Displays the input scenes as they are without any cutoff when HDMI 720p, 1080i, 1080p signals are input. Custom - Changes the resolution to suit the user's preferences. Note •...
  • Page 102: Film Mode

    Note For Timing which can be used for both the PC and the DTV in HDMI mode, HDMI Black Level will be activated. Film Mode Film Mode calibrates unnatural picture when watching a movie (24 frames) played on a TV (30 frames).
  • Page 103 Dynamic Contrast Dynamic Contrast automatically detects the distribution of the visual signal and adjusts to create an optimum contrast. Note This function is disabled when PIP or Energy Saving is On. Lamp Control Adjusts the inverter lamp in order to reduce energy consumption. Note Not available when Dynamic Contrast is set to On.
  • Page 104 [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Mode The LCD Display has a built-in high fidelity stereo amplifier.
  • Page 105: Auto Volume

    Emphasizes low frequency audio. Treble Emphasizes high frequency audio. Balance Allows you to Adjusts the sound balance between the left and right speakers. Auto Volume Reduces the difference in volume control between broadcasters. SRS TS XT SRS TS XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers.
  • Page 106: Sound Select

    Sound Select Enable the sound of either the primary or secondary display in PIP mode. Note Available when PIP is set to On. Main Speaker Select When you use the product with it connecting to a Home Theater, turn the internal speakers off so you can listen to sound from the Home Theater's (external) speakers.
  • Page 107: Clock Set

    [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Language You can choose one of 13 languages.
  • Page 108: Sleep Timer

    Current Time Setting. Sleep Timer Turns the LCD Display off automatically at certain times. Timer1 / Timer2 / Timer3 You can set the LCD display to automatically turn on or off at a specified time. Note • Only enabled when the clock is set using the Clock Set menu. •...
  • Page 109: Menu Transparency

    You can register holidays. • Delete Selected You can delete selected holidays. Note • Only enabled when registered holidays are selected. • More than one holiday can be selected and deleted. • Delete All You can delete all the registered holidays. Menu Transparency Change the transparency of the background of the OSD.
  • Page 110: Energy Saving

    High Medium Opaque Safety Lock Change PIN The password can be changed. The preset password for the LCD Display is "0000". Note If you forgot your password, press the remote buttons INFO + EXIT + MUTE to reset the password to "0000." Lock This is the function that locks the OSD in order to keep the current settings or to prevent others from adjusting the settings.
  • Page 111: Video Wall

    Video Wall A Video Wall is a set of video screens connected together, so that each screen shows a part of the whole picture or where the same picture is repeated on each screen. When the Video Wall is on, you can adjust the Video Wall screen setting. Note •...
  • Page 112: Screen Position

    Sets how many parts the screen should be divided horizontally. Fifteen adjustment levels: 1~15. Note If Vertical is set to 15, the maximum value for Horizontal is 6. Vertical Sets how many parts the screen should be divided vertically. Fifteen adjustment levels: 1~15. Note If Horizontal is set to 15, the maximum value for Vertical is 6.
  • Page 113: Pixel Shift

    Note This function is not available when the power is turned off. Pixel Shift Pixel Shift To prevent after-images on the screen, you can use this function to have pixels move on the LCD in the horizontal or vertical direction. •...
  • Page 114 Time Set the time interval for performing the horizontal or vertical movement, respectively. Timer Timer You can set the timer for Screen Burn Protection. If you start the operation to erase any residual image, the operation will be performed for the set period of time and then automatically finish.
  • Page 115 Period Use this function to set the execution period for each mode set in the timer. Time Within the set period of time specify a time for execution. This function prevents after-images on the screen by moving long black and white vertical lines.
  • Page 116: Side Gray

    Pixel This function prevents after-images by moving many pixels on the screen. Side Gray Select the brightness of the grey for the screen background. • • Light • Dark Resolution Select When the picture is not displayed properly on the screen when setting the graphics card resolution of the computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768@ 60Hz or 1366 x 768 @ 60Hz, by using this function(Resolution Select), you can have the picture displayed on the screen in the specified resolution.
  • Page 117: Power On Adjustment

    1360 X 768 1366 X 768 Note Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz or 1366 x 768 @ 60Hz. Power On Adjustment Adjusts the Power On time for the screen.
  • Page 118: Fan Controls

    Fan Controls Selects auto or manual for the fan speed settings. • Auto • Manual Fan Speed Setting Sets the fan speed within a range of 0 and 100. Note Enabled when Fan Control is set to Manual. Temperature Control Detects the product's internal temperature and specifies the desired temperature.
  • Page 119: Current Temperature

    Note • It is best to set Fan Control to Auto when you change the Temperature Control setting. Current Temperature Shows the current temperature of the product. Auto Power Enables or disables Auto Power for the product. • • Note When Auto Power is On, the product will power on automatically as soon as it is connected to power.
  • Page 120: User Auto Color

    User Auto Color Auto Color Automatically adjusts the Colors. Reset Resets the Color settings. Note Enabled only in PC mode. Standby Control Sets the standby mode, which will be activated when no input signal is detected. • A message will read No Signal if no input signal is detected. •...
  • Page 121: Lamp Schedule

    Lamp Schedule Adjusts the luminance to a user-specified value at a specified time. OSD Display Displays or hides a menu item on the screen. Source OSD • • Not Optimum Mode OSD • • No Signal OSD Adjusting the LCD Display...
  • Page 122: Software Upgrade

    • • MDC OSD • • Software Upgrade Performs a software upgrade. Connect the product to a computer via a digital signal such as DVI or HDMI. Click the BMP image file converted from an SW code. The image below will appear on the screen of the product.
  • Page 123: Setup Reset

    Note • This only operates with a digital signal, such as in DVI, HDMI1, or HDMI2 mode. (The input resolution must be identical to the panel resolution.) • In HDMI1 and HDMI2 modes, the timing values used for both the PC and TV are only supported if the Edit Name is set to PC or DVI PC.
  • Page 124 [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Multi Control Assigns an individual ID to the SET.
  • Page 125 [HDMI IN 2 (MAGICINFO)] on the product. To use MagicInfo with an MX-3, MP-3 model, install inside the product a network box specified • by Samsung and connect the MagicInfo output on the network box to[HDMI IN 2 (MAG- ICINFO)] on the product. Note •...
  • Page 126 • For drive D:, EWF is not applied. • To save Setup contents that have been changed when EWF is in the Enable state, you must Commit them. • By selecting Disable, Enable or Commit, the system is restarted. MagicInfo 1.
  • Page 127 Adjusting the LCD Display 3. Select Language - step 3 When using multiple languages, you can choose and set a specific language among them. Note English is set as the default language. You do not need to select a language if you will be using English as the menu display language. 4.
  • Page 128 Adjusting the LCD Display Shows the settings that have been selected by the user. Note If the MagicInfo icon is not displayed on the notification area, double click the MagicInfo icon on the window desktop. The icon will appear.
  • Page 129: Troubleshooting

    Troubleshooting Self-Test Feature Check Note Check the following items yourself before calling for assistance. Contact a Service Center for problems that you cannot solve by yourself. Self-Test Feature Check Turn off both your computer and the LCD Display. Unplug the video cable from the back of the computer. Turn on the LCD Display.
  • Page 130: Symptoms And Recommended Actions

    2) Maintaining the Flat Panel Display Screen. Clean with a soft cloth (cotton flannel). Symptoms and recommended Actions Note A LCD Display recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the LCD Display to become blank, have poor Coloring, become noisy, etc.
  • Page 131: Problems Related To The Screen

    Check if the signal cable between the computer and the LCD Display is securely con- nected. (Refer to Connecting a Computer) Problems related to the Screen Note Problems related to the LCD Display screen and their solutions are listed. The screen is blank and the power indicator is off. Ensure that the power cord is firmly connected and the LCD Display is on.
  • Page 132: Problems Related To Audio

    The screen Color is inconsistent. Adjust the Color Control option in the OSD adjustment menu. The Color image is distorted by dark shadows. Adjust the Color Control option in the OSD adjustment menu. The Color white is poor. Adjust the Color Control option in the OSD adjustment menu. The Power Indicator blinks.
  • Page 133 Check if a special fluorescent or neon lamp is on in the vicinity. Q & A How can I change the frequency? The frequency can be changed by reconfiguring the video card. Note That video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.) How can I adjust the resolution? Windows XP:...
  • Page 134: Specifications

    Without Stand Weight With Network (320MXN-3, 320MPN-3) Without Network (320MX-3, 320MP-3) 320MX-3, 320MP-3, 320MXN-3, 320MPN-3 31.5 inches / 80 cm 697.68 mm(H) x 392.25 mm(V) 30~81 kHz 56~85 Hz 1366 x 768 @ 60 Hz 1920 x 1080 @ 60 Hz 780.0 mm x 545.0 mm x 311.0 mm / 30.7 x 21.5 x 12.2...
  • Page 135 (USA Only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 PowerSaver This LCD Display has a built-in power management system called PowerSaver. This system saves energy by switching your LCD Display to low-power mode when it has not been used for a certain amount of time.
  • Page 136: Preset Timing Modes

    PowerSaverd State Power Indicator 320MXN-3, 320MPN-3 (With work Box) Power Indi- 320MX-3, cator 320MP-3 (Without Network Box) Note • The actual power consumption may be different from the indicated power consumption above if the system conditions or settings are changed.
  • Page 137 Specifications Display Mode Horizontal Frequency (kHz) VESA, 848 x 480 31.020 VESA, 1024 x 768 48.363 VESA, 1024 x 768 56.476 VESA, 1024 x 768 60.023 VESA, 1152 x 864 67.500 VESA, 1280 x 768 47.776 VESA, 1280 x 960 60.000 VESA, 1280 x 1024 63.981...
  • Page 138: For A Better Display

    Information For a Better Display Adjust the computer resolution and screen injection rate (refresh rate) on the computer as described below to enjoy the best picture quality. You can have an uneven picture quality on screen if the best picture quality is not provided for TFT- LCD.
  • Page 139 Power Off, Screen Saver, or Power Save Mode • Turn the power off for 2 hours after 12 hours in use • Set the Monitor to power off with the PC Display Properties Power Scheme. • Use a Screen saver if possible - Screen saver in one Color or a moving image is recommended.
  • Page 140 Change the characters Color periodically • Use Bright Colors with little difference in luminance. - Cycle : Change the characters Color and background Color every 30 minutes • Every 30 minutes, change the characters with movement. • Have the images and logo cycle periodically. - Cycle: Display moving image together with Logo for 60 seconds after 4 hours in use.
  • Page 141 Information • Apply the Screen Erasing function - Symptom: 2 Vertical blocks move while erasing the display...
  • Page 142 Appendix Contact SAMSUNG WORLDWIDE Note If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A CANADA MEXICO ARGENTINA BRAZIL BOLIVIA CHILE COLOMBIA COSTA RICA DOMINICA ECUADOR EL SALVADOR GUATEMALA HONDURAS JAMAICA...
  • Page 143 From landline & mobile : (+40) 21 206 01 10 SERBIA 0700 SAMSUNG (0700 726 7864) SLOVAKIA 0800 - SAMSUNG (0800-726 786) SPAIN 902 - 1 - SAMSUNG (902 172 678) SWEDEN 0771 726 7864 (SAMSUNG) SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) Appendix Europe http://www.samsung.com/be_fr...
  • Page 144 8-10-800-500-55-500 MONGOLIA UKRAINE 0-800-502-000 BELARUS 810-800-500-55-500 MOLDOVA 00-800-500-55-500 AUSTRALIA 1300 362 603 NEW ZEALAND 0800 SAMSUNG (0800 726 786) CHINA 400-810-5858 HONG KONG (852) 3698 - 4698 INDIA 1800 1100 11 3030 8282 1800 3000 8282 1800 266 8282 INDONESIA...
  • Page 145 PHILIPPINES 1-800-10-SAMSUNG (726-7864) for PLDT 1-800-3-SAMSUNG(726-7864) for Digitel 1-800-8-SAMSUNG(726-7864) for Globe 02-5805777 SINGAPORE 1800-SAMSUNG (726-7864) THAILAND 1800-29-3232 02-689-3232 TAIWAN 0800-329-999 0266-026-066 VIETNAM 1 800 588 889 IRAN 021-8255 OMAN 800-SAMSUNG (726-7864) KUWAIT 183-2255 BAHRAIN 8000-4726 EGYPT 08000-726786 JORDAN 800-22273 MOROCCO...
  • Page 146 Terms Dot Pitch Vertical Frequency Horizontal Frequency Interlace and Non-Interlace Methods Plug & Play Resolution Appendix The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The dis- tance between two dots of the same Color is called the 'Dot Pitch'.
  • Page 147: Correct Disposal

    Reproduction in any manner whatsoever without the written permission of Samsung Elec- tronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this ma- terial.

Table of Contents
