- Page 1 User’s Guide Digital Video Baby Monitor Models: MBP50, MBP50-2, MBP50-3, MBP50-4 The features described in this User’s Guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

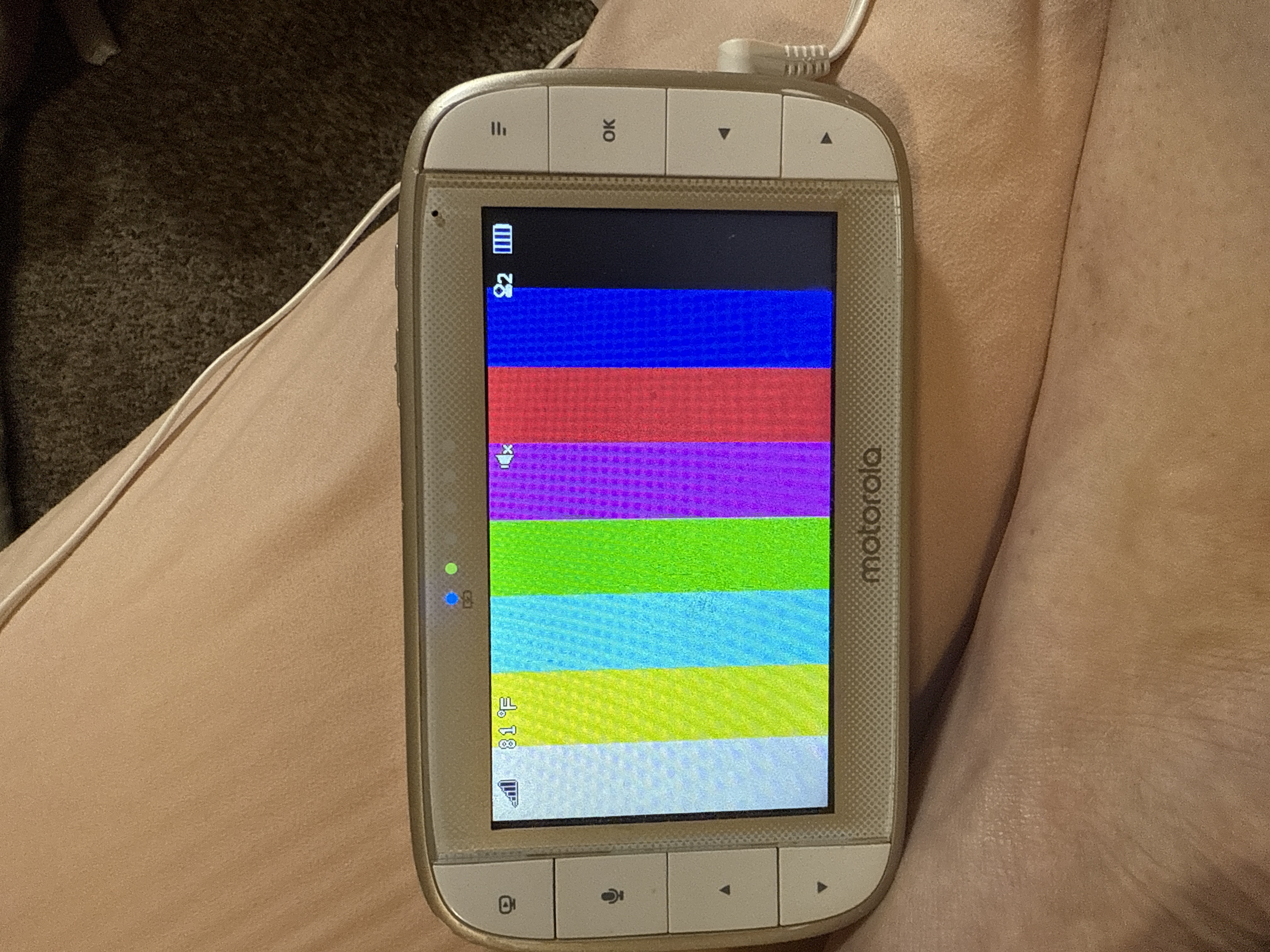

- Page 3 Overview of the Parent Unit 13 14 15 Display (LCD screen) Unit ON/OFF LEDs (Green) VIDEO ON/OFF button Audio Level LEDs (Green, Orange, Press to turn the LCD screen Red, Red) ON/OFF Volume button TALK button Press -/+ to decrease/increase Press and hold to speak to your baby Volume level on Parent Unit RESET button (recessed - use...
- Page 4 Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Screen changes to Black/White) Talk Mode Battery Level Indication (4 Levels) Pan Left Pan Right Tilt Up Tilt Down Zoom Level Control (1X, 2X) Brightness Level Control (8 Levels) Lullaby Control (5 Sound Selections) Alarm Setting (6h, 4h, 2h, Off) Temperature scale select (...
- Page 5 Overview of Your Baby Unit PAIR ON / OFF 1. Photo Sensor (Night Vision Mode) 6. POWER ON/OFF switch 2. Camera Lens 7. Speaker 3. Infrared LEDs (x 8, for night vision) 8. PAIR button 4. Power LED 9. Power Adapter Socket 5.
-
Page 6: Table Of Contents
Table of contents 1. Safety Instructions ..................7 2. Getting Started..................10 Baby Unit Power Supply................10 Parent Unit Power Supply ................. 10 Registration (Pairing) ................12 3. Using the Baby Monitor................13 Setting up ....................13 Pan and Tilt ....................13 Night Vision Mode .................. -
Page 7: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1m (3ft) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 8 Baby Unit SET UP & USE: ● Choose a location for the Baby Unit that will provide the best view of your baby in their cot. ● Place the Baby Unit on a flat surface, such as a dresser, desk, or shelf or mount the Unit to a wall securely using the keyhole slot on the underside of the stand.
- Page 9 • Do not place the Baby Monitor near a heat source. • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Do not touch the plug contacts with sharp or metal objects. CAUTION The Parent Unit includes a built-in, lithium-ion rechargeable battery pack, which is not a user-accessible item.
-
Page 10: Getting Started
2. Getting Started Baby Unit Power Supply 1. Connect the small plug of the power adapter to the Baby Unit (camera) and the other end to a suitable mains power socket. NOTE Only use the enclosed power adapter (5V DC / 1000mA). 2. - Page 11 1. Connect the plug of the power adapter to the Parent Unit and the other end to a suitable mains power socket. Only use the enclosed power adapter (5V DC / 1000mA). 2. Press and hold the POWER ON/OFF button for 3 seconds to turn ON the Parent Unit.
-
Page 12: Registration (Pairing)
Registration (Pairing) The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: button of the Parent Unit and the menu bar will pop up. -
Page 13: Using The Baby Monitor
3. Using the Baby Monitor Setting up • Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. • Adjust the angle of the Baby Unit's camera by using the pan and tilt function from the Parent Unit, to move up, down, left and right until you are satisfied with the image shown on the Parent Unit. -
Page 14: Temperature Display (Hh °C / °F Or Ll °C / °F)
Temperature Display (HH °C / °F or LL °C / °F) The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen. The readings will turn RED if the temperature goes above 29°C / 84°F or below 14°C / 57°F. -
Page 15: Parent Unit Menu Options
4. Parent Unit Menu Options Volume 1. Press the Volume button - or + to adjust the volume level, the icon will pop up and you can select the desired volume level from level 0~8. (The default volume level setting is level 5, and level 0 is OFF.) Brightness 1. -
Page 16: Camera Control
Camera Control 4.6.1 Add (pair) a camera 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted, and del/ add/ view/ scan menu will pop up. 3. -
Page 17: Delete A Camera
4.6.3 Delete a camera 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted, and del/ add/ view/ scan menu will pop up. 3. Press the UP button or DOWN button to select , and press the... -
Page 18: Power Saving Mode
Power Saving mode 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted. 3. Press the UP button or DOWN button to select auto video off after 5 mins, 30 mins or 60 mins if operating on batteries only. -
Page 19: Disposal Of The Device (Environment)
5. Disposal of The Device (environment) At the end of the product lifecycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 20: Cleaning
6. Cleaning Clean the Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the product with thinners or other solvents and chemicals –... -
Page 21: Help
7. Help Display No display • Try recharging or press the RESET button once. • Reset the units. Press the RESET button once on the Parent Unit and unplug both the units' electrical power, then plug them back in. • Is the unit turned on? Press and hold the ON/OFF button on the Parent Unit to turn it ON. - Page 22 Interference Noise interference on your Parent Unit • Your Baby and Parent Units may be too close. Move them farther apart. • Make sure there is at least 1 to 2 metres between the 2 units to avoid audio feedback. •...
-
Page 23: General Information
If you think you need a battery replacement, please contact customer service. Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold... - Page 24 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 25 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
- Page 26 Unauthorised Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorised service centres, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated;...
- Page 27 FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 28 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 29 Technical Specifications Baby Unit Frequency 2.4 GHz to 2.48 GHz Image sensor colour CMOS 1M Pixels IR LED 8 pcs ower Adapter Ten Pao International Ltd. S006AKU0500100 Input: 100-240V AC, 50/60Hz, 200mA; Output: 5.0V DC, 1000mA WARNING Use only with supplied power supply. General Information...
- Page 30 Parent Unit Frequency 2.4 GHz to 2.48 GHz Display 5" diagonal TFT LCD Display colours 16.7M colour LCD Brightness control 8 steps Volume control 8 steps+Off Power Adapter Ten Pao International Ltd. S006AKU0500100 Input: 100-240V AC, 50/60Hz, 200mA; Output: 5.0V DC, 1000mA WARNING Use only with provided power supply.
- Page 31 International LTD., official licensee for this product. MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2018 Motorola Mobility LLC. All rights reserved.
