Sealey National Machinery NA3010 Instructions

Thank you for purchasing a National Machinery product. This product is produced and manufactured to a high standard of dependability and
will, if used according to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY PRECAUTIONS
Ensure the jack is in sound condition and good working order.
3
Take action for immediate repair or replacement of damaged
parts. Use genuine parts only. The use of unapproved parts
may be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit working area.
3
Keep working area clean and tidy and free from unrelated
3
materials.
Use jack on level and solid ground, preferably concrete. Avoid
3
tarmacadam as jack may sink in.
Place chocks under wheels of vehicle (but ensure wheels of
3
jack can move freely).
Ensure the vehicle's handbrake is engaged, the engine is
3
switched off and transmission is in gear (or "PARK" if automatic).
Ensure minimum distance of 0.5m between vehicle and static
3
objects such as doors, walls, etc., to allow for vehicle tilting.
Ensure there are no passengers in the vehicle.
3
Ensure all non-essential persons keep a safe distance whilst
3
the jack is in use.
Only place jack under vehicle manufacturer's recommended
3
lifting points (see vehicle handbook).
Check the lifting point is stable and centred on the jack saddle.
3
Ensure the jack wheels are free to move and that there are no
3
obstructions.
Use correctly rated axle stands under the vehicle before
3
proceeding with any task.
Ensure there are no persons or obstructions beneath the
3
vehicle before lowering.
Use a qualified person to maintain or repair the jack hydraulic
3
system.
IMPORTANT! During the jacking operation, ensure that the

vehicle-to-jack saddle contact point are always visible.
DANGER: Use the jack for lifting only, NOT for supporting the
p
lifted load.
DO NOT operate the jack if damaged.
7
DO NOT allow untrained persons to operate the jack.
7
DO NOT exceed the rated capacity (3Tonne) of the jack.
7
DO NOT allow the vehicle to move while supported by the
7
jack, or use the jack to move the vehicle.
DO NOT jack vehicle if there is a risk of spillage of fuel, battery
7
acid, or other dangerous substances.
DO NOT work under the vehicle until suitably rated axle stands
7
have been correctly positioned.
DO NOT use the jack for purposes other than which it is intended.
7
DO NOT top up hydraulic system with brake fluid. Use
7
hydraulic jack oil only.
DO NOT adjust the safety overload valve.
7
When not in use, store jack, fully lowered, in a safe, dry,
3
childproof area.
2. SPECIFICATION
Single-piece hydraulic unit with heavy chassis design. Integral
American cog-type release mechanism and long two-piece handle.
Heavy-duty castors and large saddle design ease positioning under
vehicle. Fitted with safety overload valve and pump-through valve to
prevent handle locking at maximum ram extension. Ideal for loaded
vans up to 3.5tonne GVW.
Capacity:....................................................................................3tonne
Minimum Saddle Height: ..........................................................133mm
Maximum Saddle Height: .........................................................515mm
Maximum Chassis Height:........................................................154mm
Length:......................................................................................661mm
Weight: ...................................................................................... 36.8kg

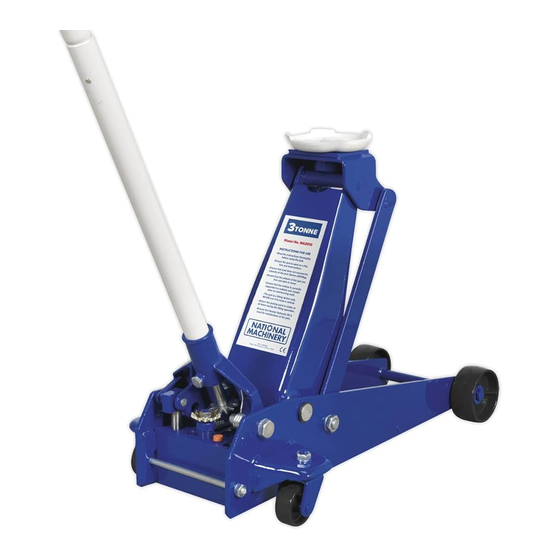

INSTRUCTIONS FOR:
TROLLEY JACK 3 TONNE
STANDARD CHASSIS
MODEL No: NA3010
3. OPERATING INSTRUCTIONS
3.1. Before first use.
3.1.1. Assemble the handle by lining up the holes in the two-piece
handle and fasten with the assembly screw.
3.1.2. Loosen location bolt at the back of the handle base. Insert the
jack handle and tighten the bolt.
3.1.3. Before using jack, purge the hydraulic unit in order to eliminate
any air in the system. Open the valve by turning the handle
anti-clockwise (fig.1), and pumping 8 or 9 times. When
complete, close the release valve by turning the handle fully
clockwise (fig.1).
3.1.4. Place a few drops of hydraulic jack oil onto the pump piston
and pump the handle several times to distribute the oil.
Thoroughly lubricate all moving parts.
3.2. General jacking.
WARNING! Before lifting ensure Section 1 safety instructions
p
are read and understood.
3.2.1. Prepare the vehicle as mentioned in the safety instructions
ensuring the ground on which the jack is to stand is level and
solid (not tarmacadam) and use chocks under wheels of
vehicle.
3.2.2. Position the jack saddle under the vehicle manufacturer's
recommended lifting point.
3.3. Jacking the vehicle.
3.3.1. Turn the handle clockwise to close the release valve (fig.1)
and commence pumping handle up and down until the jack
saddle reaches the vehicle jacking point. Check the jacking
point is centrally located on the saddle and continue to pump
the handle to raise the vehicle.
3.3.2. Should the jack become overloaded, a safety excess pressure
valve will open and stop the jack from lifting.
WARNING! The jack is a lifting device only and must not be
p
used to support the load. Use correctly rated axle stands to
support the load.
3.4. Lowering the vehicle.
WARNING! Ensure there are no persons or obstacles beneath
p
the vehicle, or in the path of it's descent.
3.4.1. Raise the jack high enough for the axle stands to be easily
removed. Then turn the handle slowly anti-clockwise to open the
release valve (fig.1).
3.4.2. The lowering speed is controlled by the amount the release
valve is opened. Lower carefully, avoiding any sudden
changes in descent rate which could shock load the hydraulic
system.
Original Language Version
fig.1
NA3010 ISSUE No:1 - 01/10/12
