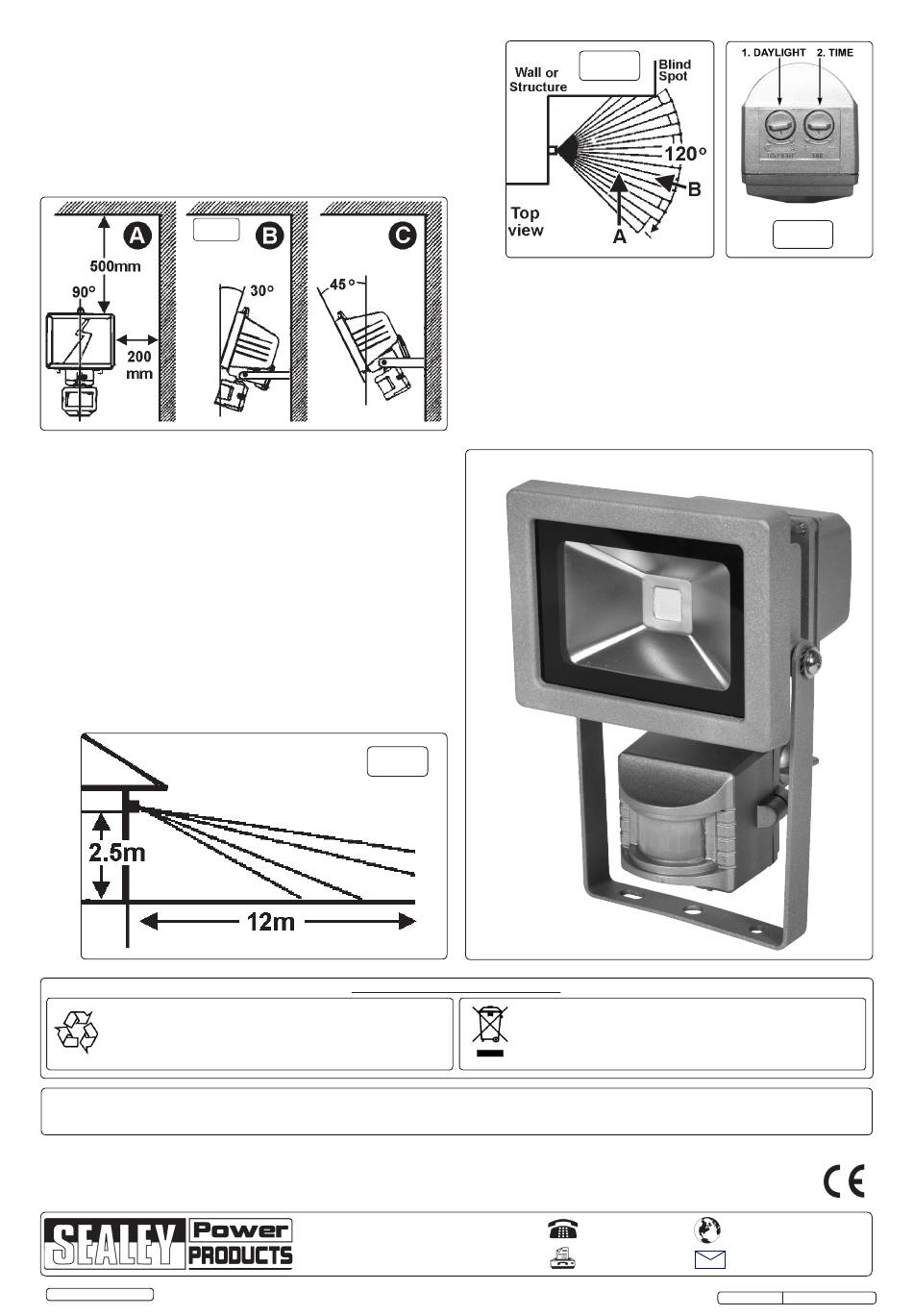

following minimum distances between the light and any surface/object.
see fig.2.
● 500mm minimum between the top of the light and any overhead
surface, or objects, i.e. ceilings, overhangs.
● 200mm between sides of light and end or side walls, surface
or objects.
● 2 metres minimum between the front of the light and any object to be
illuminated.
fix the light to vertical surface with appropriate fixings. Do not tilt the
light back beyond 30° (fig 2B) or forward more than 45° (fig 2c).
fig 2.
4.2.
sensor
the sensor may be angled independently of the light. Mounted at
approximately 2.5m above the ground the sensor will have approx 12m
range (fig 3) with a 120º spread (fig 4)
4.2.1 the sensor range can be reduced or optically adapted to local
conditions by adjusting the sensor angle accordingly.
4.2.2 further adjustment may be made by tuning the two potentiometers
on the underside of the sensor as follows: (refer to figure 5).
switch 1. Daylight adjustment: to adjust the sensor to come on in
accordance with the diminishing daylight. from 0 to 30 LuX.
switch 2. time adjuster: to adjust the amount of time the light will stay
on when activated. Minimum is 6 seconds, maximum is 20 minutes.
notE: sensitivity. the sensor range will vary with temperature and
factors such as passing cars, shade from large trees etc. During cold
weather the sensor range will be greater than when hot in summer
temperatures. for example during hot weather the forward detection
range could fall from 12 to 6m. note: the sensitivity factor is far greater
when an object passes across the detection area (fig 4.A) than when an
object approaches towards the detector (B).
recycle unwanted materials instead of disposing of them
as waste. All tools, accessories and packaging should be
sorted, taken to a recycle centre and disposed of in a
manner which is compatible with the environment.
parts support is available for this product. to obtain a parts listing and/or diagram, please log on to
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
iMportant: no liability is accepted for incorrect use of this product.
warrantY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
inforMation: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
© Jack sealey Limited
fig 3.
EnVironMEntaL protEction.
www.sealey.co.uk, email sales@sealey.co.uk or phone 01284 757500.
sole Uk Distributor, sealey group,
Kempson Way, suffolk Business Park,
Bury st. Edmunds, suffolk,
iP32 7Ar
Original Language Version
fig 4.
4.3.
gEnEraL
repairs must only be undertaken by a qualified electrician.
4.3.1 clean the light with a dry, dust-free cloth. Do not use solvents, or
abrasives to clean the light.
4.3.2 if necessary clean the glass shield (when cold) with alcohol and a soft
cloth. if the glass is damaged, Do not use the light without the glass
shield.
4.3.3 Although weather proof the light must not be stored wet. should the unit
become wet, unplug from mains, wipe dry and store accordingly.
Do not use the light without the weather seals intact.
When the product is no longer required, it must be
disposed of in an environmentally protective way. contact
your local solid waste authority for recycling information.
