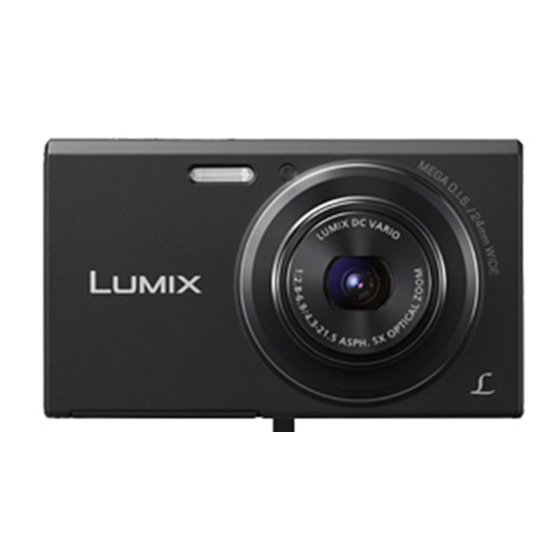

Panasonic Lumix DMC-FH10P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Digital Camera
  5. DMC-FH10P
  6. Service manual

Panasonic Lumix DMC-FH10P Service Manual

Hide thumbs Also See for Lumix DMC-FH10P:
Table of Contents

Advertisement

Quick Links

Download this manual
DMC-FH10P
Model No.
DMC-FH10PC
DMC-FH10PU
DMC-FH10GA
DMC-FH10GC
DMC-FH10GF
DMC-FH10GK
DMC-FH10GN
DMC-FH10GT
DMC-FS50EB
DMC-FS50EE
DMC-FS50EF
DMC-FS50EG
DMC-FS50EP
Colour
[DMC-FH10]
(S)...........Silver Type (except P/PC)
(K)...........Black Type
(P)...........Pink Type (except PC/GN)
(V)...........Violet Type (except P/PC/GT)
[DMC-FS50]
(S)...........Silver Type
(K)...........Black Type
(P)...........Pink Type (only EE)
(V)...........Violet Type (only EE)
© Panasonic Corporation 2013 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC1302003CE
B26
Digital Camera

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix DMC-FH10P

Summary of Contents for Panasonic Lumix DMC-FH10P

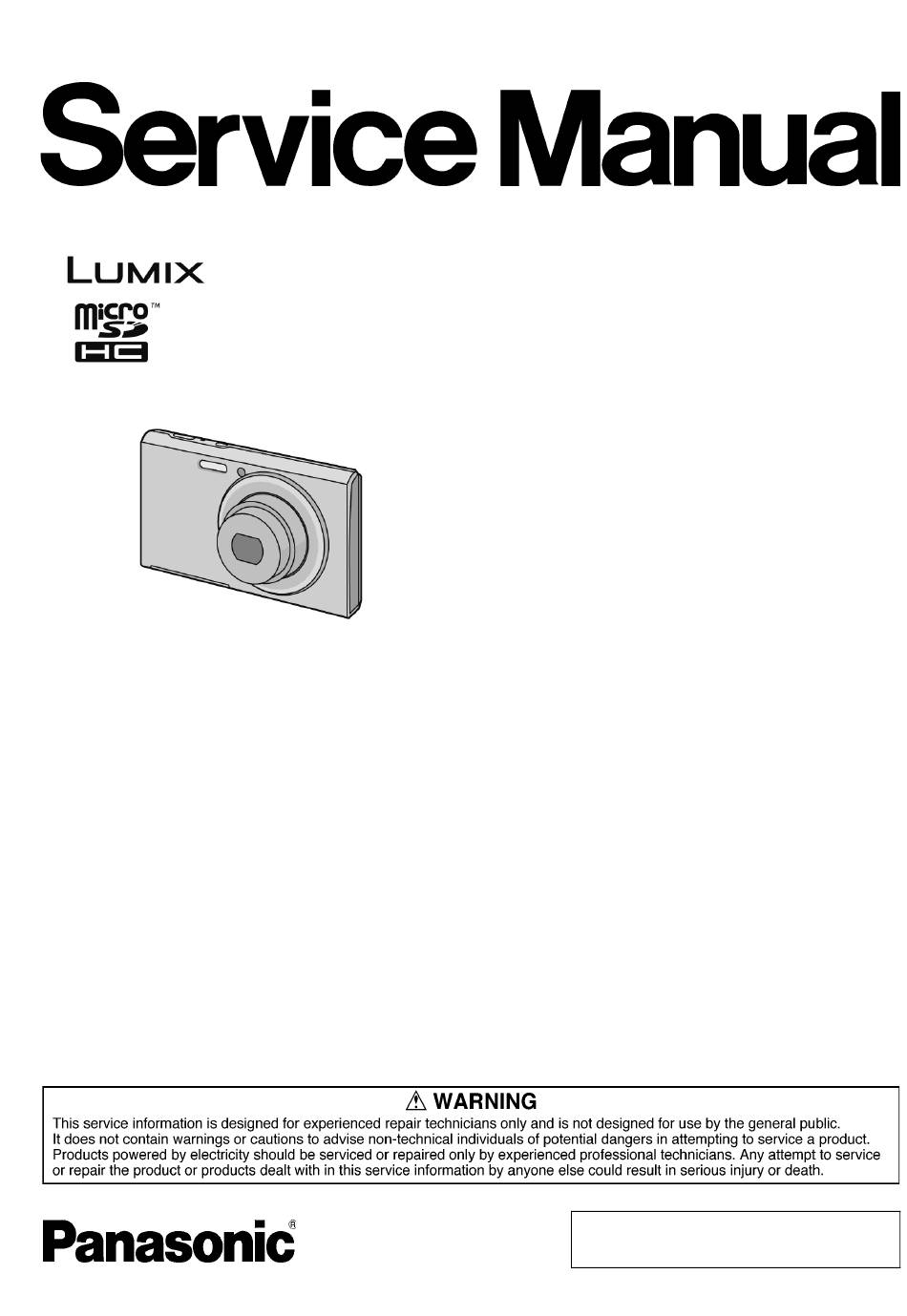

  • Page 1 (S)...Silver Type (except P/PC) (K)...Black Type (P)...Pink Type (except PC/GN) (V)...Violet Type (except P/PC/GT) [DMC-FS50] (S)...Silver Type (K)...Black Type (P)...Pink Type (only EE) (V)...Violet Type (only EE) © Panasonic Corporation 2013 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure. 1)--------3 1.4. How to Discharge the E.Capacitor on Flash Top P.C.B. ----------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure. 1) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The E.capacitor On Flash Top P.c

    1.4. How to Discharge the E.Capacitor on Flash Top P.C.B. CAUTION: • Be sure to discharge the E.Capacitor on Flash Top P.C.B. before disassembling. • Be careful of the high voltage circuit on Flash Top P.C.B. when servicing. [Discharging Procedure] 1.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 7: General Description About Lead Free Solder (Pbf)

    3.3. General Description About Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30°C (86°F) more than that of the normal solder.

  • Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.4. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of DMC-FH10 and DMC-FS50, regardless of the colours. • a) DMC-FH10 (Japan domestic model) • b) DMC-FH10P/PC • c) DMC-FS50EB/EF/EG/EP • d) DMC-FS50EE • e) DMC-FH10GT •...
  • Page 9 3.4.2. INITIAL SETTINGS: After replacing the Main P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, make sure to read the following CAUTIONS. 2.
  • Page 10 • Step 4. Display the INITIAL SETTING: While pressing [ MENU/SET ] button and “[ RIGHT ] of Cursor button” simultaneously, turn the Power off. The “INITIAL SETTINGS” menu is displayed. There are two kinds of “INITIAL SETTINGS” menu form as follows: [CASE 1.
  • Page 11 • Step 6. Set the model suffix in “INITIAL SETTINGS”: Press the “[ RIGHT ] of Cursor buttons”. The only set area is displayed, and then press the “[ RIGHT ] of Cursor buttons” after confirmation. (The unit is powered off automatically.) •...

  • Page 12: Specifications

    4 Specifications The following specification is for DMC-XS1P/DMC-FH10P. Some specifications may differ depending on model suffix.

  • Page 13: Location Of Controls And Components

    5 Location of Controls and Components The following description is for DMC-FH10P. Some descriptions may differ depending on model suffix.

  • Page 15: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to Flash-ROM when the unit has just before powered off.
  • Page 16 Error Code List The error code consists of 8 bits data and it shows the following information.
  • Page 17 Important notice about “Error Code List” 1) About “*” indication: The third digit from the left is different as follows. - In case of 0 (example: 18001000) When the third digit from the left shows “0”, this error occurred under the condition of INITIAL SETTINGS has been completed.

  • Page 18: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. 7.2. When Replacing the Main P.C.B. After replacing the Main P.C.B., be sure to achieve adjustment. The service software is available at “TSN Website”.

  • Page 19: Service Position

    7.3. Service Position Check the Flash Top P.C.B., when servicing this DSC.(Refer to the following.) CAUTION. (When servicing Flash Top P.C.B.) 1. Be sure to discharge the E.Capacitor on Flash Top P.C.B.. Refer to “How to Discharge the E.Capacitor on Flash Top P.C.B.”. The E.Capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.

  • Page 20: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely. 8.2. P.C.B. Location...

  • Page 21: Disassembly Procedure

    8.3. Disassembly Procedure 8.3.1. Removal of the Rear Case Unit Item Removal Rear Case Unit (Fig. D1) Memory Card Battery 1 Screws (A) 4 Screws (B) (Fig. D2) 3 Locking tabs Rear Case Unit Rear Op Plate Unit (Fig. D3) 1 Screw (C) 1 Locking tab 2 Convexes...
  • Page 22 8.3.2. Removal of the Rear Op Plate Unit (Fig. D2) (Fig. D3)
  • Page 23 8.3.3. Removal of the LCD Unit 8.3.4. Removal of the Lens Unit (W/CCD) (Fig. D4) (Fig. D5)
  • Page 24 8.3.5. Removal of the Front Case Unit (Fig. D6) (Fig. D7)
  • Page 25 8.3.6. Removal of the Flash Top P.C.B. (Fig. D8) (Fig. D9)
  • Page 26 8.3.7. Removal of the Main P.C.B. and [ When Installing ] CATION: Before soldering the Terminal A (Connecting part Speaker of Main P.C.B. and Frame Unit). Before soldering the Terminal A, make sure to tighten the “Screw (G)” first in order to eliminate the gap between Main P.C.B.

  • Page 27: Removal Of The Ccd Fpc Unit

    8.4. Removal of the CCD FPC Unit When remove the CCD FPC unit once (the screw (H) is loos- ened even a little), the optical tilt adjustment is required. When loosen the screw (H), necessary the optical tilt adjust- ment at the end of assembling. (Refer to item “9.3.2.”) To prevent the CCD FPC unit from catching the dust and dirt, do not remove the CCD FPC unit except for replacing.

  • Page 28: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Introduction When servicing this unit, make sure to perform the adjustments necessary based on the part(s) replaced. Before disassembling the unit, it is recommended to back up the camera data stored in Flash-ROM as a data file. IMPORTANT NOTICE (After replacing the Main P.C.B.) After replacing the Main P.C.B., it is necessary to use the “DIAS”...
  • Page 29 9.2.2. Flash-ROM Data Backup Number of necessary adjustment items decreases by copying the backup data to new Main P.C.B. when adjustment data in old Main P.C.B. is usually read by ROM_BACKUP “DSC→SD”. It is recommended to backup the Flash-ROM data as the way of return when trouble occurs before disassembling the unit depend- ing on each case.

  • Page 30: Details Of Electrical Adjustment

    9.3. Details of Electrical Adjustment 9.3.1. How to execute the Electrical Adjustment It is not necessary to connect the camera to a PC to perform adjustments. “Flag reset operation” and “Initial setting operation” are required when carrying out the alignment, follow the procedure below. 9.3.1.1.
  • Page 31 9.3.1.3. Execute Adjustment (In case of “OIS Adjustment”) 1. Perform step “9.3.1.1.” to “9.3.1.2.”, to reset the OIS flag status “F” (Set) to “0” (Reset) 2. Press “[ W ] side of the Zoom button” after Flag reset. OIS Adjustment screen is displayed on the LCD panel. (Refer to Fig.3-3) 3.
  • Page 32 9.3.2. Adjustment Specifications The following matrix table shows the relation between the replaced part and the Necessary Adjustment. When a part is replaced, make sure to perform the necessary adjustment(s) in the order indicated. The table below shows all the information necessary to perform each adjustment.

  • Page 34: After Adjustment

    9.4. After Adjustment 9.4.1. Initial Setting Since the initial setting has been released to execute the built-in adjustment software, it should be set up again before shipping the camera to the customer. Refer to the procedure described in “3.4.2. INITIAL SETTINGS” for details. [ IMPORTANT ] 1.

  • Page 35: Maintenance

    10 Maintenance 10.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the its surface. Note: The Lens Cleaning KIT ;...

  • Page 36: Block Diagram

    11 Block Diagram 11.1. Overall Block Diagram OVERALL BLOCK DIAGRAM (25mm ~ 125mm) MAIN P.C.B. CCD SIGNAL PROCESSOR (12MHz) 1/2.33" 16.1 MEGA PIX CDS, AGC, A/D, TG, CCD DRIVER MEMORY ZOOM OIS UNIT IRIS SHUTTER FOCUS CARD COLOR LCD PANEL 2.7"...

  • Page 37: Flash / Top Block Diagram

    11.2. Flash / Top Block Diagram 11.3. Sub Operation Block Diagram FLASH TOP BLOCK DIAGRAM SUB OPERATION BLOCK DIAGRAM FLASH TOP P.C.B. TL8003 CL8001 T8001 F8001 LAMP(+) FP8001 (UNREG+) 18-21 SUB OPERATION P.C.B. CL8002 C8003 (For Flash TL8001 FLASH Charge) UNIT TL8002 LAMP(-)

  • Page 38: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Interconnection Diagram INTERCONNECTION DIAGRAM FLASH TOP P.C.B. TL8003 M5001 (COMPONENT SIDE) MICROPHONE : (FOIL SIDE) TL8001 TL8002 FLASH UNIT TL9001 TL9002 TL9003 BATTERY MAIN P.C.B. (COMPONENT SIDE) FP9002 YDR- YDR+ : (FOIL SIDE) IRIS+ LENS IRIS+ IRIS- IRIS-...
