Appendix B Cabling Requirements for PXI-8460 Low-Speed CAN

Power Supply Information for the Low-Speed CAN Ports

2
1
1 Power Supply Jumper J6
2 Power Supply Jumper J5
PXI-846x and NI-CAN for Windows 98/95
The V+ and V– pins are used to supply bus power to the CAN physical
layer if external power is required for the CAN physical layer. If internal
power for the CAN physical layer is used, the V- pin serves as the reference
ground for CAN_H and CAN_L. See the next section, Power Supply
Information for the Low-Speed CAN Ports, for more information.
For port one of the PXI-8460, power is configured with jumper J5. For port
two of the PXI-8460, power is configured with jumper J6. These jumpers
are shown in Figure B-2.
6
3 Assembly Number
4 Product Name

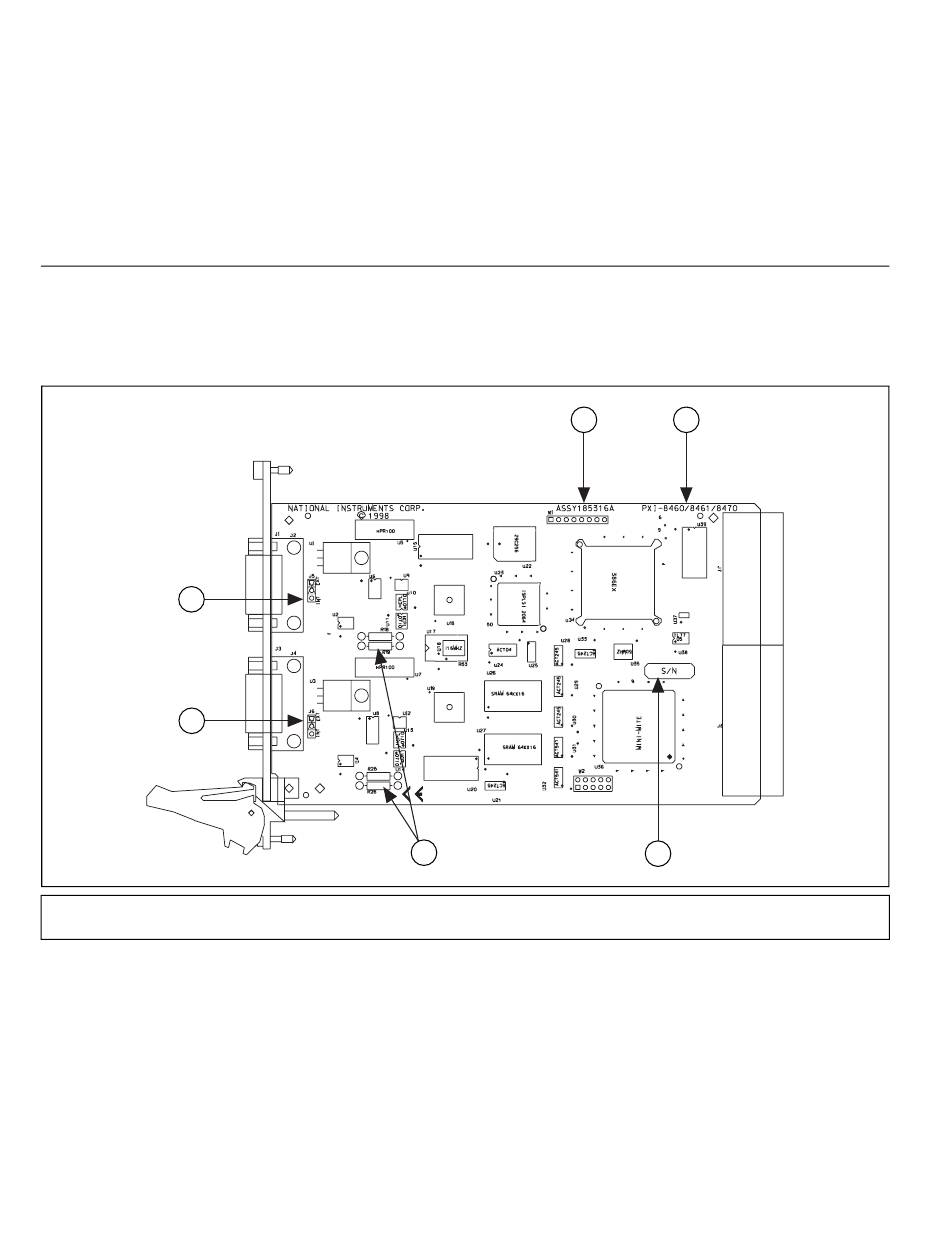

Figure B-2. PXI-8460 Parts Locator Diagram

Connecting pins 1 and 2 of a jumper configures the CAN physical layer to
be powered externally (from the bus cable power). In this configuration, the
power must be supplied on the V+ and V– pins on the port connector.
3
5 Serial Number
6 Termination Resistor Sockets
B-2
4
5
