NDI CORE MAX
Contents
◼
Packing list
◼
Device interface
◼
Applications
◼
NDI CORE MAX Configurations
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to
the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals. Incorrect electrical connections or
physical installation may cause permanent damage to the device and even threaten personal safety.
Quick Start Guide V1.0
Advertisement
Related Manuals for Kiloview NDI CORE MAX
Summary of Contents for Kiloview NDI CORE MAX
- Page 1 Applications ◼ NDI CORE MAX Configurations Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals. Incorrect electrical connections or...
- Page 2 1 Packing List (1) NDI CORE×1 (2) Power Supply×2 (3) Warranty Card×1 (4) Quick Start Guide×1 2 Device Interface...

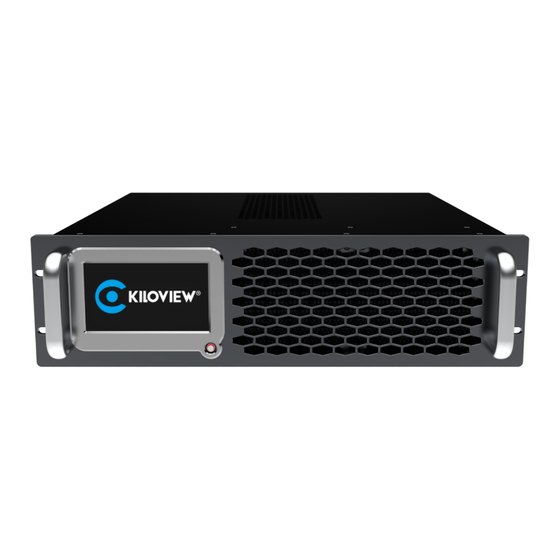

- Page 3 1. Power ON/OFF 2. 5.5 Inch Touch Screen 3. Power Port 4. HDMI/DP Port 5. 2.5G Ethernet 6. 2*40G optical port SFP+ 3 Applications Introduction NDI Core mainly solves the issue that the NDI encoder cannot be pulled by multiple back-ends at the same time. The video source is virtualized into multiple NDI channels for output by NDI Core, and more functions such as video source switching and video play list are integrated.
- Page 4 4 5.5-Inch Touch Screen Configurations 4.1 Network Settings Click “System Setting”-“Network Setting” on the screen to configure the service IP address, subnet mask and gateway. After saving, the IP address is used for WEB management and video preview, and also supports DHCP automatic acquisition. 4.2 Login to the NDI CORE Click the "QR code"...
- Page 5 Note: Due to the compatibility, it is recommended to use the Chrome or Edge to enter the webpage. ⚫ To ensure information security, please change your initial password first time you login. ⚫ The NDI CORE login port is 81 by default. 4.3 System Settings When the device is connected to the network, you can enable or disable SSH control, and change the HTTP port and restore factory settings.
- Page 6 ⚫ HTTP port settings: Support to change the port 5 Login to NDI CORE MAX Enter http://server IP: 81/ in the browser and log in to the NDI CORE webpage. The username and the password both are admin by default.
- Page 7 NDI Source：All user-added NDI video sources, not including those discovered but not added ⚫ NDI Output: All user-created NDI output sources ⚫ My Panel: The number of panels created under the user NDI CORE MAX Configurations Click “Resource Management” to add and manage the NDI input, NDI output and play list.
- Page 8 Step 1：Add NDI input sources Click "Add Input" to add the NDI sources to “NDI Input”. The source can be added with the following ways Click "public-auto discovery", all NDI sources under the same network segment of the LAN and in the “public” group can be automatically discovered. And then select the NDI sources to be added.
- Page 9 Introduction ⚫ NDI Channel Name: output NDI channel name. Please use different names for multiple NDI outputs. The combination of text, numbers and symbols are supported. When there are multiple control panels, the panels can use the same output channel, and if the output is not locked to any one panel, it can be switched to. ⚫...
- Page 10 Introduction ⚫ General: add the NDI source and NDI output channels by click "Manage" on the right side of NDI input and NDI output. ⚫ NDI source status: the resolution and frame rate of the NDI sources, and the video and audio real-time encoding bit rate of the inputted sources.
- Page 11 8 Output and Play Download Kiloview Multiview for free Visit the website https://www.kiloview.com/cn/ndi/multiview, click “Get it now” to download Multiview, and install the software step by step. Kiloview Multiview is a free NDI video discovery, management and multi-screen monitoring software.
- Page 12 Website for Kiloview official technical support https://www.kiloview.com/cn/support/ Changsha KILOVIEW Electronics Co., Ltd https://www.kiloview.com/ Address: B4-106/109 B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha,China Email：support@kiloview.com Tel：18573192787...
