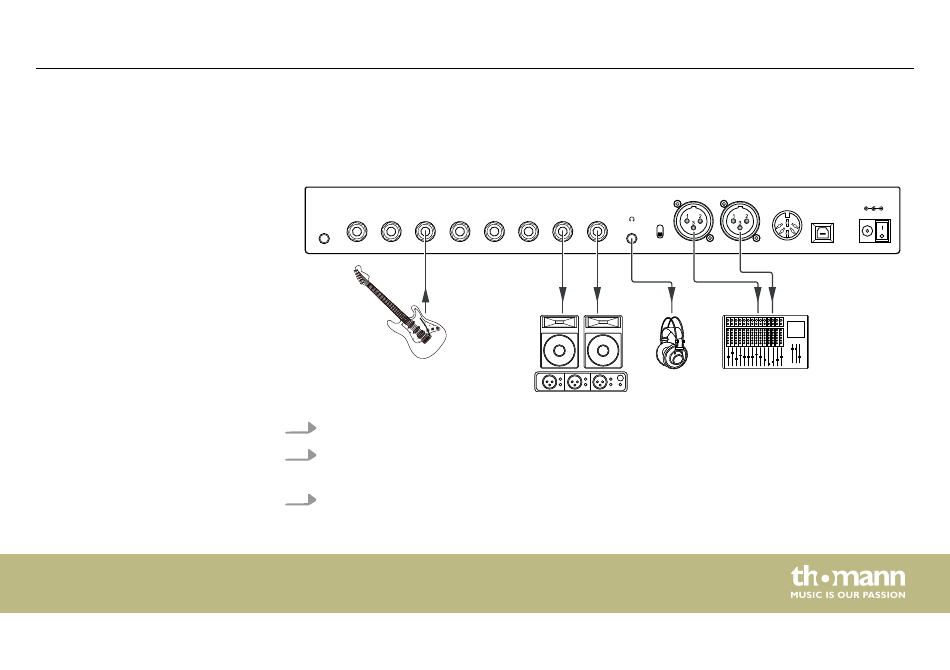

Connection to FRFR device
This setup supports studio monitors, audio interfaces, stage monitors, PA systems, head‐
phones or any other FRFR (full range flat response) devices.
AMP CTRL PEDAL 2 INPUT SEND
AUX IN
Guitar
1. Connect the guitar to the input socket [INPUT] of the unit.
2. Connect an audio interface or a studio monitor to the output sockets (jack) [OUTPUT L] or
[OUTPUT R] of the unit.
3.
Connect a stage monitor, mixer or other FRFR device to the output sockets (XLR)
[OUTPUT L] bzw. [OUTPUT R ] of the unit.
DNAfx GiT Pro
RETURN L RETURN R OUTPUT L OUTPUT R
LIFT
GND
Headphones
Audio interface / Studio monitor
Installation
OUTPUT L OUTPUT R
MIDI IN/
MIDI OUT
USB
Mixer
DC IN
9V 1A
