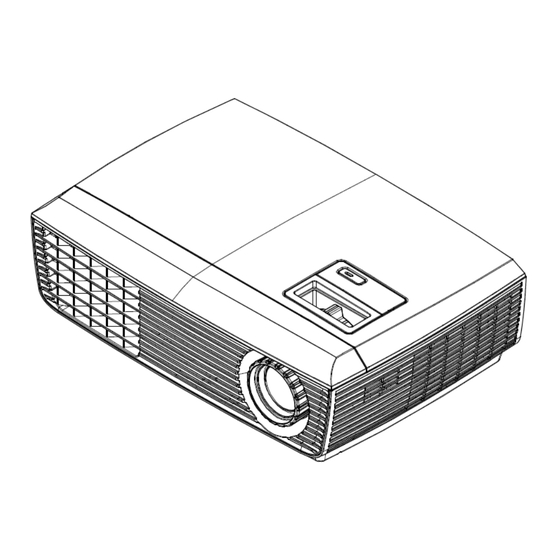

Multimedia Projector
Quick Reference Guide
MODEL
Use this book as a reference guide when setting up the projector. For
detailed information about installation, setup, and operation of the
projector, refer to the owner's manual on the CD-ROM.
ReaD the SaFety InStRUCtIOnS In the OwneR'S ManUal (CD-ROM)
beFORe USIng the pROjeCtOR.
The manual is provided in the Adobe Portable Document Format (PDF). To read the PDF file,
you need the Adobe Reader (Acrobat Reader) Version 6.0 or later software in your computer.
The Adobe Reader can be obtained from the Adobe website.
Printed in China
1AA6P1P5804-- (KW5A)
PDG-DSU30
SANYO Electric Co., Ltd.
Advertisement
Table of Contents
Related Manuals for Sanyo PDG-DSU30
Summary of Contents for Sanyo PDG-DSU30
-
Page 1: Quick Reference Guide

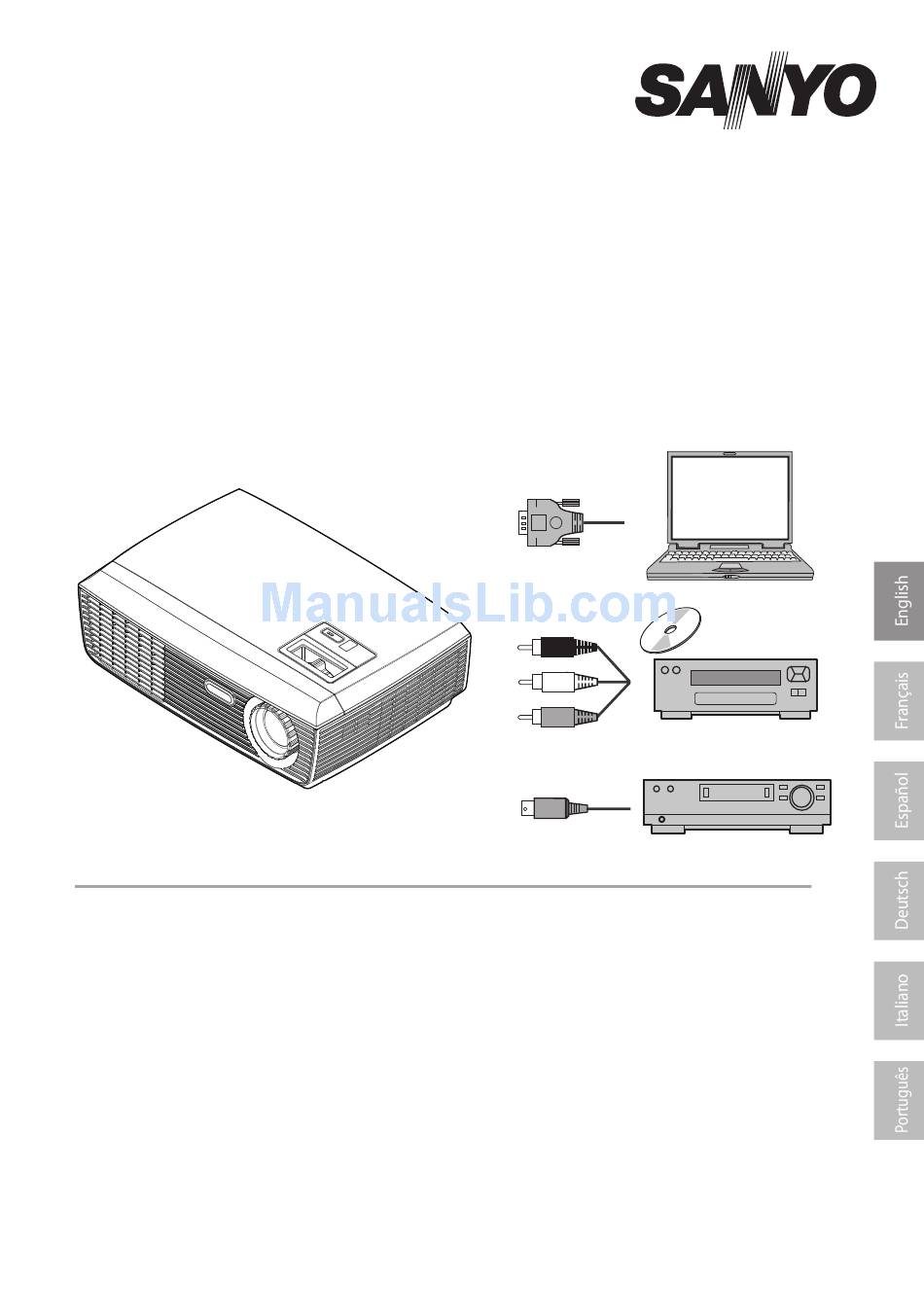

Quick Reference Guide PDG-DSU30 MODEL Use this book as a reference guide when setting up the projector. For detailed information about installation, setup, and operation of the projector, refer to the owner’s manual on the CD-ROM. ReaD the SaFety InStRUCtIOnS In the OwneR’S ManUal (CD-ROM) beFORe USIng the pROjeCtOR. -
Page 2: Safety Precaution
The diagrams shown here indicates the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained. -
Page 3: Safety Instructions
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. - Page 4 – Do not put the projector in a case before it is cooled enough. – Do not transport the projector by courier or any other transport service in an unsuitable transport case.
-
Page 5: Package Overview
Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi- ately if anything is missing. Due to the differ- Projector with lens cap ence in applications for each country, some regions may have dif- ferent accessories. -
Page 6: Product Overview
Product Overview 1. ON/STAND-BY button and LED indicator 2. Remote Sensor 3. Zoom Ring 4. Ventilation (inlet) 5. Speaker 6. Focus Ring 7. Ventilation (outlet) 8. Lens 9. Lens Cap Air Flow... -
Page 7: Connection Ports
Connection Ports 1. COMPUTER IN/COM- PONENT IN Connector 2. S-VIDEO IN Connector 3. VIDEO IN Connector 4. SERVICE Port 5. MONITOR OUT Con- nector 6. AUDIO IN Jack 7. AC IN 8. Kensington Lock... -
Page 8: Remote Control
Make sure not to lose the remote control. Remote Control Infrared trans- Sends signals to the projector. mitter IMAGE Select the Image mode from Presenta- tion, Bright, Movie, sRGB, Blackboard, Classroom, User1 and User2. ON/STAND-BY Refer to the “Power On/Off the Projec- tor”... - Page 9 Press “VIDEO” to choose Video in con- nector. KEYSTONE + Adjust the image to compensate for distortion caused by tilting the projec- tor. D.ZOOM Zoom out or Zoom in the projector display. Four Directional Se- make adjustments to your selection. lect Keys AUTO ADJ.
-
Page 10: Remote Control Battery Installation
Risk of an explosion if battery is replaced by an incorrect type. ■ Dispose of used battery according to the instructions. Point the remote control toward the projector (In- frared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 23.0’... -
Page 11: Connecting The Projector
3...RS232 cable 4... Audio in cable jack to jack 5... Monitor out cable T o ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. VGA, DVI... -
Page 12: Connect To Video
4... Composite video cable 5... Audio in cable jack to jack 6... S-Video cable T o ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. HDTV receiver... -
Page 13: Adjusting The Projected Image
Adjusting the Projected Image Adjusting the Height of Projector Image The projector is equipped with adjustable feet to raise and lower the image to fill the screen. To raise/lower the image: 1. Use to fine-tune the display angle You can raise the projector front up to 3.7... -
Page 14: Adjusting The Projector Zoom And Focus
You may turn the zoom ring to zoom in or out. To focus the im- age, rotate the focus ring until the image is clear. The projector will focus at distances from 3.94 to 39.36 feet (1.2 to 12.0 meters) with mechanical travel. -
Page 15: Powering On/Off The Projector
4. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically. I f you connect multiple sources at the same time, use the “INPUT” on the remote control or use “COMPUTER”, “S- VIDEO”, “VIDEO”... -
Page 16: Powering Off The Projector
If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “ON/STAND-BY”... -
Page 17: On Screen Display
On Screen Display The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of set- tings. The projector will automatically detect the source. How to operate To open the OSD, press “MENU” on the Remote Control. -
Page 18: Replacing The Lamp
Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message When you see this message, change the lamp as soon as pos- Warning: To avoid burns, allow the sible. Make sure the projector has been cooled down for at projector to cool for least 45 minutes before changing the lamp. -
Page 19: Order Replacement Lamp
■ If the projector indicates that the lamp should be replaced, i.e., if the lamp life warning message appears, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. -
Page 20: Specifications
Specifications Projection System Number of Pixels Lamp Projection Lens Projection Screen Size (Diag.) Projection Distance Video Compatibility H. Frequency V. Frequency Power Supply Power Consumption Input Current I/O Connectors Built-in Speaker Weight Dimensions (W x D x H) Environmental Optional Parts Single Chip DLP Technology by Texas Instruments ®...
