Umbrosa SPECTRA STRAIGHT Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Umbrosa Manuals
  4. Patio Furniture
  5. SPECTRA STRAIGHT
  6. Assembly instructions manual

Umbrosa SPECTRA STRAIGHT Assembly Instructions Manual

Hide thumbs Also See for SPECTRA STRAIGHT:

Advertisement

Quick Links

Download this manual

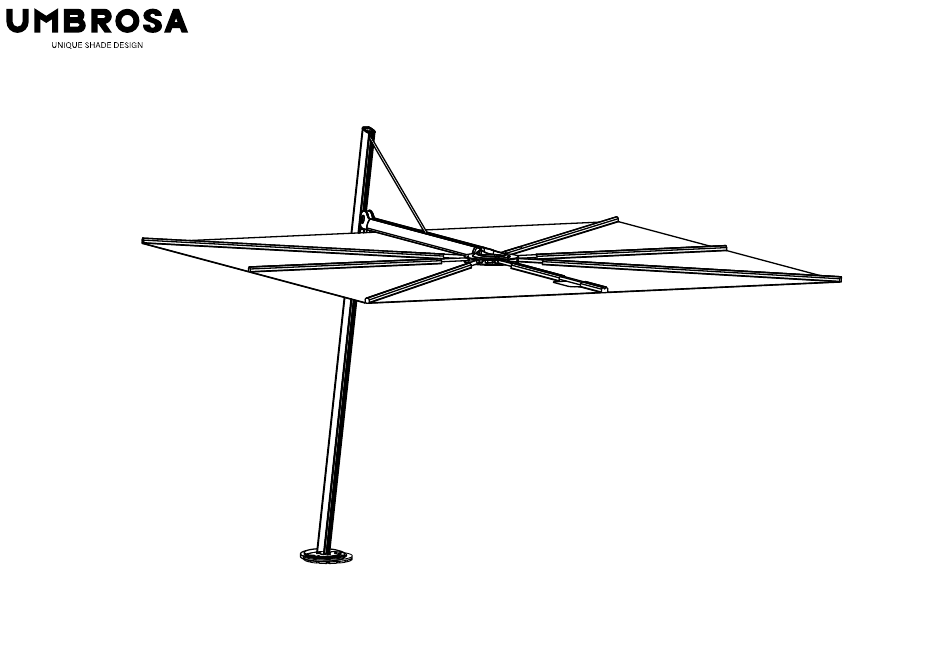

SPECTRA
STRAIGHT / FORWARD / DIAMOND / OPPOSITE / DUO / MULTI

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPECTRA STRAIGHT and is the answer not in the manual?

Questions and answers

Related Manuals for Umbrosa SPECTRA STRAIGHT

Summary of Contents for Umbrosa SPECTRA STRAIGHT

  • Page 1 SPECTRA STRAIGHT / FORWARD / DIAMOND / OPPOSITE / DUO / MULTI...
  • Page 2 Prior to assembly it is important to decide on the location of the umbrella and to respect the following instructions: - Choose a location that is level and sturdy. - Avoid any sloping of soft ground. - Consider a location that will maximize the umbrella’s 360° rotating function (if available) - Two-person team is recommended for assembly UMBROSA /...

  • Page 3: Before You Start

    BEFORE YOU START UMBROSA DEALER UMBROSA /...
  • Page 4 All mounting kits and supports for inground tting and installation on hard surfaces should only be installed by a licensed contractor duly quali ed to perform the installation. Umbrosa assumes no liabilities and expressly disclaims any responsibilities for injuries or damages arising from or related to the failure of buyer to have any kit or tting installed by a licensed professional contractor.
  • Page 5 UMSTRAP000000090 SPCOV******** UMFIXSROT00000RO UMFIXS215G8000RO / SPPRO0270CGREY00 MAPLAI0013 UMFIXS215G9000RO SPCOV******** MAPLAI0010 SPPROM270CGREY00 UMSTRAP000000090 MAKEY00040 MAKEY00050 SPFIXS215G90X4RO CANOPY ASSEMBLY MAKEY00040 MAKEY00050 SPFIXS215G90X2RO MABOLI0471 MAKEY00050 MAKEY00060 UMSTRAP000000090 MAPRO00050 MAKEY00040 MAKEY00050 MAKEY00060 SPFIXS215G90X2OP USER INSTRUCTIONS TIPS AND MAINTENANCE WARRANTY AND SPARE PARTS UMBROSA /...
  • Page 6 INSTALLATION DIMENSIONS 17 cm / 9,69” SPECTRA STRAIGHT SPECTRA OPPOSITE SPECTRA DUO SPECTRA MULTI 12,2 cm / 4,8” Ø10 mm / 0.4” SPECTRA FORWARD Ø21,5 cm 8,46” Ø26 cm 10,24” SPECTRA DIAMOND C’ SPECTRA 250 155 cm / 5.1’ 190 cm / 6.2’...
  • Page 7 TILE BASE INSTALLATION OPTIONS UMFIXTILMOBG0000 UMFIXTOPMOBA0000 UMFIXTILES120000 UMBASM80FL017EXT MAFIXTILMOBG0000 MABOLI0490 MACOMU020B UMBASEWHEELH00 UMBROSA /...
  • Page 8 TILE BASE INSTALLATION OR OPTION : UMBASM80FL017EXT 1’ UMBROSA.COM UMBROSA /...
  • Page 9 TILE BASE INSTALLATION OR OPTION : UMBASEWHEELH00 UMFIXTILES120000 1’’ TILES 40x40 CM (1’ 3.7” x 1’ 3.7”) 116 MM NOT INCLUDED 4,6” UMBROSA /...
  • Page 10 TILE BASE INSTALLATION OPTIONAL : UMFIXTOPMOBA0000 MULTI DUO OR OPPOSITE FRAGILE SURFACE COVER DURING 116 MM ASSEMBLY 4,6” UMBROSA /...
  • Page 11 Les dimensions indiquées sont seulement à titre informatif. La responsabilité nale incombe à l’installateur. Die Maße sind nur informativ. Der Installateur trägt die Verantwortung für die Ausführung. Los tamaños son sólamente informativos. El instalador es responsable del acabado nal. Dimensioni sono indicative. La responsabilità nale spetta sempre all’installatore. UMBROSA /...
  • Page 12 CONCRETE ANCHOR INSTALLATION SHADE SHADE UMBROSA /...
  • Page 13 CONCRETE ANCHOR INSTALLATION GRASS GRAVEL TILES 10 cm 4 cm 3.9” 1.6” UMBROSA /...
  • Page 14 CONCRETE ANCHOR INSTALLATION UMBROSA /...

  • Page 15: Baseplate Installation

    BASEPLATE INSTALLATION INFIXBSL0B000000 Not included - Niet inbegrepen - Pas inclus Nicht inbegri en - No incluido - Non incluso Ø8 mm DIN 7991 M10 DIN 7991 M10 UMBROSA /...
  • Page 16 SPECTRA FORWARD/STRAIGHT/DIAMOND INSTALLATION MAPRO00050 UMFIXSROT00000RO SPCOV******** UMFIXS215G8000RO / SPPRO0270CGREY00 UMFIXS215G9000RO MABOLI0471 MAKEY00050 MAKEY00060 UMSTRAP000000090 UMBROSA /...
  • Page 17 SPECTRA FORWARD/STRAIGHT/DIAMOND INSTALLATION UMBROSA.COM CANOPY ASSEMBLY UMBROSA /...
  • Page 18 SPECTRA OPPOSITE INSTALLATION MAPRO00050 UMBROSSPRAY000PL MAPLAI0013 SPCOV******** MAPLAI0010 SPPROM270CGREY00 UMSTRAP000000090 MAPRO00050 MAKEY00040 MAKEY00050 MAKEY00060 SPFIXS215G90X2OP UMBROSA /...
  • Page 19 SPECTRA OPPOSITE INSTALLATION CANOPY ASSEMBLY UMBROSA /...
  • Page 20 SPECTRA OPPOSITE INSTALLATION UMBROSA /...
  • Page 21 SPECTRA DUO INSTALLATION MAPRO00050 MAPLAI0011 SPCOV******** MAPLAI0010 SPPROD270CGREY00 UMSTRAP000000090 MAKEY00040 MAKEY00050 SPFIXS215G90X2RO UMBROSA /...
  • Page 22 SPECTRA DUO INSTALLATION CANOPY ASSEMBLY UMBROSA /...
  • Page 23 SPECTRA DUO INSTALLATION UMBROSA /...
  • Page 24 SPECTRA MULTI INSTALLATION MAPRO00050 MAPLAI0012 SPCOV******** MAPLAI0010 SPPROM270CGREY00 UMSTRAP000000090 MAKEY00040 MAKEY00050 SPFIXS215G90X4RO UMBROSA /...
  • Page 25 SPECTRA MULTI INSTALLATION CANOPY ASSEMBLY UMBROSA /...
  • Page 26 SPECTRA MULTI INSTALLATION UMBROSA /...
  • Page 27 SPECTRA HEIGHT ADJUSTMENT KIT EXTENSION FILLER PIECE FOR SUPPORT EXTENSION FOR EXTENSION FOR SPECTRA STRAIGHT SPECTRA FORWARD UMBROSA /...
  • Page 28 SPECTRA HEIGHT ADJUSTMENT KIT UMBROSA /...
  • Page 29 Doing so may cause damage to your umbrella. Canopy can only be closed safely when it is not tilted. CAUTION: Never force the ribs. UMBROSA / If you experience any resistance, make sure all ribs are freed manually to facilitate opening.
  • Page 30 SPECTRA USER INSTRUCTIONS 360° UMBROSA / CAUTION: Do not use rotating function during winds. Doing so may cause damage to your umbrella.
  • Page 31 SPECTRA USER INSTRUCTIONS UMBROSA /...
  • Page 32 TIPS > 30 KM/H > 5 BEAUFORT min 30° UMBROSA /...

  • Page 33: Maintenance

    Maintenance instructions on website Onderhoudsinstructies op webpagina 40° Nettoyage et guide d’entretien sur le site web Pflegehinweise auf der Webseite Instrucciones de mantenimiento en el sitio web Istruzioni di mantenimento sul sito UMBROSA UMBROSA WATER REPELLENT SPRAY MAINTENANCE KIT UMBROSA /...
  • Page 34 “stainless steel polishers”. Edelstahl bleibt nur frei von Korrosion, wenn dieser gut und Präventiv behandelt wird. Umbrosa emp ehlt regelmäßig die Ober äche zu reinigen und zu schützen.

  • Page 35: Warranty

    Conditions de garantie sur le site Web Garantiebedingungen auf der Webseite Garantiebedingungen auf der Webseite Condiciones de garantía en el sitio web Condiciones de garantía en el sitio web Condizioni di garanzia sul sito Condizioni di garanzia sulla pagina web UMBROSA /...

  • Page 36: Spare Parts

    SPARE PARTS SPECTRA FORWARD/STRAIGHT/DIAMOND/OPPOSITE/DUO/MULTI MADECI0102 3M SQUARE MACOMS011W MADECI0133 2.5M SQUARE MACOMS010W 2.5M DIAMOND MACOMS012W MABOLI0540 HSSPA22100000000 MABOLI0010 MANUTI0090 MABOLI0160 MACASI0050 FORWARD HSPOLA022F STRAIGTH HSPOLA022S HUFIXLOCK01 UMBROSA /...
  • Page 37 SPARE PARTS SPECTRA FORWARD/STRAIGHT/DIAMOND/OPPOSITE/DUO/MULTI MACOMP012 SPECTRA DIAMOND/DUO/MULTI SPECTRA FORWARD/STRAIGHT HSSPA002 3M SQUARE FORWARD HSPRFA9693_05 2.5M SQUARE FORWARD HSPRFA9693_04 2.5M SQUARE STRAIGHT HSPRFA9693_04 3M SQUARE STRAIGHT HSPRFA9693_05 HSSPA002 2.5M DIAMOND HSPRFA9693_08 UMBROSA /...
  • Page 38 2.5M HSHALO250SQ MABOLI0530 MAWASI0060 HSHALO300SQ HSPLAS0082 2.5M SQUARE HSCOMS002G 2.5M SQUARE HSCOMS001G 3M SQUARE HSCOMS015G 3M SQUARE HSCOMS014G (2x) (2x) MACOMS007B MAACCI0101 2.5M SQUARE HSCOMS003G 3M SQUARE HSCOMS012G (2x) MADECAS110 2.5M SQUARE HSCOMS004G 3M SQUARE HSCOMS015G (2x) HSSPA003 UMBROSA /...
  • Page 39 SPARE PARTS SPECTRA DIAMOND/DUO/MULTI MABOLI0515 (8x) 2.5M HSHALO250DI MABOLI0530 HSPLAS0082 MAPRO00050 HSCOMS044G HSCOMS016G (2x) (2x) OM270CGREY00 UMSTRAP000000090 MAACCI0101 HSCOMS017G MADECAS110 (2x) HSCOMS041G (2x) HSSPA003 UMBROSA /...
  • Page 40 This technical sheet remains subject to possible changes. Of course we do our best to eliminate all mistakes, but Umbrosa is not responsible for the errors in the documentation of products.

This manual is also suitable for:

Spectra forwardSpectra diamondSpectra oppositeSpectra duoSpectra multi
