This development board is an entry-level product of ALTERA FPGA, mainly for FPGA
beginners, model EP4CE6F17C8, is a 256-pin FBGA package. The development of the
entire development board is practical, there are two 40-pin 2.54 standard expansion port, a
total of 68 IO, in addition to retain the 5V power supply, 3.3V power supply, there are
multiple GND, for the likes of DIY players, is a very Good choice. In addition, many
supporting modules can also be directly connected to the expansion port of this FPGA
development board, such as ADDA module, 4.3' TFT screen, audio modules, cameras, etc.,
to provide players with more choices for learning. Here we will make a detailed introduction
to this development board.

1. Overview

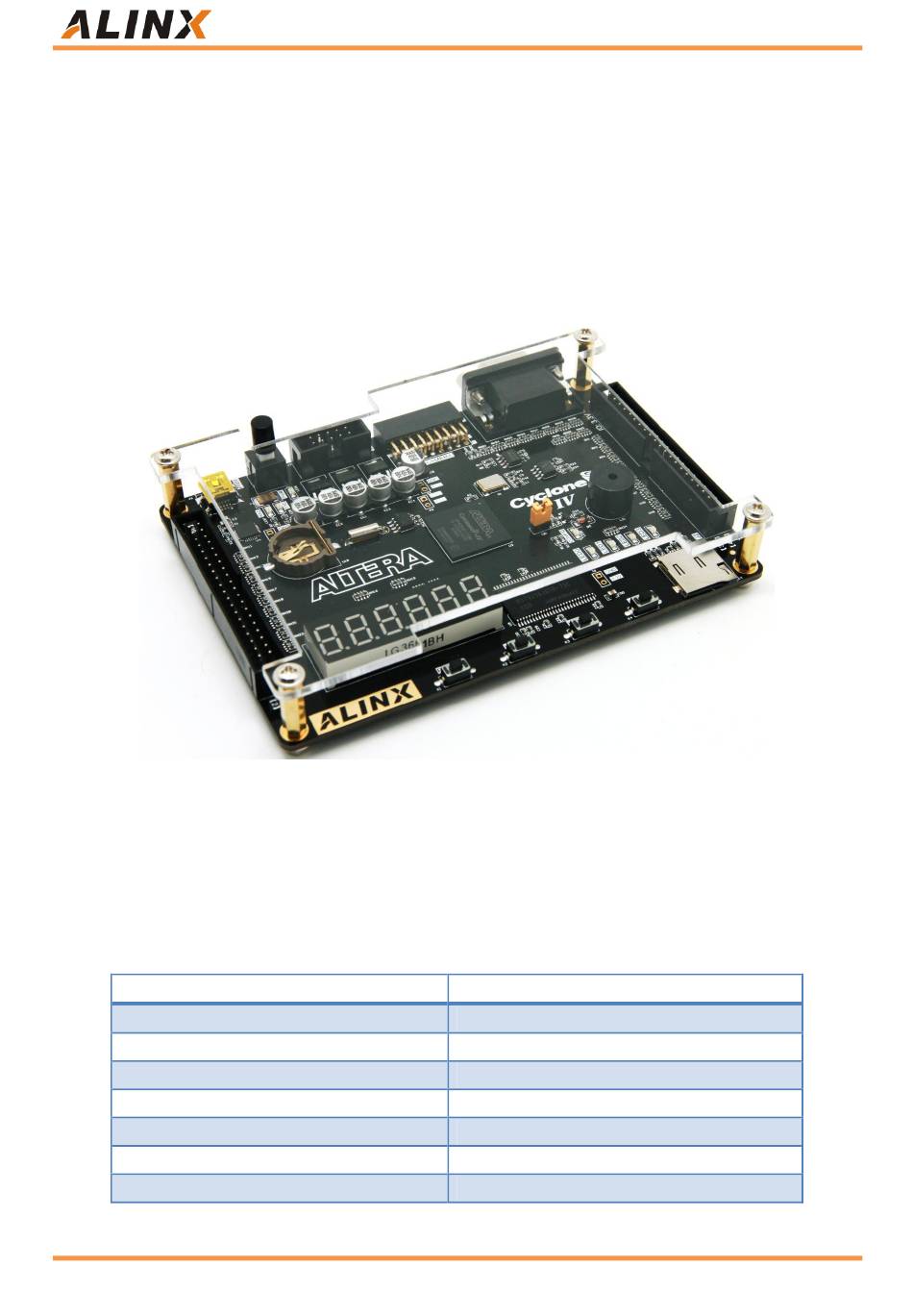

Here is a brief introduction to this FPGA development platform. This development board
uses ALTERA's Cyclone IV series FPGA, model EP4CE6F17C8, 256-pin FBGA package.
The resources of this FPGA are shown in Table 1-1:
Logic elements(LEs)
Embedded memory(Kbits)
Embedded 18x18multipliers
Global Clock Networks
5 / 23
Http://www.alinx.com.cn
parameter
PLLs
Kernel voltage
Work temperature
Table 1-1
AX301 User Manual
value
6272
270
15
2
10
1.2V
0-85℃
