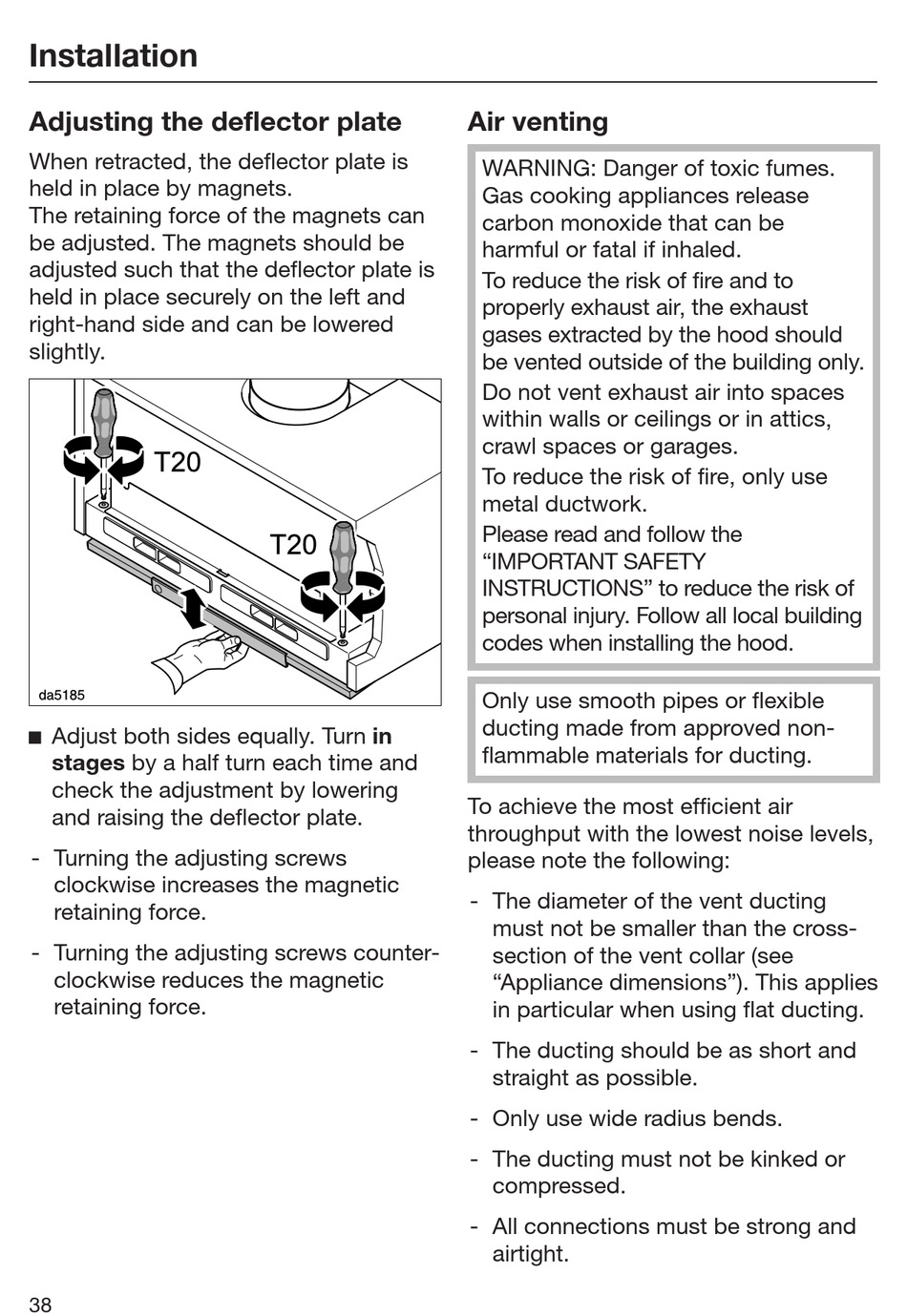

Installation
Adjusting the deflector plate
When retracted, the deflector plate is
held in place by magnets.
The retaining force of the magnets can
be adjusted. The magnets should be
adjusted such that the deflector plate is
held in place securely on the left and
right-hand side and can be lowered
slightly.
Adjust both sides equally. Turn in
stages by a half turn each time and
check the adjustment by lowering
and raising the deflector plate.
- Turning the adjusting screws
clockwise increases the magnetic
retaining force.
- Turning the adjusting screws counter-
clockwise reduces the magnetic
retaining force.
38
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the cross-
section of the vent collar (see
"Appliance dimensions"). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
