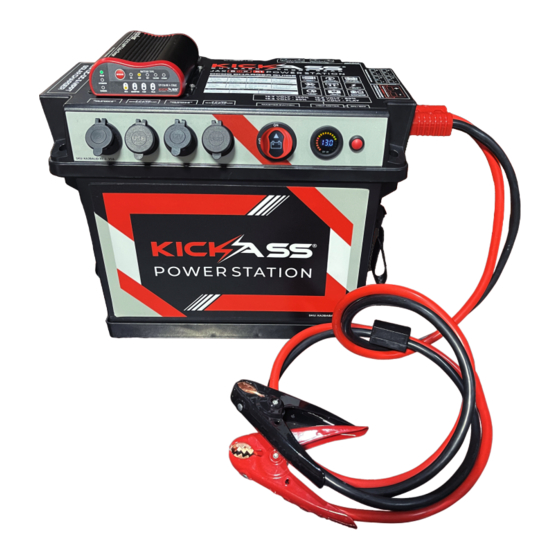

- Page 1 A G M P OWE R STAT I O N USER MANUAL WITH DCDC CHARER WITHOUT DCDC CHARER PATENT PENDING VER 0.4...
-
Page 2: Table Of Contents
TABLE OF CONTENT INTRODUCTION INTRODUCTION ---------------------------------------------------------------------------------------------- IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS ---------------------------------------------------------------------------------------------- OVERVIEW OVERVIEW ---------------------------------------------------------------------------------------------- GETTING STARTED GETTING STARTED ---------------------------------------------------------------------------------------------- BATTERY TO USE BATTERY TO USE ---------------------------------------------------------------------------------------------- OPTIONAL ACCESSORIES OPTIONAL ACCESSORIES ---------------------------------------------------------------------------------------------- - MOUNTING TRAY - MOUNTING TRAY ---------------------------------------------------------------------------------------------- - JUMPER CABLES - JUMPER CABLES ----------------------------------------------------------------------------------------------... -
Page 3: Introduction
Designed by the KickAss Team The KickAss Powerstation has been designed in-house by the KickAss Team and has taken over 3 years of hard work and P OWE R STAT I O N dedication to complete. We listened to our customers over SKU: KAJBABASE | V1.4... -
Page 4: Overview
OVERVIEW OPTIONAL 2.4A USB & 2.4A USB & MAIN VOLTAGE METER DCDC CHARGER QC3.0 USB QC3.0 USB ON/OFF ON/OFF SWITCH SWITCH CIGARETTE CIGARETTE SOCKET SOCKET DIGITAL Material VOLTMETER BATTERY BOX Temperature Range -10ºC to +60ºC CARRY CARRY P OWE R STAT I O N HANDLE HANDLE BATTERY BOX... -
Page 5: Getting Started
GETTING STARTED Step 3: Secure the battery in place by NOTE: If your battery box base was tightening the velcro strap over the shipped with a battery installed, skip battery. to Step 3. Step 1: Peel off the plastic film to expose the non-slip surface of the silicone pads. -
Page 6: Battery To Use
Step 5: Tuck cables in under battery box Step 6: Install the 4 provided screws to lid, lowering lid carefully onto box - fasten the lid to the base, being sure not ensuring the lid is correctly oriented. to over tighten with the supplied allen key. P OWE R STAT I O N P OWE R STAT I O N SKU: KAJBABASE | V1.4... -
Page 7: Optional Accessories
OPTIONAL ACCESSORIES MOUNTING TRAY (OPTIONAL) Step 1: Confirm install location of tray, drilling any required holes. BOTTOM Install the strap under the tray, sliding the strap into the slots either side. Ensure strap is oriented correctly so that the hooks face toward the Power Station when installed. -
Page 8: Jumper Cables
flat starter battery. When it comes to Jumper Cables there is no substitute for quality and these KickAss Jumper Cables have been designed to be tough, durable and most of all, work flawlessly when you need them. -
Page 9: Connections
Protected. 3. Do not jump start a vehicle for longer than 7 seconds. 4. KickAss Deep Cycle batteries should be used for jump starting in emergency situations ONLY, as it will affect battery health. 5. Check battery specifications and compatibility with high current draw before using jump start connector. - Page 10 6 X (50A) ANDERSON STYLE PLUGS 2 x (50A) Anderson Style Plugs 4 x (50A) Anderson Style Plugs on the back on the side = Input / Output Capable. = All Anderson Plugs combined must not exceed 50A total current. WARNING: 1.
-
Page 11: Typical Diagrams
TYPICAL DIAGRAMS Charging with External charges plug-in to any of these sockets REGULATED SOLAR PANEL plug-in to any of these sockets AC CHARGER POWER LEAD ACID GEL LITHIUM C O M PAT I B I L I T Y CHARGING/ FAULT Jump Starting with Powerstation FLAT... -
Page 12: Connecting To External Chargers
CONNECTING TO EXTERNAL CHARGERS The KickAss Power Station may be charged in a number of ways: Ÿ Connecting an AC charger to any of the in/out Anderson style connectors. Ÿ Connecting a solar panel with regulator/controller to any of the in/out Anderson style connectors. -
Page 13: Dcdc Charger Model
The KickAss Power Station includes a built-in DC-DC Charger suitable for charging from a vehicle alternator. The easiest way to connect the Power Station to your vehicle is by using the KickAss Plug & Play Wiring Kit (sold separately). The triple Anderson style connector fitted to the Power Station interfaces with the KickAss Plug &... -
Page 14: Non Dcdc Charger Model
The following information only applies to the KickAss Battery Boxes fitted without a DCDC Charger The KickAss Battery Box allows you to create an all in one dual battery system. For vehicles without smart or temperature compensating alternators. The easiest way to connect the control hub to your vehicle with a voltage sensitive relay is by using the KICKASS Plug &... -
Page 15: Diy Dcdc Charger Wiring
Anderson style connector to the output of the DCDC charger and connect to any of the In/Out Anderson Style connectors. If required, blank two pin anderson style connectors can be purchased from the KickAss Store. P OWE R STAT I O N SKU: KAJBABASE | V1.4... -
Page 16: Mounting On Box
Method Two (Mounting on box) 1. Flip the battery box lid upside down, remove the 6 screws and carefully remove the cover revealing the cabling. 2. There is a pre-drilled hole for cabling on the face of the battery box, this is covered by the sticker. Locate this hole on the top of the lid that is marked by a large dashed circle. - Page 17 5. Connect the outlet wires of your DCDC Charger to the red and black terminal posts. RED TERMINAL BLACK TERMINAL 6. Remove the 4 screws holding the piece of plastic in and push the foam block out. 7. Using appropriate screws, attach the two and three pin Anderson style plugs to the piece of plastic.
-
Page 18: Connecting To Alternator Input
INPUT CONNECTING TO UNREGULATED SOLAR KickAss Battery Box includes a built-in DC-DC Charger with a MPPT regulator suitable for charging from unregulated solar panels. To connect your solar panel to the regulator simply plug it in via the anderson style plug on your battery box. -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS BATTERY BOX INFORMATION Material Temperature Range -10ºC - +60ºC BATTERY INFORMATION Supported Chemistries AGM, Calcium, Wet, Gel or Lithium (Deep Cycle Only) MAX Battery Dimensions 340mm L x 185mm W x 235mm H (with Silicone Mat) MAX Battery Weight 35kg PORTS (INPUT/OUTPUT) Input / Output Capable... -
Page 20: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q. If storing my KickAss Power Station for long periods, what should I do to look after my battery’s health? An AGM battery is best stored fully charged. The KickAss Power Station is fitted with a Master Switch that allows all outlets to be disconnected from the battery for storage - meaning nothing can drain the battery over time. - Page 21 THANK YOU FOR CHOOSING JAXBOX X1 POWERSTATION YOUR COMPLETE 12-VOLT POWER SOLUTION...
