MODEL NO. 720-1008

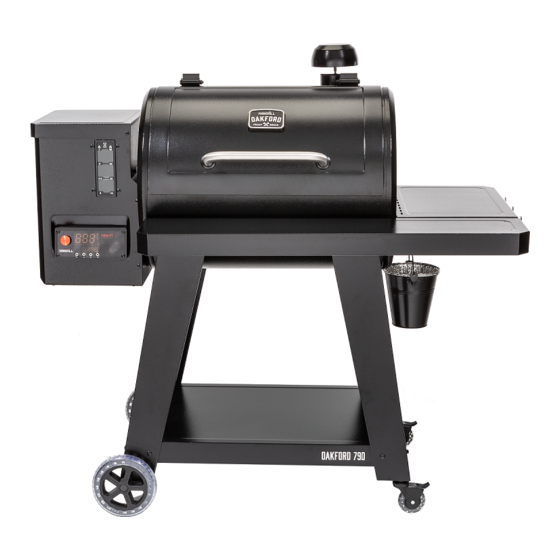

OAKFORD 790
PELLET GRILL
WARNING
FOR OUTDOOR USE ONLY
ASSEMBLY & OPERATING INSTRUCTIONS
This instructions manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read these instructions and warnings carefully so as to
familiarize yourself with the appliance before using the grill.
Keep this manual for future reference.
.
Questions, problems, missing parts?
Before returning to your retailer, call our
Customer Service Department at
Tel: +27 87 537 2676, 8 a.m. - 5 p.m., CAT,
Monday-Friday. Or send us an E-mail at
servicesa@nexgrill.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OAKFORD 790 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexgrill OAKFORD 790

Summary of Contents for Nexgrill OAKFORD 790

  • Page 1 MODEL NO. 720-1008 OAKFORD 790 PELLET GRILL ASSEMBLY & OPERATING INSTRUCTIONS This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read these instructions and warnings carefully so as to familiarize yourself with the appliance before using the grill.
  • Page 2 FIT INTO THE BOTTOM DRAWER. BUT THAT’S NOT WHERE ITBELONGS We get it. You’ve just unboxed your Nexgrill and you can’t wait to fire it up. Those steaks, fish, vegetables and everything else you could imagine certainly aren’t going to grill themselves. At Nexgrill, we believe anything worth doing is worth doing well.

  • Page 4: Table Of Contents

    TABLE OF CONENTS Safety Warnings ....Pellet Grill System ....Parts List .

  • Page 5: Safety Warnings

    SAFETY WARNINGS MAJOR CAUSES OF APPLIANCE FIRES ARE A RESULT OF POOR MAINTENANCE AND A FAILURE TO MAINTAIN REQUIRED CLEARANCE TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE USED ONLY IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product.
  • Page 6 SAFETY WARNINGS 4. It is recommended to use heat-resistant barbecue mitts or gloves when operating the grill. Do not use accessories not specified for use with this appliance. Do not put a barbecue cover or anything flammable in the storage space area under the barbecue.
  • Page 7 SAFETY WARNINGS At time of printing, there is no industry standard for barbecue wood pellets, although most pellet mills use the same standards to make wood pellets for domestic use. Further information can be found at www.pelletheat.org or the Pellet Fuel Institute. Contact your local dealer on the quality of pellets in your area and for information on brand quality.
  • Page 8 SAFETY WARNINGS BEFORE ASSEMBLING AND OPERATING YOUR GRILL, READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY. Before proceeding, make certain that you understand the IMPORTANT Information sections of this manual. Failure to adhere to the safety instructions in this manual could result in a hazardous fire.
  • Page 9 SAFETY WARNINGS • Keep any power cord away from any heated surfaces. • Use only extension cords with a 3prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-Marketing (220-240V, 50-60Hz). • Keep the extension cord connection dry and off the ground.
  • Page 10 SAFETY WARNINGS CARBON MONOXIDE (“the silent killer”) Carbon monoxide is a colourless, odourless, tasteless gas produced by burning gas, wood, propane, charcoal, or other fuel. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood oxygen levels can result in headaches, dizziness, weakness, nausea, vomiting, sleepiness, confusion, loss of consciousness or death.

  • Page 11: Pellet Grill System

    PELLET GRILL SYSTEM HOPPER LARGE COOKING AREA The large cooking are will hold plenty of food The large capacity hopper with rear-access for all your guests. The top warming rack can pellet cleanout and safety guard can hold up to be removed to accommodate larger pieces of 10kg of pellets –...

  • Page 12: Parts List

    PARTS LIST Cord attached...
  • Page 13 PARTS LIST...
  • Page 14 PARTS LIST Tools Needed Hardware package list ×32 ×2 ×32 ×32 ×2 ×2 ×2...

  • Page 15: Assembly Instructions

    Assembly Instructions ASSEMBLY STEPS A×6 B×6 C×6 A×4 B×4 C×4...
  • Page 16 Assembly Instructions ASSEMBLY STEPS A×6 B×6 C×6 A×4 B×4 C×4...
  • Page 17 Assembly Instructions ASSEMBLY STEPS D×2 E×2 F×2...
  • Page 18 Assembly Instructions ASSEMBLY STEPS A×4 B×4 C×4...
  • Page 19 Assembly Instructions ASSEMBLY STEPS A×2 B×2 C×2 A×6 B×6 C×6...
  • Page 20 Assembly Instructions ASSEMBLY STEPS G×2 Firepot...
  • Page 21 Assembly Instructions ASSEMBLY STEPS...
  • Page 22 Assembly Instructions ASSEMBLY STEPS...

  • Page 23: Operating Instructions

    OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. With today’s lifestyle of striving to eat healthy and nutritious foods, one factor to consider is the importance of reducing fat intake. One of the best ways to cut down on fat in your diet is to use a low-fat method of cooking, such as grilling.
  • Page 24 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. • Avoid lifting the lid any more than necessary. Cold gusts of wind can completely cool your grill temperature. Be flexible with your serving time; add extra cooking time each time you open the lid.
  • Page 25 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. GRILL TEMPERATURERANGES Temperature readouts on the control board may not exactly match the thermometer. All temperatures listed below are approximate and are affected by the following factors: outside ambient temperature, the amount and direction of wind, the quality of pellet fuel being used, the lid being opened, and the quantity of food being cooked.
  • Page 26 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. UNDERSTANDING THE PROBE Located inside the main barrel is the temperature probe. It is a small, vertical piece of stainless steel. The temperature probe measures the internal temperature of the unit. When the temperature is adjusted on the Control Board, the temperature probe will read the actual temperature inside the unit and adjust to the desired temperature.
  • Page 27 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. FIRST TIME STARTUP INSTRUCTIONS / SEASONING Fig 1 Remove all packaging materials from the grill. 2. Open the grill to make sure the warming rack, cooking grids, flame broiler and grease drip tray are installed properly inside the firebox.
  • Page 28 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. CHANGING PELLETS Fig 3 When you want to change the pellet flavour for your next gathering, or purge the hopper for a thorough maintenance, follow the instructions below: From the back of your grill, place a container underneath the hopper.
  • Page 29 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. EVERY TIME YOU COOK Follow the steps every time you operate your Oakford pellet grill: Make sure the hopper is filled with enough pellets. Refer to the fuel rate on the hopper for recommended pellet quantity.
  • Page 30 OPERATING INSTRUCTIONS CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. TURNING OFF YOUR GIRLL When your cooking is done, your grill must be properly turned off to clear the auger and burn pot of any remaining pellets and ashes. Use this technique to properly turn off your grill after each use.

  • Page 31: Controller Feature

    CONTROLLER FEATURE CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. LCD DASHBOARD This LCD dashboard is your buzzer for feedback and alarms. It allows you to visually see the grill temperature, cooking mode, timer, meat probe temperature and Wi-Fi/Bluetooth status. It will also show error codes when the grill detects any errors.
  • Page 32 CONTROLLER FEATURE CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. TEMPERATURE UNIT Press once to switch temperature unit between Celsius and Fahrenheit. START / END After controller is turned on, the icon will lighten. Press it to start cooking. will be off and the default grill setting temperature will be 182°C / 360°F.
  • Page 33 CONTROLLER FEATURE CAUTION: DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING. PRIME Press it to run the auger manually. Prime button will start blinking and the auger will run for 30 seconds. Once done, the auger motor will stop and the Prime button will stop blinking. Repeat this process until the firepot is filled with wood pellets to start the cooking process.

  • Page 34: Care And Maintenance

    CARE AND MAINTENANCE CAUTION! MAKE SURE THAT THE GRILL IS COMPLETELY COOL AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORMING ANY CLEANING OR MAINTENANCE INTERIOR COOKING GRATES • After the grill has cooled slightly, scrub both sides of the cooking grates with a wire-bristled grill brush •...
  • Page 35 CARE AND MAINTENANCE CAUTION! MAKE SURE THAT THE GRILL IS COMPLETELY COOL AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORMING ANY CLEANING OR MAINTENANCE EXTERIOR COATED AND PLASTIC SURFACES • After the grill has completely cooled, exterior surfaces can be wiped down with a mild mixture of soap and water.
  • Page 36 ELECTRICAL WIRE DIAGRAM The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit CS - Electrical requirements 50-60Hz, 250W 220-230V, 15AMP,...

  • Page 37: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM SOLUTION Unplug the grill and wait for it to cool down. Remove the safety guard inside the hopper by removing the 4 screws. Using a screwdriver or a stick, sliding the auger back The auger jams and forth in-line with the auger tube to break the jam loose.
  • Page 38 TROUBLESHOOTING GUIDE ERROR CODES CODE DESCRIPTION SOLUTION This error will occur when the RTD has lost Grill sensor connection or RTD has died entirely and need to failure be replaced. This error will occur when the grill fails to ignite within the expected time.

  • Page 39: Warranty

    The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and/or freight pre-paid by the consumer, for review and examination. Nexgrill obligation is limited to repair, replacement, or depreciated value, at the option of Nexgrill.
  • Page 40 THANK YOU. You are now a Nexgrill manual pro! Get out there and enjoy making your grilling experience even better. Questions, problems, missing parts? Before returning to your retailer, call our Customer Service Department at Tel: +27 87 537 2676, 8 a.m. - 5 p.m., CAT, Monday-Friday.
