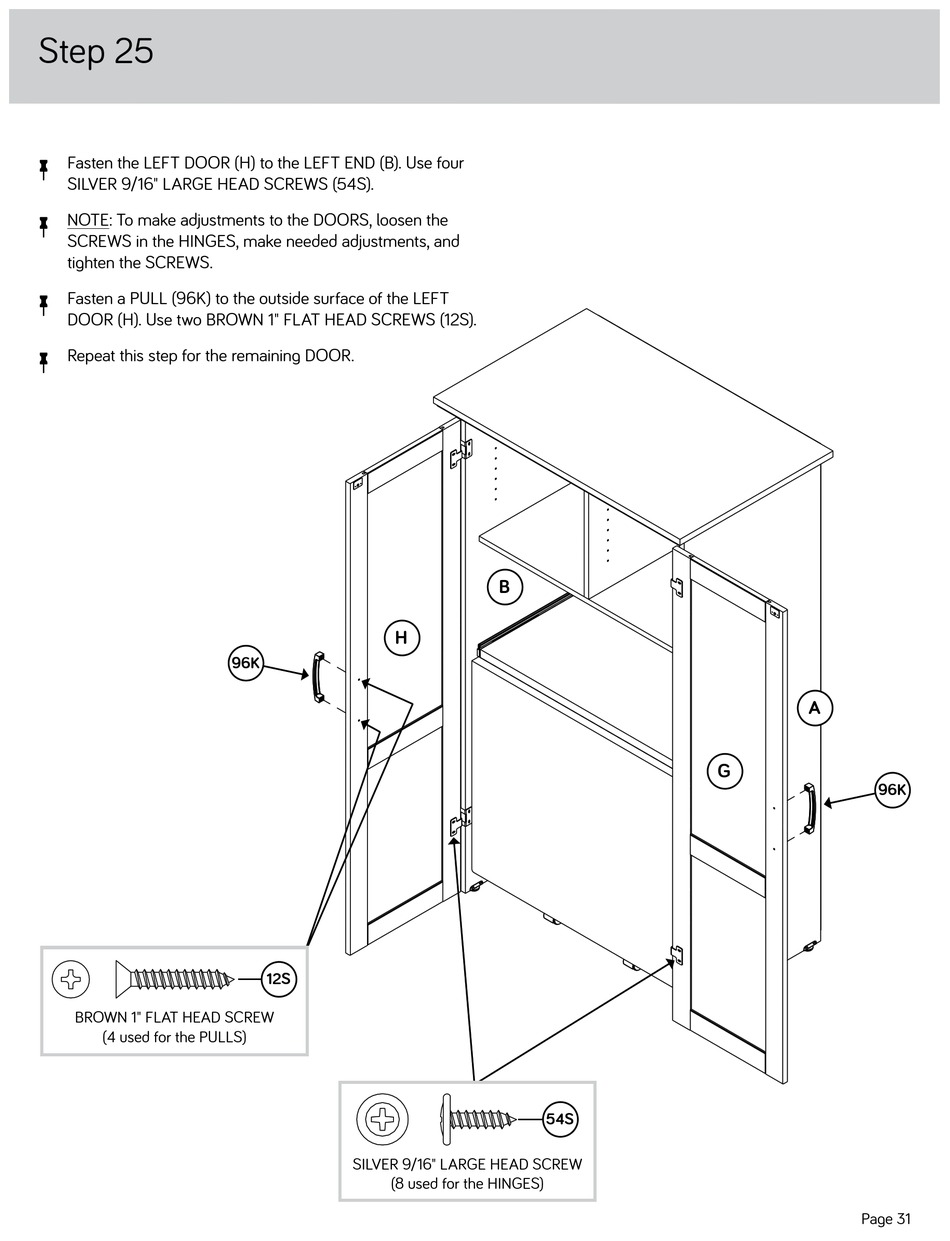

Step 25
å
Fasten the LEFT DOOR (H) to the LEFT END (B). Use four
SILVER 9/16" LARGE HEAD SCREWS (54S).
å
NOTE: To make adjustments to the DOORS, loosen the
SCREWS in the HINGES, make needed adjustments, and
tighten the SCREWS.
å
Fasten a PULL (96K) to the outside surface of the LEFT
DOOR (H). Use two BROWN 1" FLAT HEAD SCREWS (12S).
å
Repeat this step for the remaining DOOR.
BROWN 1" FLAT HEAD SCREW
(4 used for the PULLS)
H
96K
12S
SILVER 9/16" LARGE HEAD SCREW
(8 used for the HINGES)
B
54S
A
G
96K
