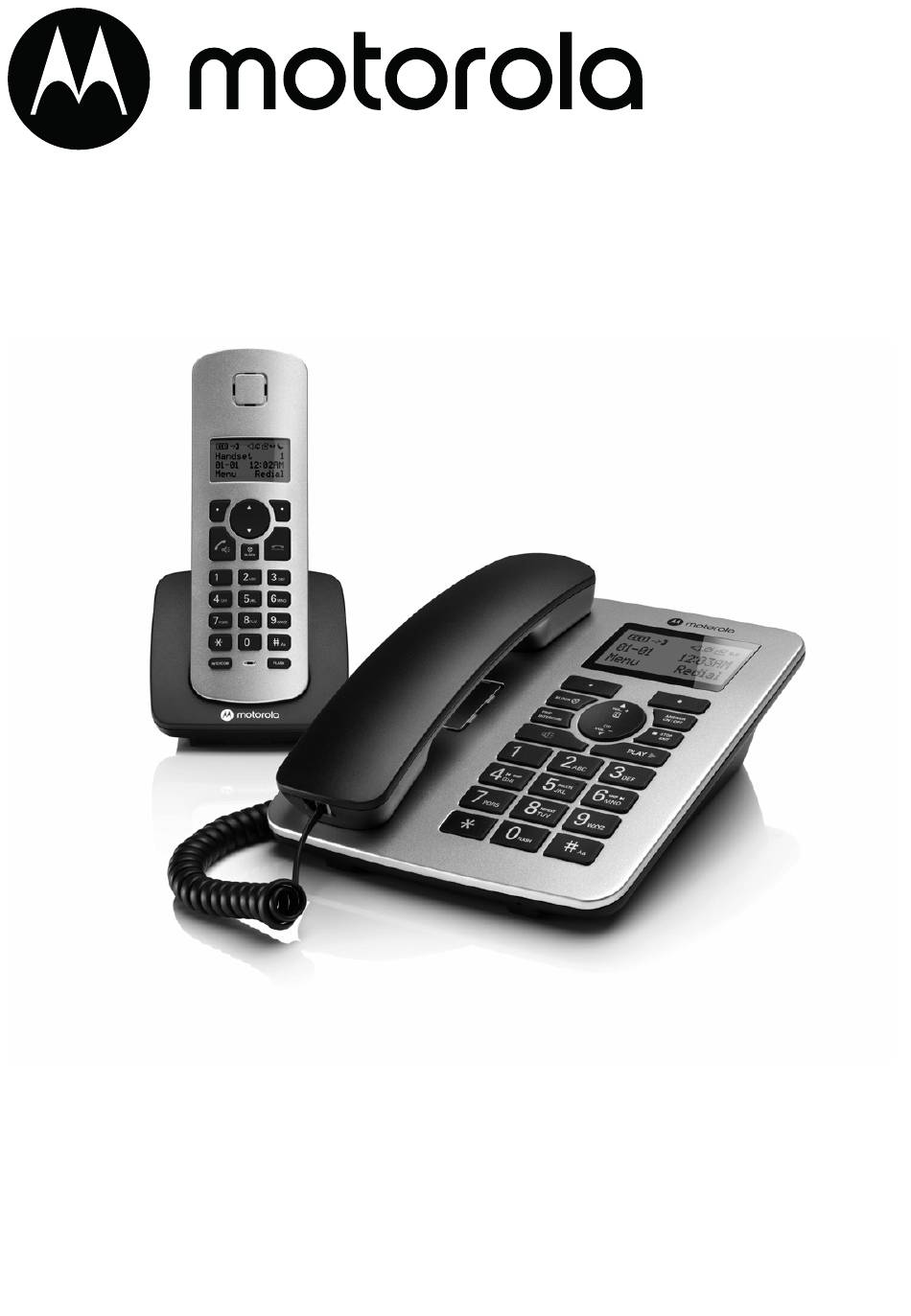

- Page 1 C42 CORDED TELEPHONE AND DIGITAL CORDLESS HANDSET WITH ANSWERING MACHINE For: C4201, C4202, C4203 and C4204 Handset: Motorola C42-HS Base: Motorola C42-B Charger: Motorola C42-C Warning: Charge the handset for 16 hours before use.
- Page 2 Safety information Important This equipment is not designed to make emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in the US. To reduce the risk of fire, use only the supplied AC power adaptor.
- Page 3 • The product exhibits a distinct change in performance. Installation Guidelines • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. • Do not install this product near a bath tub, sink, or shower. •...
- Page 4 Need help? If you have any problems setting up or using your C42, please contact Customer Services on 1-833-468-1468. Alternatively, you may find the answer in the ‘Help’ section at the back of this guide.
- Page 5 AC Power adaptor for the charger • AC Power adaptor for the base • Telephone line cord If you have purchased an C42 multiple pack you will also have the following additional items: • Cordless handset & charger • 2 x rechargeable Ni-MH battery cells •...
-
Page 6: Table Of Contents
Getting started ..............10 Getting to know your phone ........14 Using the phone ..............21 Calls ........................21 3.1.1 Make a call ..................21 3.1.2 Preparatory dialing ................21 3.1.3 Quickdial call ..................21 3.1.4 Call from the Phonebook, Redial or Calls list ......21 3.1.5 End a call .....................21 3.1.6... - Page 7 Call block ......................28 6.1.1 Switch anonymous call on/off ...........28 6.1.2 Block list .....................28 Area code ......................29 Flash time ......................29 Dial mode ......................29 Switch Auto clock on / off ................29 Change the PIN ....................29 Deregister a handset..................30 Restore default settings ................30 Default settings .....................
- Page 8 9.1.5 End a call ....................37 9.1.6 Receive a call ..................37 Adjust the earpiece / hands-free volume ..........37 Mute ........................37 Intercom ......................38 9.4.1 Make an internal call ..............38 9.4.2 Receive an internal call ..............38 9.4.3 Transfer a call ..................38 9.4.4 3-way conference call ..............39 Hands-free speakerphone ................39 9.5.1 Make a hands-free call ..............39...
- Page 9 12.1 Call block ......................46 12.1.1 Switch anonymous call on/off ..........46 12.1.2 Block list .................... 46 12.2 Area code ......................47 12.3 Flash time ......................47 12.4 Dial mode ......................47 12.6 Change the PIN ....................48 12.7 Registration ...................... 48 12.7.1 Register a handset .................
-
Page 10: Getting Started
Important Do not place your C42 in the bathroom or other humid areas. Place your C42 corded base within reach of the AC power outlet and telephone wall jack. The socket-outlet should be installed near the equipment and should be easily accessible. - Page 11 Connecting the corded base and handset Plug the telephone line cord into the socket marked on the rear of the base. 2. Plug the AC power jack into the socket marked on the rear of the base and plug the AC adaptor into the AC power outlet. Switch on the AC power.
- Page 12 Important Warning! Use only the approved rechargeable Ni-MH battery cells (2 x AAA Ni-MH 550mAh rechargeable batteries) supplied with your C42. Battery low warning flashes on the display and there is a warning beep every 2 minutes during a call, recharge the handset before using it again.
- Page 13 August 2021. Only the last two digits of the year are adjustable. Press the left key. 4. Enter the time (HH:MM) e.g. 04:30 and press to select press the left key to confirm. 5. Press to return to standby. Your C42 is now ready for use. Getting started...
-
Page 14: Getting To Know Your Phone
Getting to know your phone Overview of your handset A Earpiece B Display C Menu / OK Press to enter the main menu. Select the option displayed on screen. Confirm a menu option. D Talk / Hands-free Press to make and receive calls. Press to switch hands-free on or off during a call. - Page 15 During a call, press to switch from pulse dialing to tone dialing. G Intercom Press to make internal calls and transfer calls to the corded base or other C42 handsets registered to the base. H Phonebook / Scroll Up / Volume up Press to open the phonebook list.
- Page 16 Overview of your corded handset A Handset Earpiece To listen to your caller. B Handset Mic To speak to your caller. C Curly cord socket To plug in your curly cord. Getting to know your phone...
- Page 17 Press to find a lost handset. Press to make internal calls and transfer calls to the corded base or other C42 handsets registered to the base. Press and hold for 5 seconds to register the handset to the base. D Talk / Hands-free Press to make and receive calls in hands-free mode.
- Page 18 When dialing or storing a number, press and hold to enter a pause (P). Navigating the corded base menu Your C42 has an easy to use system on the cordless handset and corded base. When the base is in standby:...
- Page 19 Base menu map Phonebook Flash time Dial mode View Auto clock Add new Edit Change PIN Deregister Delete Delete all Reset Personal set Answ. machine On/off Sounds • Ring volume Play all Record memo • Key tone Language Delete all Advanced set Outgoing msg.
- Page 20 Handset menu map Advanced set Phonebook Call block View • Unknown call Add new Edit • Block list Area code Delete Delete all Flash time Personal set Dial mode Auto clock Sounds • Ring volume Change PIN Register • Ring tones •...
-
Page 21: Using The Phone
Using your corded base Using the phone Calls 3.1.1 Make a call Lift the corded handset and dial the number. 3.1.2 Preparatory dialing Dial the number first. If you make a mistake, press the right key to delete the last digit. 2. -
Page 22: Intercom
Intercom 3.4.1 Make an internal call You can make internal calls between the base and any cordless handset registered to the base. Press on the base. 2. Scroll to select the handset to be called and press the left key to confirm. -
Page 23: Hands-Free Speakerphone
Hands-free speakerphone To talk to the caller without holding the handset and for other people in the room to listen to the conversation over the loudspeaker, simply use the hands- free function. 3.5.1 Make a hands-free call Dial the number and then press K on the base, you will hear the call over the base loudspeaker. -
Page 24: Delete An Entry
3.6.3 Delete an entry Press the right key to open the Redial list. 2. Scroll to the entry you want. 3. Press the left key, if the phone number is stored in the phonebook the display shows Delete, if not scroll to Delete. -
Page 25: Phonebook
Phonebook You can store up to 100 names and numbers in the corded base. Names can be up to 16 characters long and numbers up to 24 digits. The base and handset share the phonebook. Store a number Press the left key, the display shows Phonebook. -
Page 26: Delete An Entry
Delete an entry key, the display shows Phonebook. Press the left 2. Press the left key, scroll to Delete. 3. Press the left key, scroll to the entry you want to delete. key, the display shows Confirm?. 4. Press the left 5. -
Page 27: Personal Settings
Personal settings Sounds 5.1.1 Ring volume You can adjust the ringer volume and set different volume levels on the corded base. Choose from 5 volume levels or Off. Personal set. Press the left key, scroll 2. Press the left key, Sounds is displayed. -
Page 28: Advanced Settings
Advanced settings Call block You can set the phone so that when certain phone numbers call the phone does not ring. For this feature to work, you must subscribe to Caller ID service from your network operator. A subscription fee may be payable. Call block You can go to by pressing the dedicated... -
Page 29: Area Code
If you want to change/delete the block number, follow the first 4 steps above. Then scroll to the slot where the number is stored and press the left key. Delete the number by pressing the right key. Then either press the left to save no number or enter the new number. -
Page 30: Deregister A Handset
The handset is deregistered. Restore default settings You can restore your C42 to its default (original) settings. All the handsets that are registered to the base will be retained. Important Resetting your phone will restore all handset and base settings to its default settings but Redial, Calls lists and Phonebook numbers will be retained. -
Page 31: Caller Id And The Calls List
Caller ID and the Calls list Caller ID To use Caller ID, you must first subscribe to the service from your network provider. A subscription fee may be payable. If you have subscribed to a Caller ID service, you will be able to see your caller’s number on your base (provided it is not withheld) prior to answering the call. -
Page 32: View The Calls List
7.2.1 View the Calls list Press to open the Calls list. 2. Scroll to the entry you want. 3. Press the left key, the display shows View. 4. Press the left key to view the call name and time and date of the call, press the left key to switch between the name and number. -
Page 33: Delete The Entire Calls List
7.2.6 Delete the entire Calls list Press to open the Calls list. key, the display shows View. 2. Press the left 3. Scroll Delete all and press the left key. The display shows Confirm?. 4. Press the left key to confirm or right key to cancel. -
Page 34: Using Your Answering Machine
Using your Answering Machine The phone can digitally record up to 25 minutes of messages. The answering machine can be operated from: • the base, see below. • the handset, see page 53. • remotely, from any other DTMF telephone, see page 36. Via the base Switch the answering machine on / off Press Y. -
Page 35: Outgoing Message
Outgoing message This is the message your callers hear on the answer machine. There are 2 pre- recorded outgoing messages, or you can record your own. 8.5.1 Record also The pre-set Record also message, that allows your caller to leave a message, is ‘Hello, your call cannot be taken at this moment, so please leave your message after the tone’. -
Page 36: Remote Access
Remote access You can operate your answering machine from any DTMF phone by calling your product and entering a 4 digit security PIN code. Dial your telephone number. When you hear your outgoing message, press *. 2. Enter your 4-digit PIN (default setting 0000) you will hear a confirmation beep. -
Page 37: Using Your Cordless Handset
Using your cordless handset Using the phone Calls 9.1.1 Make a call Press 2. Dial the number. 9.1.2 Preparatory dialing Dial the number first. If you make a mistake, press the right key to delete the last digit. 2. Press to dial. -
Page 38: Intercom
Intercom 9.4.1 Make an internal call You can make internal calls between the base and cordless handset, or if you have more than one handset registered to the base, you can make internal calls between two handsets. Press on the cordless handset. •... -
Page 39: 3-Way Conference Call
9.4.4 3-way conference call You can hold a 3-way conference call between 2 internal callers and 1 external caller. During a call at the cordless handset with an external caller: Press on the cordless handset to put the external caller on hold. •... -
Page 40: Copy A Redial List Number To The Phonebook
2. Scroll to the entry you want. 3. Press to dial the displayed entry or press to return to standby. Note If the called number exactly matches an entry stored in the phonebook, the name is displayed. 9.6.2 Copy a Redial list number to the phonebook Press the right key to open the Redial list. -
Page 41: Phonebook
Phonebook You can store up to 100 names and numbers in the corded base. Names can be up to 16 characters long and numbers up to 24 digits. The base and handset share the phonebook. 10.1 Store a number Press the left key, the display shows Phonebook. -
Page 42: Delete An Entry
10.4 Delete an entry key, the display shows Phonebook. Press the left 2. Press the left key, scroll to Delete. 3. Press the left key, scroll to the entry you want to delete. key, the display shows Confirm?. 4. Press the left 5. -
Page 43: Personal Settings
Personal settings 11.1 Sounds 11.1.1 Ring volume You can adjust the ringer volume and set different volume levels. Choose from 5 volume levels or Off. Personal set. Press the left key, scroll 2. Press the left key, Sounds is displayed. Ring volume 3. -
Page 44: Key Tones On/Off
11.2 Handset name If you are using more than one cordless handset with the C42 base, you can set a personalized name for each handset to easily distinguish between them. A name can be up to 14 characters long. -
Page 45: Setting The Date And Time
11.3 Setting the date and time If you have subscribed to Caller ID service, the date and time will be set on all your handsets whenever a call is received. You can also manually set the date and time on the individual handsets. Press the left key, scroll Personal set. -
Page 46: Advanced Settings
Advanced settings 12.1 Call block You can set the phone so that when certain phone numbers call, the phone does not ring. For this feature to work, you must subscribe to Caller ID service from your network operator. A subscription fee may be payable. Call block You can go to through the handset menu as described below, or by... -
Page 47: Area Code
Note When you are storing a phone number in the Block list, you will need to store the full number including the dialing code for the number to be blocked. If you want to change/delete the block number, follow the first 4 steps above. Then scroll to the slot where the number is stored and press the left key. -
Page 48: Change The Pin
12.6 Change the PIN You can change the PIN using for registration or deregistration. Press the left key, scroll to Advanced set. Change PIN. 2. Press the left key, scroll New PIN 3. Press the left key, is displayed. 4. Enter the PIN and press the left key. -
Page 49: Restore Default Settings
12.8 Restore default settings You can restore your C42 to its default (original) settings. All the handsets that are registered to the base will be retained. Important Resetting your phone will restore all handset and base settings to its default settings but Redial, Calls lists and Phonebook numbers will be retained. -
Page 50: Caller Id And The Calls List
Caller ID and the Calls list 13.1 Caller ID To use Caller ID, you must first subscribe to the service from your network provider. A subscription fee may be payable. If you have subscribed to a Caller ID service, you will be able to see your caller’s number on your handset (provided it is not withheld) prior to answering the call. -
Page 51: View The Calls List
13.2.1 View the Calls list Press to open the Calls list. 2. Scroll to the entry you want. 3. Press the left key, the display shows View. 4. Press the left key to view the call name and time and date of the call, press the left key to switch between the name and number. -
Page 52: 13.2.6 Delete The Entire Calls List
13.2.6 Delete the entire Calls list Press to open the Calls list. key, the display shows View. 2. Press the left 3. Scroll Delete all. 4. Press the left key. The display shows Confirm?. 5. Press the left key to confirm or right key to cancel. -
Page 53: Using Your Answering Machine
Using your Answering Machine The phone can digitally record up to 25 minutes of messages. The answering machine can be operated from: • the base, see page 34 • the handset, see below. • remotely, from any other DTMF telephone, see page 55. Via the handset 14.1 Switch the answering machine on / off... -
Page 54: Delete All Messages
14.4 Delete all messages Answ. machine. Press the left key, scroll 2. Press the left key, scroll Delete all. 3. Press the left key, display shows Confirm?. 4. Press the left key to confirm. 14.5 Outgoing message This is the message your callers hear on the answer machine. There are 2 pre-recorded outgoing messages, or you can record your own. -
Page 55: Remote Access
3. Press the left key. The handset will display the current setting. 4. Use to select the number of rings required and press the left to confirm. 14.7 Remote access You can operate your answering machine from any DTMF phone by calling your product and entering a 4 digit security PIN code. -
Page 56: Help
Help on the cordless handset is not scrolling during charge • Bad battery contact – move the handset slightly. • Dirty contact – Clean the battery contact with a cloth moistened with alcohol. • Battery is full – no need to charge. No dialing tone •... - Page 57 Caller ID service does not work • Check your subscription with your network operator. A phonebook entry cannot be stored • The phonebook is full. Delete an entry to free memory. No display • Try recharging the batteries. • Try disconnecting and connecting the base power supply. •...
-
Page 58: Technical Specifications
Technical Specifications RF Frequency Bands 1.92GHz to 1.93GHz (DECT 6.0) RF Transmission Power 0.115 W (maximum) RF Channels 5 Duplex Channels Power Supply for Base DC 7.5V, 0.3A Base Adaptor Power Rating Input: AC 100V to 240V, 50/60Hz Output: DC 7.5V, 0.3A Power Supply for Handset 2x DC 1.2V AAA 550mAh Ni-MH rechargeable batteries... -
Page 59: General Information
Meizhou, Guangdong, P.R. China. (“MZGW”) What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and... - Page 60 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 61 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage.
- Page 62 FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation.
- Page 63 FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). This Product Complies With 47CFR PART 68. The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and technical requirements adopted by ACTA.
- Page 64 FCC Exposure to Radio Frequency (RF) Signals For Cordless Handset This is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
- Page 65 ISEDC Specific Absorption Rate (SAR) information For Cordless Handset SAR tests are conducted using standard operating positions accepted by the ISEDC with device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value.
- Page 66 <This page has been intentionally left blank>...
- Page 67 <This page has been intentionally left blank>...
- Page 68 Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
