Summary of Contents for XTM CFR1010XTM

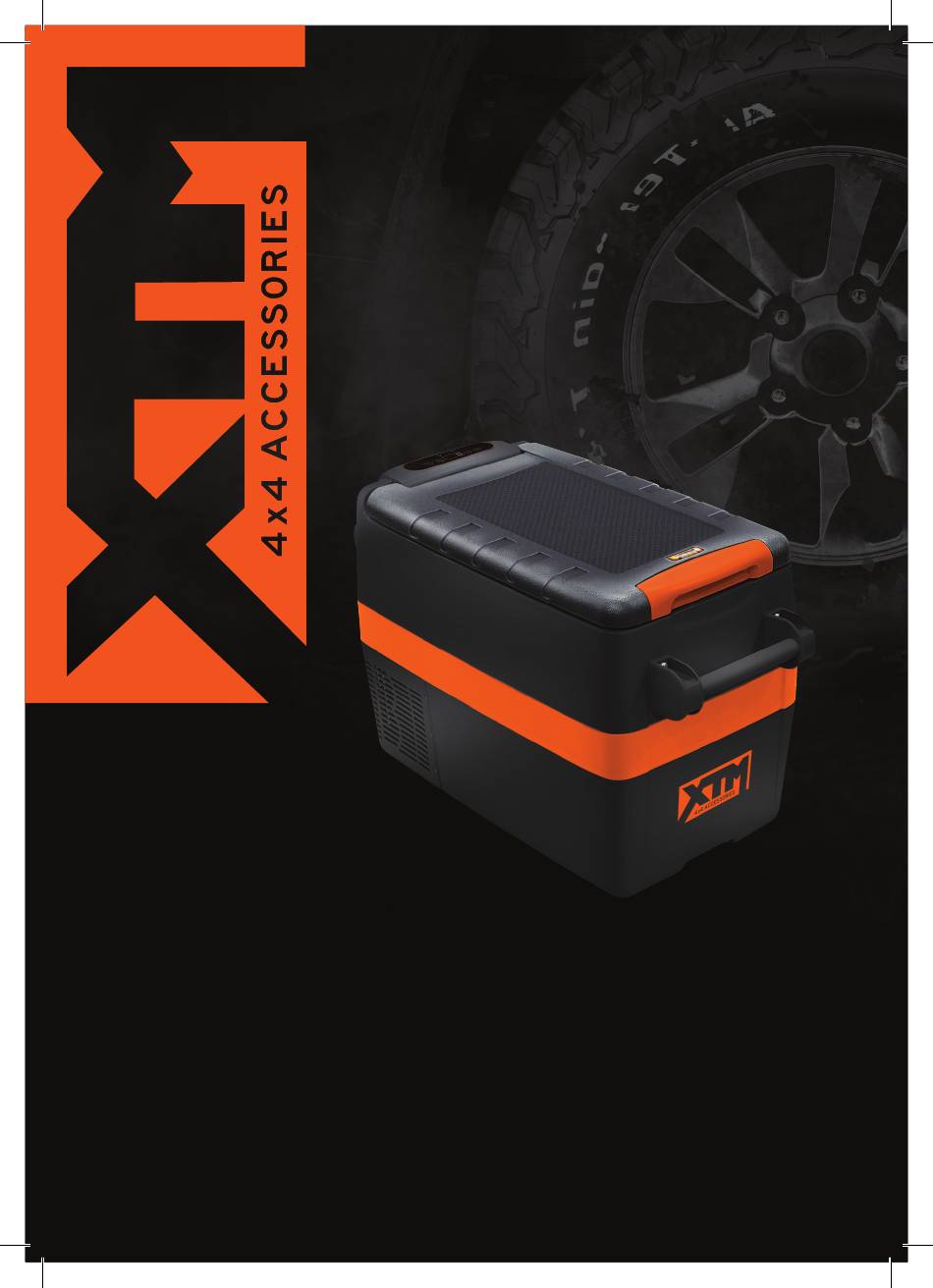

- Page 1 P ORT ABL E F R IDGE/ F R EE Z E R 4 0L CFR1010XTM PLU 621368 04335 07/21...
-
Page 2: Table Of Contents
C ON TE N TS Sec t io n P a g e Contents General Information & Safety Instructions Appliance and Accessories Assembly and Installation Power Requirements Operating your Fridge/Freezer Temperature Control Temperature Control Unit Using with Solar Panel or Generator Tips and Suggestions Trouble Shooting Maintenance... -
Page 3: General Information & Safety Instructions
G EN ERAL INFOR MATION AN D NOTE: Installation of AC power in boats should be carried out by a qualified electrician. S A FETY INSTRU C TION S + Protect the power cord. Do not kink or damage Read this manual thoroughly before first use, even if the power cord. -
Page 4: Appliance And Accessories
AP PLIANCE AND AC C ESSOR IES CABINET LID INCLUDES TRANSIT PROTECTION COVER (NOT SHOWN) CONTROL PANEL CARRY HANDLE POWER PANEL 240V AC ADAPTOR 12V/24V DC POWER CORD... - Page 5 IN STALLATIO N FIG. 1 HANDLE ENDS x 4 After unpacking the fridge/freezer check that no parts are missing. Place the unit in a dry place which is protected against splashing water. Do not place HANDLE TUBE x 2 directly adjacent to sources of heat such as heating, gas ovens, hot water, pipes or directly in the sun.
-
Page 6: Power Requirements
P OWE R REQUIREM EN TS OP E R A T I N G Y OU R F R I D GE The fridge/freezer is designed to operate on DC / F R EE Z ER W I TH 2 40 V A C voltage. - Page 7 1 2 /24V DC POWER R EQUIRE MENTS If your fridge/freezer is cutting out prematurely, it could be due to: The low voltage protection being set too high on the Battery Protection. DC power cord and/or connections are not suitable to carry the required current. Check the power cord and all connections and adjust the Battery Protection on the control panel.
-
Page 8: Temperature Control
TE MPERATURE C ON TR OL When your fridge/freezer is first connected to the DC power input the appliance will automatically switch on and the LCD control panel will display the current cabinet temperature, Battery Protection and Cooling Speed setting as well as the current input voltage. -
Page 9: Temperature Control Unit
TE MPERATURE C ON TR OL UN IT TEMP. DISPLAY SETTINGS BUTTON UP AND DOWN BUTTONS ON/OFF POWER POWER BATTERY PROTECTION When 12V/24V power is connected your fridge will The battery protection levels are set via the control automatically turn ON, however to manually turn panel. -
Page 10: Using With Solar Panel Or Generator
U SING WIT H SOLA R P AN EL OR U S I NG P OR T A B LE G EN ERAT OR GE NE R A T OR S U SING WIT H SOLA R P AN ELS + It is important that the your fridge/freezer is never connected directly to a generator. -
Page 11: Tips And Suggestions
O WN ERS MANU AL ATTENTION: + DO NOT use solvents or agents with sand or acid TIPS AND SUGGESTION S parts for cleaning your fridge/freezer. + DO NOT use brushes, graters or hard sharp tools to clean your fridge/freezer. + Fresh and frozen foods should not be stored right beside each other in the cabinet. - Page 12 ISS UE P O S SI B L E C A U SE Check the unit is switched ON – Press and hold button for 3 seconds. The Fridge/Freezer will not turn on Check the power cord and all connections from the battery to fridge/freezer. Check the fuse at the Power Input Panel.
- Page 13 PA RT NO . C F R 1 01 0XT M MANUFACTURER NO. YCD40 GROSS CAPACITY: LARGE BASKET VOLUME: 21.5L SMALL BIN VOLUME: 6.1L CLIMATIC CATEGORY: RATED VOLTAGE - DC: 12V / 24V DC RATED CURRENT - DC: 4.5A / 2 2A POWER CONSUMPTION: 0.415Kw.h/24h REFRIGERANT:...
- Page 14 Keep your purchase receipt, this will be required to make any claims under the 2 Year warranty. A U ST . 1 3 0 0 1 7 4 8 7 6 CFR1010XTM Manufactured in China for SUPER RETAIL GROUP LIMITED 6 Coulthards Ave, Strathpine.
