Merlin myQ 827AU Quick Start Manual

To reduce the risk of SEVERE INJURY or DEATH:
• DO NOT alter the plug.
• Light is intended for indoor ceiling or wall mount applications ONLY.
NOTE: The Remote Control supplied with your Remote LED Light is preprogrammed by the factory to the button shown in figure 1.
Installation
The myQ Remote LED Light is designed to plug directly into a standard 240V outlet and not permanently wired. Consider installing close to an existing power
®
outlet. Nominal lumens is 1500, avoid directly looking at the lens when illuminated.
NOTE: If installing light on lasterboard and a ceiling joist cannot be located, use wall anchors provided. No pilot hole is required for wall anchors.
1. Drill pilot holes 6-1/8" (15.6 cm) apart if mounting to joist. OR Screw in wall anchors 6-1/8" (15.6 cm) apart if mounting to lasterboard.
2. Determine the length of power cord needed to reach the nearest 240V outlet. Wind any excess cord around cord retainer on the top side of the light base.
Route the cord through the channel so the light mounts flush.
3. Open the light lens.
4. Mount the light with the screws provided.
5. Close the light lens.
6. Plug in the light to the 240V outlet.
NOTE: The LED light is very bright and will blink while programming. DO NOT stare at the light while on a ladder.
Installation
Operation
Once the mains power is turned ON, the light can only be activated using Security+2.0 Remote Controls or the Merlin myQ
Remote Control is supplied with this kit.
If paired with a myQ garage door opener the myQ
®
internal light to boost the illumination of the garage.
NOTE: Wireless Wall Controls will not operate this device.
App Store is a service mark of Apple Inc. Google Play and the Google Play logo are require an additional accessory purchase or subscription fee.
Apple, the Apple logo, iPhone, and iPad are trademarks of Apple Inc.,
6-1/8" (15.6 cm)
Cord Retainer
Channel
Drywall
Anchors
Light Lens
Remote LED Light can also automatically turn ON or OFF in simultaneously with the garage door opener's
®

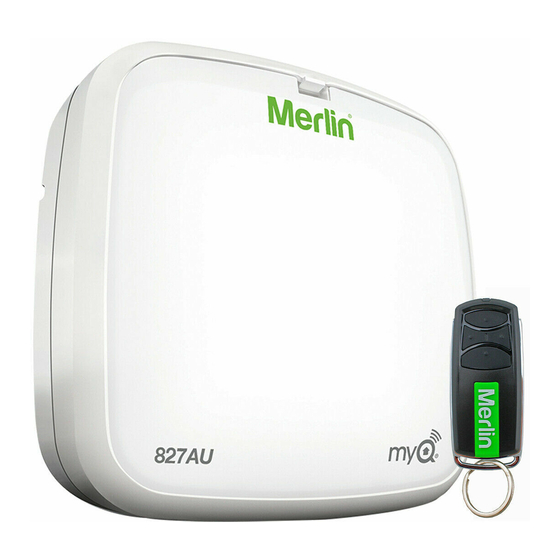

myQ REMOTE LED LIGHT
®
Hardware Provided
Wall Anchor (screw-in) (2)
Figure 1
Channel
WARNING! This product contains a button/coin
cell battery.
The battery is hazardous.
•
Keep new and used batteries away from children.
•
Do not ingest battery. Chemical burn hazard.
•
If the coin cell battery is swallowed or placed
•
Screws
inside any part of the body, it can cause severe or
fatal injuries in 2 hours or less.
If the battery compartment does not close securely, stop using
•
the product and keep away from children.
If you think batteries might have been swallowed or placed
•
inside any part of the body, call the 24-hour Poisons Information
Centre on 13 11 26 in Australia, or the 24-hour National Poisons
Centre on 0800 764 766 in New Zealand, or seek immediate
medical attention.
Dispose of used coin/button cell batteries immediately and
•
safely. Flat batteries can still be dangerous.
Model 827AU
Screw # 6G x 25mm (2)
Pre-
programmed
Button
Internet app. A Security+ 2.0
®
