POWERCUBE User Manual
Case 2: If the normal power of inverter is > 5kW, Mechanical installation shown as follows:
1. Fix the Powercube cabinet to the mounting
position and remove the front cover.
Pass the total positive cable and the total
negative cable ( Power cable- positive1, Power
cable- positive2 and Power cable-negative1,
Power cable-negative2 ) through the
waterproof connector (Interface1,2,5,6)on
the back of the cabinet, and insert the
external CAN cable( Communication cable-to
inverter2 ) into the RJ45 network cable
connector(Interface 4).
Table 3-4 Interface Definition
Item
Name
Power cable- negative
Interface1
waterproof connector
Power cable- negative
Interface 2
waterproof connector
RJ45 network cable
Interface 3
connector
RJ45 network cable
Interface 4
connector
Power cable- positive
Interface 5
waterproof connector
Power cable- positive
Interface 6
waterproof connector
3
1
2
Definition
Reserve
The battery DC output negative pole
Reserve
CAN/RS485 communication interface
(Factory default CAN communication mode)
The battery DC output positive pole
Reserve

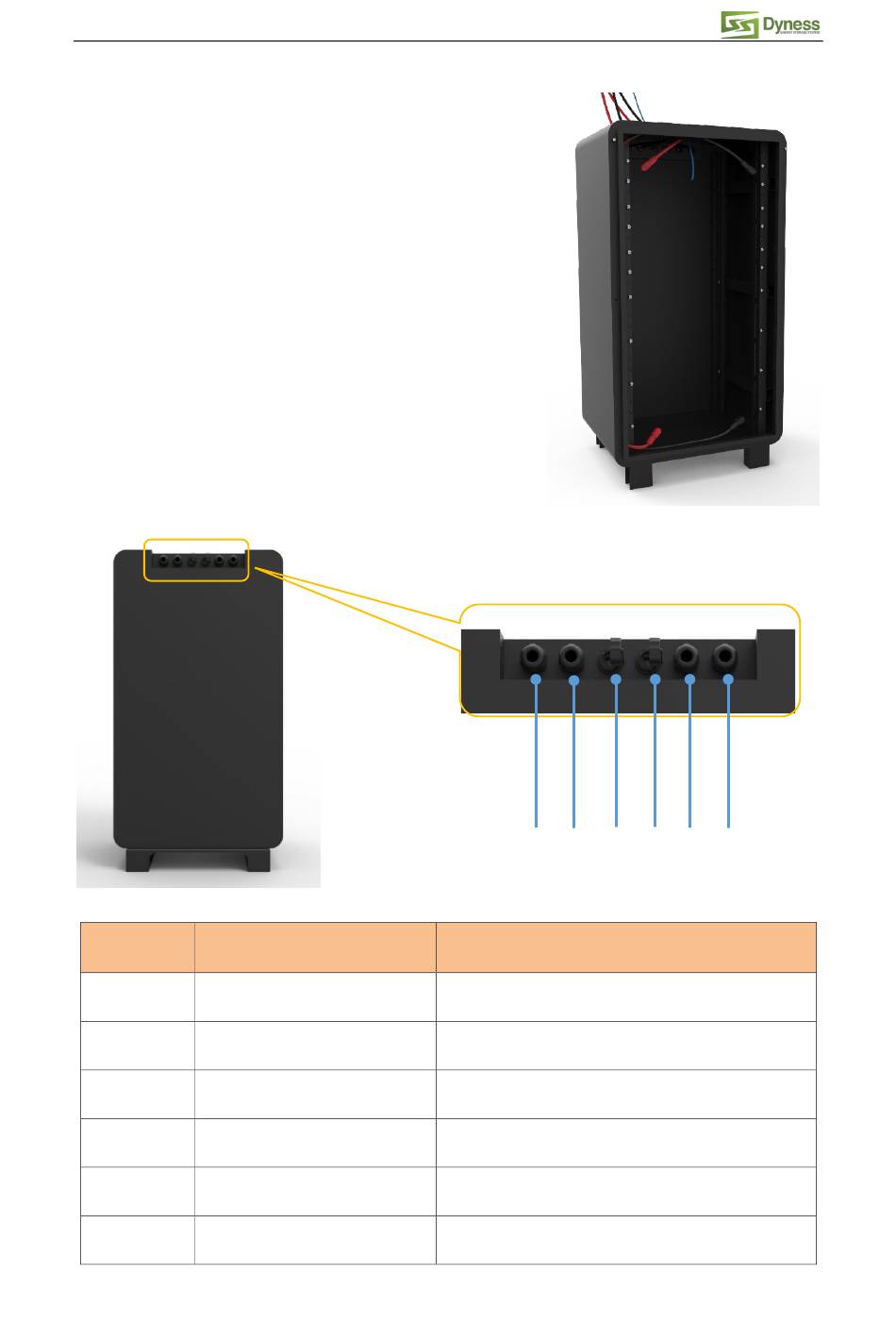

Figure3-4
4
5
6
