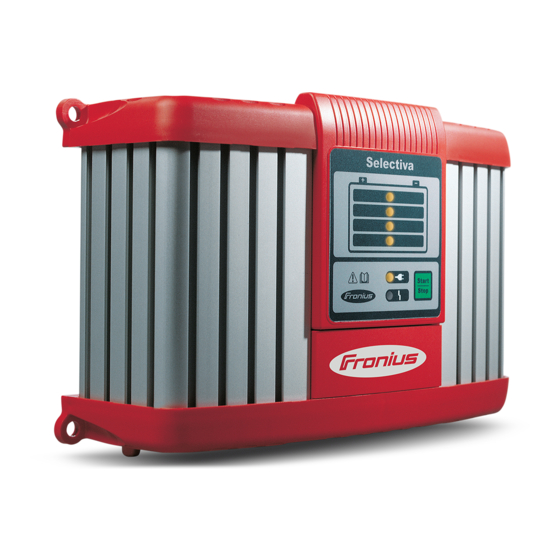

Fronius Selectiva 1020E Operating Instructions Manual

Fronius Selectiva 1020E Operating Instructions Manual

Advertisement

Quick Links

Operating
Instructions
Selectiva 1020E / 1030E / 2010E / 2015E /
2020E / 2032E / 2040E
EN
Operating Instructions
42,0426,0040,EN
009-10052022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Selectiva 1020E and is the answer not in the manual?

Questions and answers

Summary of Contents for Fronius Selectiva 1020E

  • Page 1 Operating Instructions Selectiva 1020E / 1030E / 2010E / 2015E / 2020E / 2032E / 2040E Operating Instructions 42,0426,0040,EN 009-10052022...
  • Page 3: Table Of Contents

    Contents Safety rules General Intended use Environmental conditions Mains connection Dangers from mains current and charging current Danger due to acid, gases and vapours General information regarding the handling of batteries Protecting yourself and others Safety measures in normal operation EMC device classifications EMC measures Data protection...
  • Page 4: Safety Rules

    Safety rules General The device has been manufactured in line with the state of the art and according to recognized safety standards. If used incorrectly or misused, however, it can cause: Serious or fatal injury to the operator or third parties Damage to the device and other material assets belonging to the operating company Inefficient operation of the device...
  • Page 5: Mains Connection

    Mains connec- Devices with a higher rating may affect the energy quality of the mains due to tion their current consumption. This may affect device types in terms of: Connection restrictions, requirements regarding permitted mains impedance Requirements with regard to the minimum short-circuit power requirement at the interface with the public grid see "Technical data"...
  • Page 6: General Information Regarding The Handling Of Batteries

    Battery acid must not get into the eyes or onto the skin or clothes. Wear protect- ive goggles and suitable protective clothing. Rinse any acid splashes thoroughly with clean water and seek medical advice if necessary. General informa- Protect batteries from dirt and mechanical damage. tion regarding Store charged batteries in a cool place.
  • Page 7: Emc Measures

    Devices with emission class B: Satisfy the emissions criteria for residential and industrial areas. This also applies to residential areas in which power is supplied from the public low- voltage grid. EMC device classification according to the rating plate or the technical data. EMC measures In certain cases, even though a device complies with the standard limit values for emissions, it may affect the application area for which it was designed (e.g.
  • Page 8: Markings On The Device

    Copyright Copyright of these Operating Instructions remains with the manufacturer. Text and illustrations were accurate at the time of printing. Fronius reserves the right to make changes. The contents of the Operating Instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you...
  • Page 9: General Information

    General information Principle The main feature of the new Active In- verter Technology is intelligent char- ging. This means that the charging be- haviour adapts itself automatically to the age and state of charge of the bat- tery. This innovation extends the bat- tery life and reduces the amount of maintenance required, while at the same time improving cost-effective-...
  • Page 10 ¡Mantener una ventilación adecuada durante la carga! Interrompere sempre la carica prima di scollegare il cavo di carica! Gas esplosivi. Evitare fiamme libere e scintille. Predisporre una ventilazione adeguata durante la carica! 42,0409,0419 A-4600 Wels www.fronius.com Active Inverter xxxxE Art. Nr.: 4,010,xxx xxxxxxxx EMC Emission ~230V 50/60Hz;xxxW...
  • Page 11: Before Commissioning

    Before commissioning Safety WARNING! Danger from incorrect operation. This can result in severe personal injury and damage to property. ▶ Do not use the functions described here until you have fully read and under- stood the following documents: ▶ Operating Instructions, ▶...
  • Page 12: Safety Strategy - Standard Protection Devices

    Safety strategy - The new chargers are not just characterised by purely functional features. In standard protec- terms of safety, the active inverters are also equipped to the highest standards. tion devices The following safety features come as standard: Reverse polarity protection prevents the battery or charger from being dam- aged or destroyed.
  • Page 13: Control Elements And Connections

    Control elements and connections General Please note: as a result of firmware updates, you may find that there are functions available on your device that are not described in these Operating Instructions, or vice versa. Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way.
  • Page 14: Connections

    Connections Function AC input - mains socket Mains cable safety bow for fitting the mains cable. Connection P2 - I/O port for options on the I/O port. Connection P1 - charger lead socket also for external stop and tem- perature-controlled charging options.
  • Page 15: Fitting The Optional Bracket And Strain-Relief Device For The Charging Lead

    Fitting the op- Please note: tional bracket the torque for all screws is 2.5 Nm and strain-relief (1.84 ft. lb.). device for the charging lead To fit the bracket: Undo the screws (1). Fit bracket (2) using the previously removed screws. To fit the strain-relief device: Undo screw (3).
  • Page 16: Preparations For Security Lock

    Preparations for The security lock is not contained in security lock the scope of supply. A security lock can only be attached to the groove on the housing as shown. to the groove on the housing that is exactly opposite. using spacer M8 DIN 125 or DIN 134, located as shown.
  • Page 17: Installation

    Installation If installing the charger on a firm base, use the drilling template enclosed in the packaging. If the charger is installed in a switch cabinet (or a similar sealed area), then forced-air ventilation must be provided to ensure adequate heat dissipation. There must be a clearance of 10 cm (3.94 in.) all around the charger.
  • Page 18: Charging The Battery

    Charging the battery Starting char- CAUTION! ging Risk of damage if attempting to charge a faulty battery or using the incorrect charging voltage. This can result in damage to property. ▶ Before beginning charging, ensure that the battery to be charged is fully functional and the charging voltage of the device matches the battery voltage.
  • Page 19: Finishing Charging

    Finishing char- WARNING! ging Danger due to ignition of oxyhydrogen caused by sparks generated when the charging plug is disconnected prematurely. This can result in serious injury and damage to property. ▶ Before disconnecting the charging plug, press the Stop/Start button to finish charging.
  • Page 20: Setup Menu

    Setup menu General remarks Select the characteristic type in the Setup menu depending on either the battery to be charged or the requirement as specified in the accompanying characteristic data sheet. Accessing the Please note: Setup menu Do not connect the charging lead to the battery. A characteristic type cannot be selected when the charging plug is connected.
  • Page 21: Troubleshooting

    Troubleshooting Safety WARNING! Risk of electric shock. This can result in serious injuries or death. ▶ Before opening the device: ▶ Unplug the device from the mains. ▶ Disconnect battery. ▶ Put up an easy-to-understand warning sign to stop anybody inadvertently switching it back on again.
  • Page 22: Charging Errors

    Charger switches off during charging: Cause: Ambient temperature too high. Overtemperature protection act- ive. Remedy: Allow device to cool down. Charging will recommence automat- ically once the device has cooled sufficiently. If not, have it checked by a workshop. Charging errors Ready indicator lit, error indicator flashing, SOC indicator 1/2/3/4 flashing: Cause: Timeout in the corresponding charging phase or battery capa-...
  • Page 23: Technical Data

    Technical data Explanation The technical data can be found on the characteristic data sheet enclosed with the charger.
