INSTRUCTION MANUAL

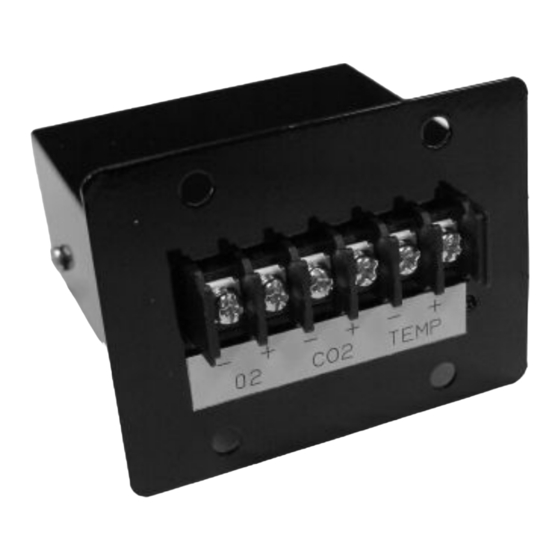

MCO-420MA
Interface Board

Advertisement

loading

Summary of Contents for Sanyo MCO-420MA

  • Page 1 INSTRUCTION MANUAL MCO-420MA Interface Board...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION P. 2 PRECAUTIONS FOR SAFE OPERATION P. 3 COMPONENTS P. 5 APPLICABLE EQUIPMENT P. 5 INSTALLATION P. 6 SPECIFICATIONS P. 8...
  • Page 3: Introduction

    ■ Contact Sanyo sales representative or agent if any page of the manual is lost or page order is incorrect. ■ Contact Sanyo sales representative or agent if any point in this manual is unclear or if there are any inaccuracies.
  • Page 4: Precautions For Safe Operation

    PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with this manual as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person.
  • Page 5 This manual includes the description for the interface board MCO-420MA only. For other information such as the explanation regarding to equipment in which the interface board is to be installed, refer to an instruction manual provided with each equipment.
  • Page 6: Components

    , CO and Temperature data, respectively. 3. 0-100mV input and power supply connector Connector for connecting MCO-420MA with a product from which analog data is acquired. Note: Connecting cable between a product and this connector is enclosed. APPLICABLE EQUIPMENT The interface board MCO-420MA is applicable to equipment listed below:...
  • Page 7: Installation

    Never disassemble, repair, or modify the unit yourself. Any such work carried out by an unauthorized person may result in fire or injury due to a malfunction. Install MCO-420MA to its intended location in the equipment from which analog data is acquired by following the procedure below.
  • Page 8 A. Connector on the back of the MCO-420MA. B. Connector CN7 on the main board. C. Pin TP2 on the main board for 24V power supply. 3. Fix MCO-420MA to its intended location by using enclosed four screws. (Fig. 7) MCO-420MA Fig. 6...
  • Page 9: Specifications

    SPECIFICATIONS Interface board (4-20 mA Transmitter)   Name  Model  MCO-420MA External dimensions  W74 x D63 x H58 (mm) Output terminal  6P screw terminal Output Channel 3 Ch for Temperature, CO and O data Input Voltage Range 0-100mV Output Current Range...
