Craftsman 725 Series Owner's Manual

Briggs & stratton engine power-propelled 22" multi-cut
Hide thumbs Also See for 725 Series:

Advertisement

Quick Links

Owner's Manual
ROTARY LAWN MOWER
725 Series Briggs & Stratton Engine
Power-Propelled
22" Multi-Cut
Model No.
944.364740
CAUTION:
Read and follow all
Safety Rules and In struc tions
before operating this equipment
586601527
Sears Canada, Inc., Toronto, Ontario M5B 2B8
02.20.14 BY
Printed in U.S.A.

Advertisement

loading

Related Manuals for Craftsman 725 Series

Summary of Contents for Craftsman 725 Series

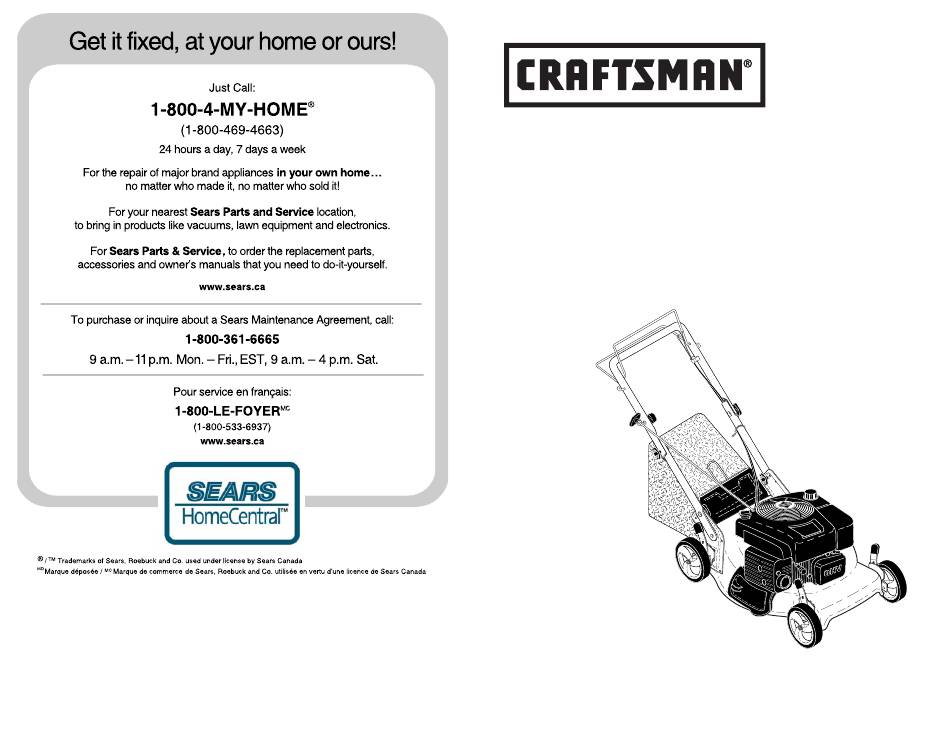

  • Page 1 Owner’s Manual ROTARY LAWN MOWER 725 Series Briggs & Stratton Engine Power-Propelled 22" Multi-Cut Model No. 944.364740 CAUTION: Read and follow all Safety Rules and In struc tions before operating this equipment 586601527 Sears Canada, Inc., Toronto, Ontario M5B 2B8 02.20.14 BY...

  • Page 2: Table Of Contents

    BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 110P02-0003-F4 TABLE OF CONTENTS Safety Rules ......... 2-3 Maintenance ........13-16 Warranty ..........4-5 Service and Adjustments ....17-18 Product Spec i fi ca tions ......5 Storage ..........18-19 Assembly/Pre-Operation ...... 6-7 Troubleshooting ........
  • Page 3 BRIGGS & STRATTON 4-CYCLE ENGINE • Do not operate the machine while under • Allow engine to cool before refueling. MODEL NUMBER 110P02-0003-F4 the infl uence of alcohol or drugs. • Never refuel the machine indoors. • Never operate machine in wet grass. •...

  • Page 4: Warranty

    MODEL NUMBER 110P02-0003-F4 WARRANTY GENERAL: Craftsman products are warranted to be free from defects in materials or workmanship for a specifi c time period as set-out below (the “Warranty Period”). Warranties extend to the original purchaser of a Craftsman product only. Purchases made through an online auction or through any website other than www.sears.ca are...

  • Page 5: Product Specifications

    LIST OF APPLICABLE WARRANTY PERIODS: The following list contains the applicable Warranty Period for your Craftsman product and is based on a combination of the type of product or component and the intended and actual use of the product or component:...

  • Page 6: Assembly/Pre-Operation

    BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 110P02-0003-F4 ASSEMBLY / PRE-OPERATION Read these instructions and this manual Operator MOWING in its entirety before you attempt to as- presence POSITION control bar semble or operate your new lawn mower. IMPORTANT: This lawn mower is shipped LIFT WITHOUT OIL OR GASOLINE in the engine.
  • Page 7 INSTALL STARTER ROPE TO INSTALL ATTACHMENTS BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 110P02-0003-F4 1. Loosen T-knob. Your lawn mower was shipped ready to be 2. Hold control bar against upper handle. used as a mulcher. To convert mower to 3.

  • Page 8: Operation

    CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.364740 PART PART DESCRIPTION DESCRIPTION 586033302 Drive Control Assembly 12000058 E-Ring 7/16 (Includes Cable) 581840401 Cover, Dust, Wheel 197480 O-Ring 191730 Nut, Hex 194185X615 Control Bar, Drive 404845 Pawl, Drive 406557 Belt, Drive 581685301 Wheel &...
  • Page 9 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.364740...
  • Page 10 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.364740 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 50 851084 Screw, Machine, Hex Head 427615X479 Upper Handle Assembly 30 580947303 Grassbag 440385 Cable, Engine Zone Control 31 585054703 Frame, Grass Catcher 3/8-24 x 1-3/8 Grade 8...
  • Page 11 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.364740...
  • Page 12 MOWING TIPS MULCHING MOWING TIPS TROUBLESHOOTING - See appropriate section in manual unless directed CAUTION: Do not use de-thatcher to a Sears Parts & Repair Centre. IMPORTANT: For best performance, blade attachments on your mower. Such keep mower housing free of built-up PROBLEM CAUSE CORRECTION...

  • Page 13: Maintenance Schedule

    TROUBLESHOOTING - See appropriate section in manual unless directed MAINTENANCE to a Sears Parts & Repair Centre. PROBLEM CAUSE CORRECTION BEFORE AFTER EVERY EVERY EVERY BEFORE EACH EACH 25 HOURS Does not start 1. Dirty air fi lter. 1. Clean/replace air fi lter. STORAGE HOURS OR SEASON...

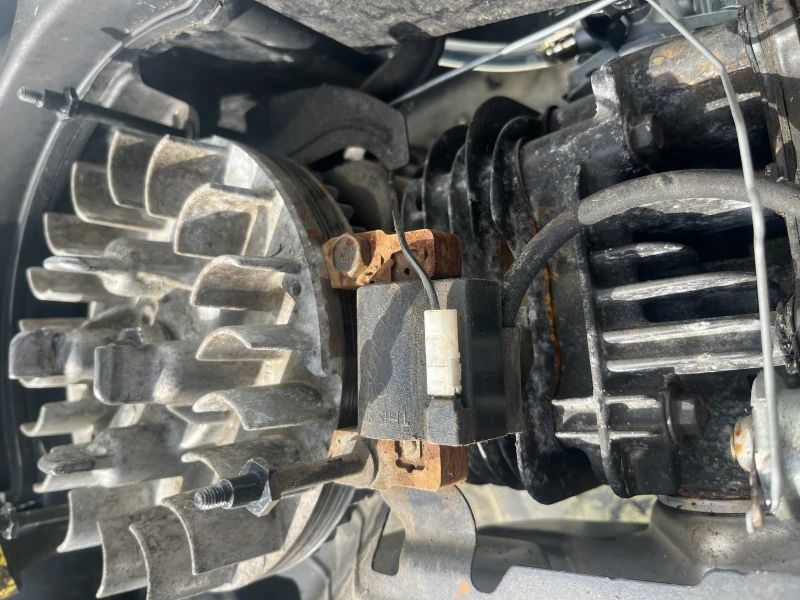

  • Page 14 ENGINE OIL LAWN MOWER 2. Install debris shield. ENGINE 3. Position blade on the blade adapter. Always observe safety rules when per- Drain oil (with engine warm) and replace FUEL SYS TEM IMPORTANT: To ensure proper as sem bly, form ing any main te nance. with clean engine oil.
  • Page 15 CARBURETOR ENGINE Check the crankcase oil level before starting the engine and after each fi ve (5) Your carburetor is not adjustable. ENGINE SPEED hours of continuous use. Tighten oil plug IMPORTANT: Never tamper with the Your engine speed has been factory set. securely each time you check the oil level.

  • Page 16: Service And Adjustments

    AIR FILTER CLEANING SERVICE AND ADJUSTMENTS Your engine will not run properly using IMPORTANT: For best performance, a dirty air fi lter. Replace paper cartridge keep mower housing free of built-grass WARNING: To avoid serious injury, 8. Return mower to upright po si tion. every 100 hours of operation or every and trash.
