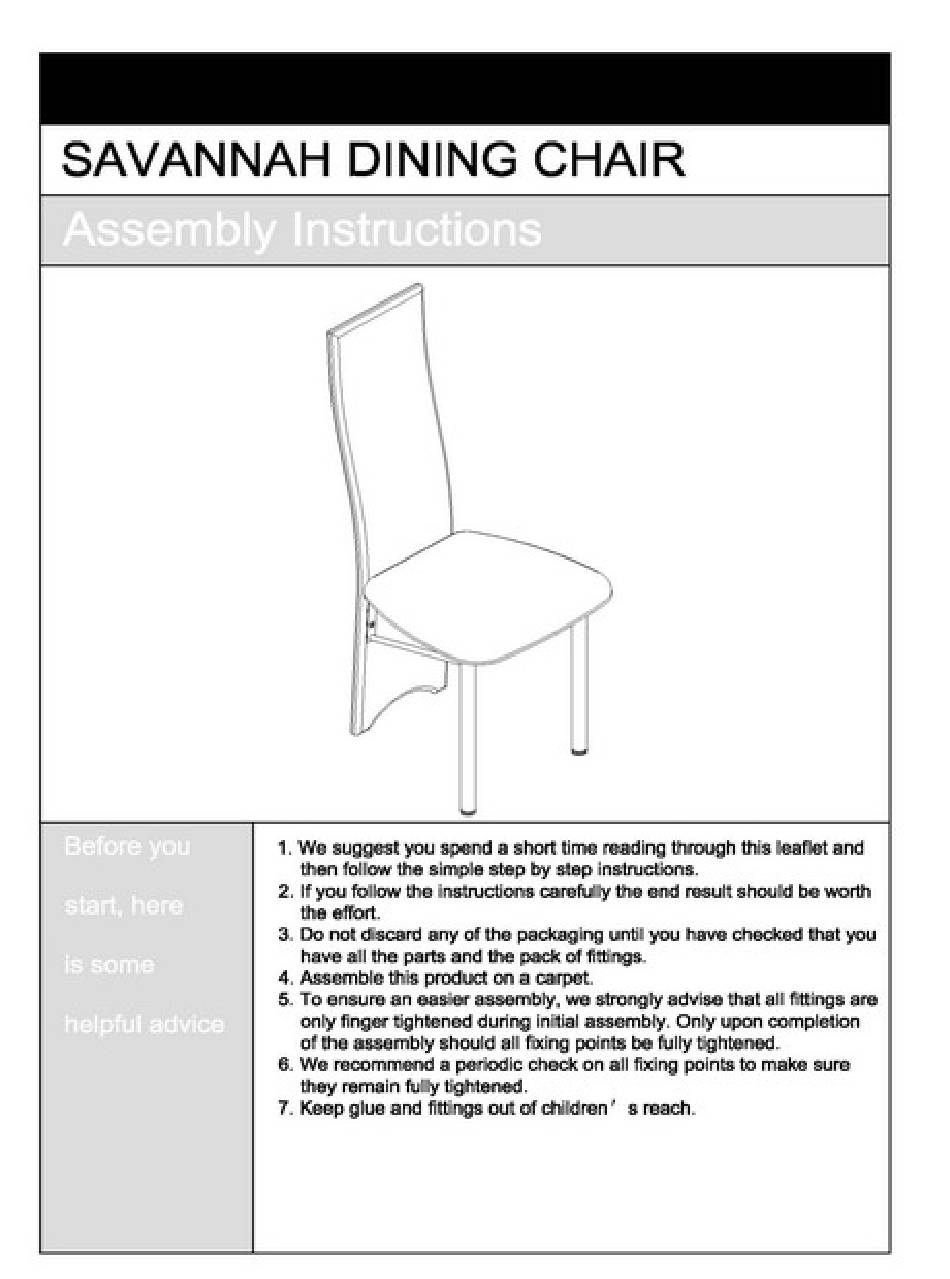

- Page 6 Savannah Dining Chair Assembly Instructions 602/5326 – Please keep for future reference 602/3988 Dimensions Width - 37.5cm Depth - 54cm Height - 106.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 10/12/09...
- Page 7 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Assemble the item as close • We do not recommend the components and tools listed on to its final position (in the same use of power pages 2 and 3.
-
Page 8: Components - Parts
Components - Parts Please check you have all the parts listed below Left leg frame x 2 Right leg frame x 2 Stretcher x 2 (44 x 37cm) (44 x 37cm) (30 x 2.6cm) Back 33cm Front Front 44.5cm 5 Seat pad x 2 Backrest x 2 (106 x 27cm) (44.5 x 44cm) - Page 9 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 10 Assembly Instructions Step 1 Attaching legs Assemble stretcher in between left and right leg frames using screws Note: Ensure the arrow label on stretcher facing 'up' as shown. Note: Do not fully tighten screws Bottom Step 2 Attaching backrest Place backrest down onto a clean flat surface.
- Page 11 Assembly Instructions Step 3 Attaching seat pad Place seat pad upside down onto a clean flat surface (edge of table top). Align chair frame on top of seat pad and secure using screws Note: Longer wood screws go through stretcher at the front.
